Locking Assemblies RfN 7014 | RINGFEDER®

This locking device, dual tapered similar the 7012 type, is designed to transmit extremely high torques. Unlike the 7012 style, the 7014 device offers good centering ability due to it’s relatively long design, making a pre-centering hub section unnecessary. It’s design also provides for a different inside diameter to outside diameter ration, thereby not interchangeable with the other RINGFEDER® types. Available in sizes from 70 to 300 mm.

Download
Request
Calculation

Technical Data & CAD Models

Download of CAD data is available to you after login via your personal user account. You do not have a user account yet? Please register here.

CAD
d
mm
D
mm
L
mm
L1
mm
L3
mm
T
Nm
pW
N/mm2
pN
N/mm2
DG
mm
TA
Nm
DN min bei Rp0,2 400 N/mm2
mm
Tmax
Nm
60 100 60 50 44 4130 208 125 10 84 139 5120
70 120 74  62  56 6850 200 117 12 145 154 8068
80 130 74  62  56 11650 263 162 12 145 189 13813
90 140 74  62  56 13000 234 150 12 145 196 15505
100 160 94  80  74 19700 213 133 14 230 217 23620
110 170 94  80  74 26600 242 157 14 230 248 32045
120 180 94  80  74 28900 222 148 14 230 255 34968
130 190 94  80  74 31200 205 140 14 230 263 37903
140 200 94  80  74 40200 227 159 14 230 294 49017
150 210 94  80  74 42900 212 151 14 230 301 52489
160 230 110  94  88 64000 227 158 16 355 339 78558
170 240 110  94  88 67800 214 152 16 355 347 83477
180 250 110  94  88 83000 235 169 16 355 384 102483
190 260 110  94  88 88000 223 163 16 355 390 108947
200 270 110  94  88 105000 242 179 16 355 431 130330
220 300 134  116  110 123000 189 139 18 485 420 153404
240 320 134  116  110 153000 198 148 18 485 463 191651
260 340 134  116  110 186000 205 157 18 485 506 233920
280 370 156  136  130 230000 192 145 20 690 533 290328
300 390 156  136  130 245000 179 138 20 690 548 310335
CAD d
inch 		D
inch 		L
inch 		L1
inch 		L3
inch 		T
ft-lbs 		pW
psi 		pN
psi 		DG
mm 		TA
ft-lbs 		DN min bei Rp0,2 400 N/mm2
inch 		Tmax
ft-lbs
  2.362 3.937 2.362 1.969 1.732 3046 30190 18143 M 10 62 5.472 3776
  2.756 4.724 2.913 2.441 2.205 5052 28986 16957 M 12 107 6.063 5951
  3.150 5.118 2.913 2.441 2.205 8593 38116 23478 M 12 107 7.441 10188
  3.543 5.512 2.913 2.441 2.205 9588 33913 21739 M 12 107 7.717 11436
  3.937 6.299 3.701 3.150 2.913 14530 30870 19275 M 14 170 8.543 17421
  4.331 6.693 3.701 3.150 2.913 19619 35072 22754 M 14 170 9.764 23635
  4.724 7.087 3.701 3.150 2.913 21316 32174 21449 M 14 170 10.039 25791
  5.118 7.480 3.701 3.150 2.913 23012 29710 20290 M 14 170 10.354 27956
  5.512 7.874 3.701 3.150 2.913 29650 32899 23043 M 14 170 11.575 36154
  5.906 8.268 3.701 3.150 2.913 31642 30725 21884 M 14 170 11.850 38714
  6.299 9.055 4.331 3.701 3.465 47205 32899 22899 M 16 262 13.346 57942
  6.693 9.449 4.331 3.701 3.465 50007 31014 22029 M 16 262 13.661 61570
  7.087 9.843 4.331 3.701 3.465 61218 34058 24493 M 16 262 15.118 75589
  7.480 10.236 4.331 3.701 3.465 64906 32319 23623 M 16 262 15.354 80356
  7.874 10.630 4.331 3.701 3.465 77445 35072 25942 M 16 262 16.969 96128
  8.661 11.811 5.276 4.567 4.331 90721 27391 20145 M 18 358 16.535 113146
  9.449 12.598 5.276 4.567 4.331 112849 28696 21449 M 18 358 18.228 141356
  10.236 13.386 5.276 4.567 4.331 137188 29710 22754 M 18 358 19.921 172533
  11.024 14.567 6.142 5.354 5.118 169642 27826 21014 M 20 509 20.984 214138
  11.811 15.354 6.142 5.354 5.118 180705 25942 20000 M 20 509 21.575 228894

Images & Drawings

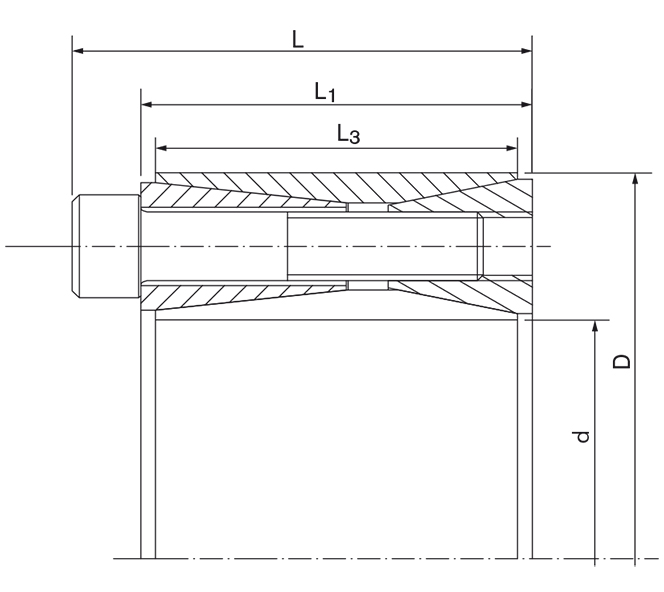

Dimensions Dimensions

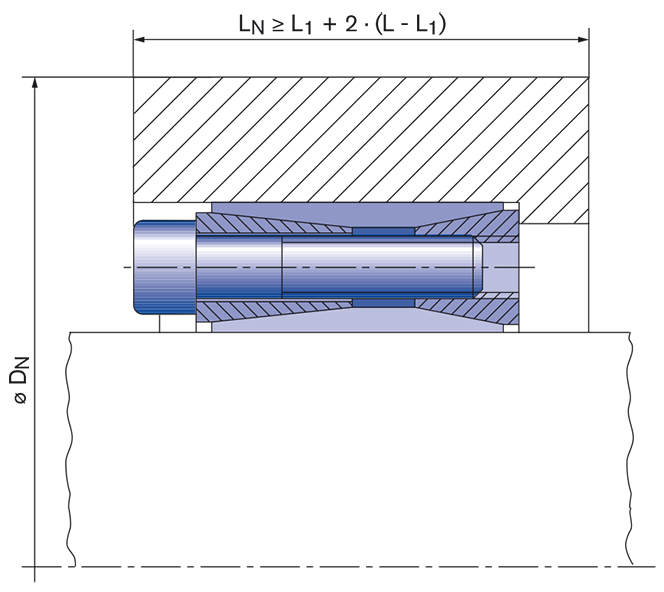

Location Location

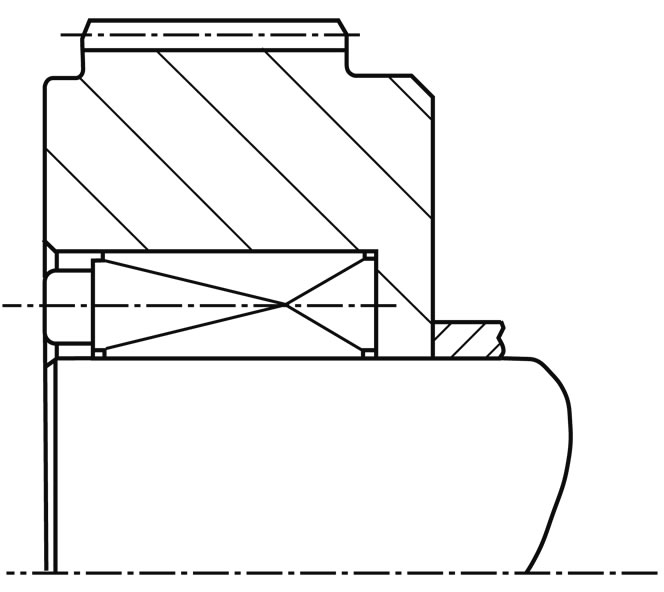

Gear wheel fastening Gear wheel fastening

Product Characteristics

  • Large transmittable peripheral forces – due to the long, flat cones it is possible to transmit maximum torques and axial forces with one RfN 7014 Locking Assembly.
  • Maximum reliability – due to the flat cones and the relatively wide construction (large guide lengths) the Locking Assemblies RfN 7014 centre themselves. During installation the Locking Assembly, shaft and hub remain in position to one another. The shaft and hub are loaded by pressure, providing additional safety compared to 3-part versions.

Example applications:

  • Heavy pulleys
  • Construction of heavy machinery
  • Couplings
  • Cable sheaves

Mounting of Locking Assembly

The values for T, Fax, pW and pN apply to Locking Assemblies installed in oiled condition

Surface finishes

For shafts and hub bores Ra ≤ 3,2 μm

Tolerances

We recommend the following mounting tolerances

Shaft: k9-h9; Hub: N9-H9

Arrangement of several Locking Assemblies RfN 7014

Two Locking Assemblies at most can be installed in series. In this case the transmission values of the above table are doubled.

Change of screw tightening torques

A reduction of the contact pressures and the transmission values by reducing the tightening torque of the screws is possible. The admissible lower limit results from the multiplication of the TA values of the above table by 0,8. There is an approximate linear relationship between T, TA, Fax, pW and pN.
