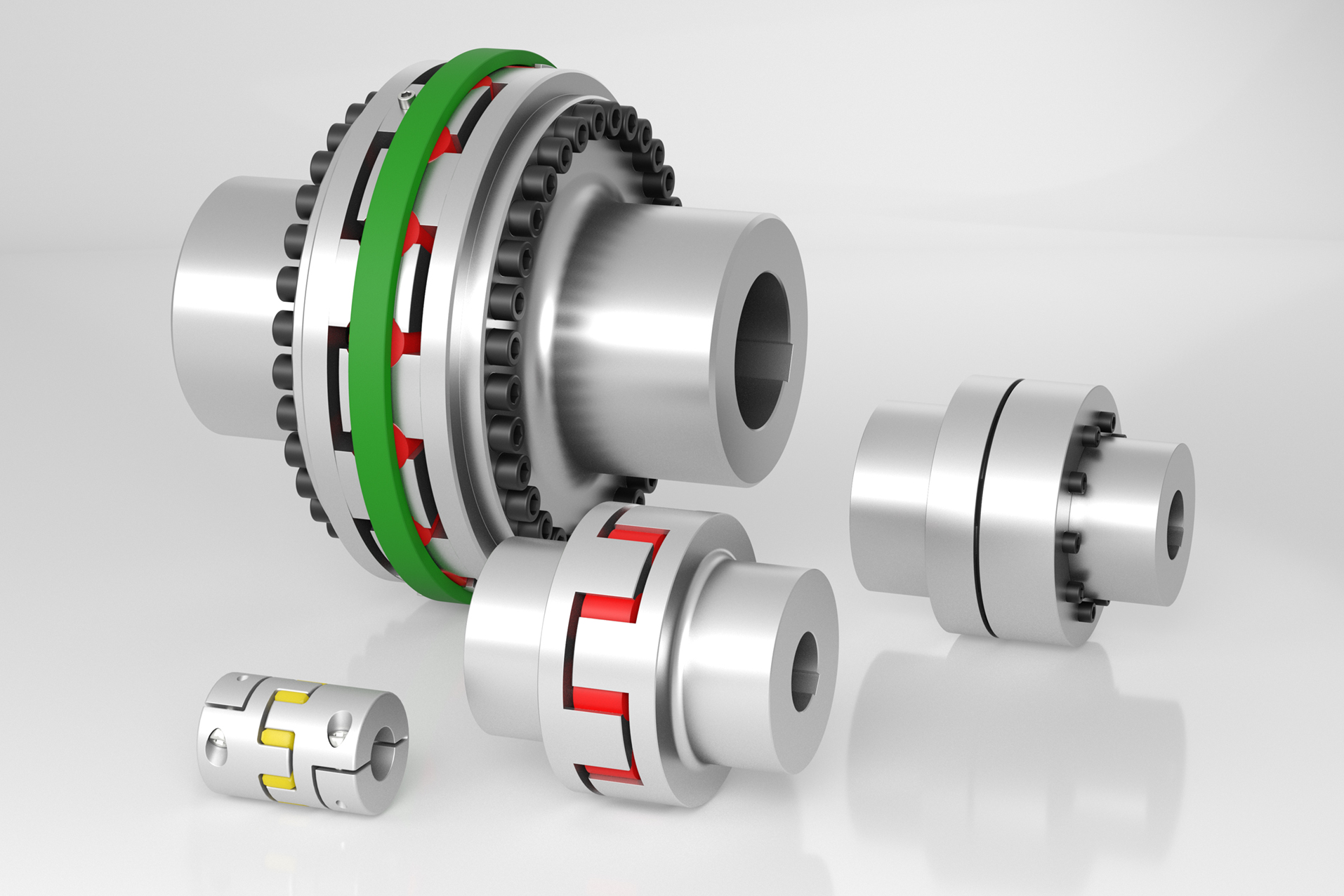

Elastomer Jaw Couplings GWE, TNM, TNS & TNB
Our world-leading Elastomer Jaw Couplings of the RINGFEDER® GWE, TNM, TNS and TNB series – originating in the proven GERWAH® and TSCHAN® series – meet the highest performance and durability requirements in a wide range of sectors, e.g. the steel and metal industry, drive and conveyor technology, power generation, machine tool, packaging and printing machine construction as well as automation, control and positioning technology. The torsionally elastic couplings are puncture-proof as well as flexible in all directions – and therefore effectively compensate for axial, lateral and angular shaft misalignments caused by assembly inaccuracies or settling phenomena. Outstanding robustness and damping characteristics guarantee users maximum operational reliability, especially in applications with pronounced shock, alternating or vibration loads. Depending on the specific customer requirements, e.g. regarding the intended use, environmental conditions or transmissible torque, we provide optimally suited coupling solutions. The accompanying, easily exchangeable elastomer rings or buffers are available in different shore hardnesses.
Your Contact to Us
You like to have specific questions, require technical support or you are interested in a customized solution? Our experts in Engineering and Sales are more than happy to assist you. We look forward to your inquiry! Because excellent solutions always start with excellent guidance.
Contact us quickly and easily via our request form, by e-mail or telephone, or also using the "Need Help?" feature at the bottom right of this site.
Elastomer Jaw Couplings GWE, TNM, TNS, TNB & ECE
Elastomer Jaw Couplings GWE
- Torsionally elastic, pluggable, fail-safe
- Backlash- and maintenance-free
- Vibration and oscillation damping
- Compensation of angular, radial and axial shaft misalignment
- Nominal torques up to 2,000 Nm
- Wide range of variants including types with expanding mandrel, intermediate shaft or hubs in split design
- Easily exchangeable elastomer spiders of various hardnesses
- Available also in stainless steel
Elastomer Jaw Couplings TNM
- Torsionally elastic, pluggable, fail-safe
- Vibration and oscillation damping
- Compensation of angular, radial and axial shaft misalignment
- Nominal torques up to 40,000 Nm
- Wide range of variants including types with integrated brake disc/drum
- Easily exchangeable elastic intermediate rings of various hardnesses

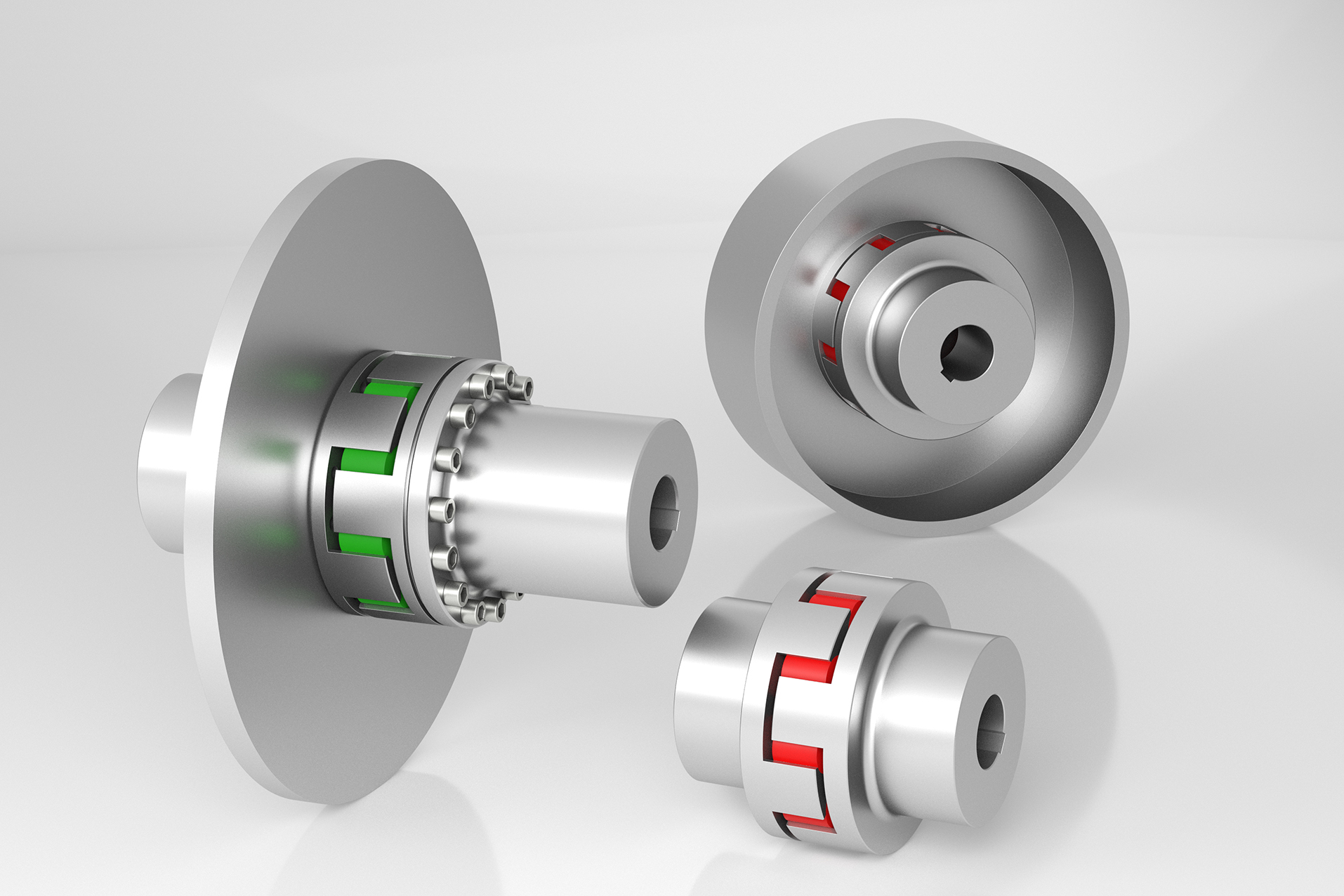

Elastomer Jaw Couplings TNS
- Torsionally elastic, pluggable, fail-safe
- Vibration and oscillation damping
- Compensation of angular, radial and axial shaft misalignment
- Nominal torques up to 13,500 Nm
- Wide range of variants including types with integrated brake disc/drum
- Easily exchangeable elastic intermediate rings of various hardnesses

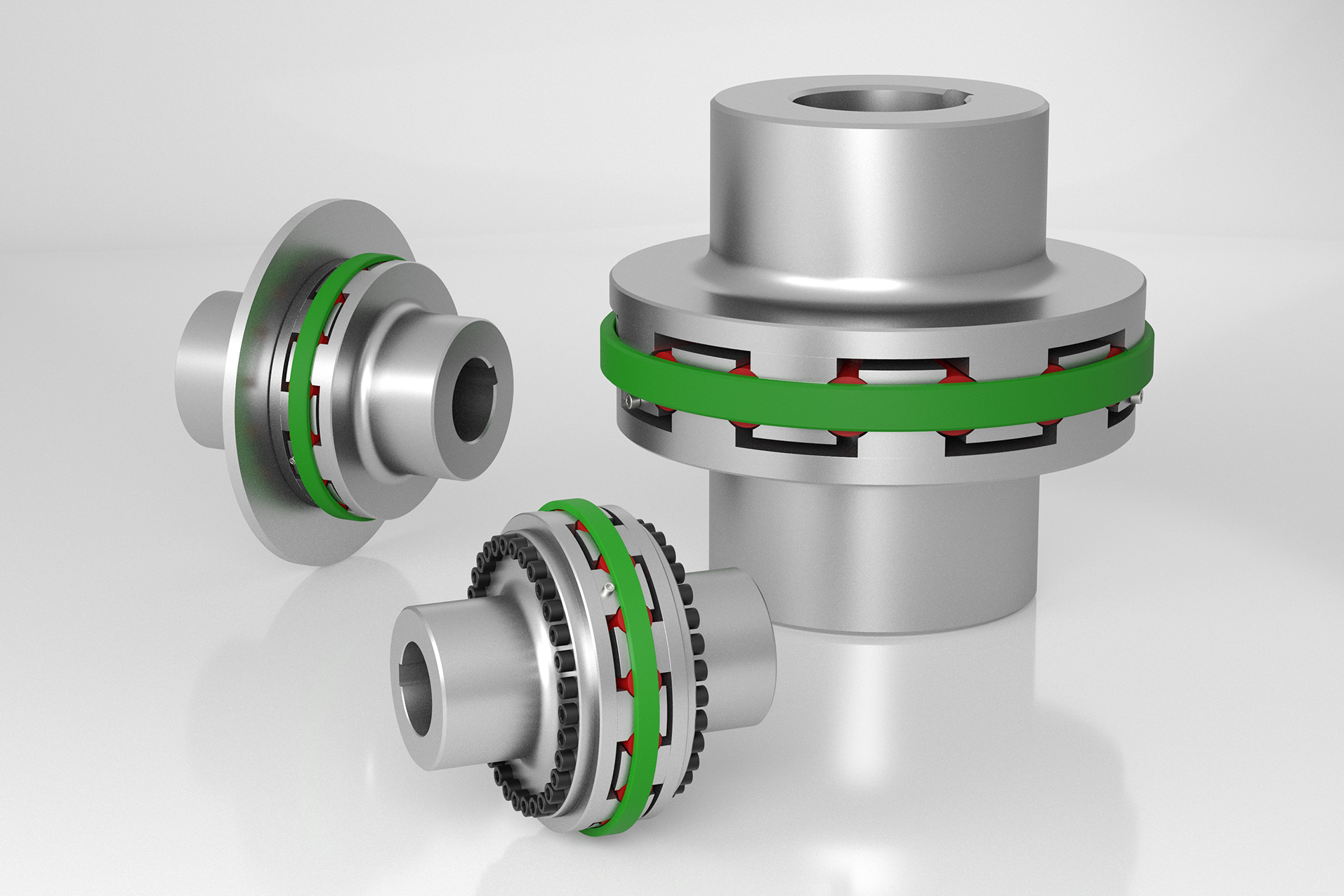

Elastomer Jaw Couplings TNB
- Torsionally elastic, pluggable, fail-safe
- Vibration and oscillation damping
- Compensation of angular, radial and axial shaft misalignment
- Nominal torques up to 260,000 Nm
- Wide range of variants including types with integrated brake disc
- Easily exchangeable elastic buffers of various hardnesses
Elastomer Jaw Couplings ECE
- Torsionally elastic, pluggable, fail-safe
- Backlash- and maintenance-free
- Vibration- and oscillation damping
- Compensation of angular, radial and axial shaft misalignment
- Nominal torques up to 4,500 Nm
- Hubs made of either aluminum, steel or cast iron
- Easily exchangeable elastomer spiders of various hardnesses
