Locking Assemblies RfN 7003 | RINGFEDER®

Two piece design with slit and single taper and without flange can be completely recessed within a component’s hub. Axial position of component not fixed and may move during installation.

Technical Data & CAD Models

Download of CAD data is available to you after login via your personal user account. You do not have a user account yet? Please register here.

CAD
d
mm
D
mm
L
mm
L1
mm
L3
mm
T
Nm
Fax
kN
pW
N/mm2
pN
N/mm2
TA
Nm
19 47 34 28 17 355 31 280 120 14
20 47 34 28 17 360 33 280 120 14
22 47 34 28 17 400 33 260 125 14
24 50 34 28 17 440 36 245 120 14
25 50 34 28 17 560 36 280 140 14
28 55 34 28 17 625 36 250 130 14
30 55 34 28 17 650 36 235 130 14
32 60 34 28 17 950 50 290 150 14
35 60 34 28 17 1050 50 290 150 14
38 65 34 28 17 1140 50 250 145 14
40 65 34 28 17 1200 50 230 145 14
42 75 41 33 20 2030 70 305 170 35
45 75 41 33 20 2180 70 285 170 35
48 80 41 33 20 2330 80 270 160 35
50 80 41 33 20 2430 85 260 160 35
55 85 41 33 20 3050 100 270 175 35
60 90 41 33 20 3350 100 245 165 35
65 95 41 33 20 4080 110 255 175 35
70 110 50 40 24 6280 160 280 180 70
75 115 50 40 24 6680 160 260 170 70
80 120 50 40 24 7130 160 250 170 70
85 125 50 40 24 8750 180 260 180 70
90 130 50 40 24 9080 180 250 170 70
95 135 50 40 24 10580 200 260 180 70
100 145 56 44 26 13380 240 270 190 125
110 155 56 44 26 14580 240 240 180 125
120 165 56 44 26 17880 250 250 180 125
130 180 64 52 34 25950 350 240 170 125
140 190 68 54 34 26950 350 210 150 190
150 200 68 54 34 32950 400 230 170 190
160 210 68 54 34 37950 450 230 170 190
170 225 78 64 44 44950 500 180 130 190
180 235 78 64 44 46950 500 170 130 190
190 250 78 64 44 64059 607 141 146 190
200 260 78 64 44 67430 607 134 141 190
220 285 88 72 50 82211 710 130 132 290
240 305 88 72 50 112106 848 149 154 290
260 325 88 72 50 145737 1017 165 174 290
280 355 102 84 60 168715 1094 139 143 400
300 375 102 84 60 203362 1230 146 152 400
320 405 121 101 74 287020 1627 150 151 580
340 425 121 101 74 355785 1899 165 168 580
360 455 137 115 86 395461 1994 142 142 780
380 475 137 115 86 487003 2326 157 158 780
400 495 137 115 86 512635 2326 150 152 780
CAD d
inch
D
inch
L
inch
L1
inch
L3
inch
T
ft-lbs
Fax
lbs
pW
psi
pN
psi
DG
mm
TA
ft-lbs
  3/4 1.850 1.339 1.102 0.669 260 7000 40600 17400 6 10
  7/8 1.850 1.339 1.102 0.669 295 7400 38800 17800 6 10
  1 1.969 1.339 1.102 0.669 415 8100 40600 20000 6 10
  1 1/8 2.165 1.339 1.102 0.669 460 8100 36200 18600 6 10
  1 3/16 2.165 1.339 1.102 0.669 480 8100 34100 18600 6 10
  1 1/4 2.362 1.339 1.102 0.669 700 11200 42000 21700 6 10
  1 3/8 2.362 1.339 1.102 0.669 775 11200 38800 21700 6 10
  1 7/16 2.559 1.339 1.102 0.669 805 11200 38000 21200 6 10
  1 1/2 2.559 1.339 1.102 0.669 840 11200 36500 21200 6 10
  1 5/8 2.953 1.614 1.299 0.787 1500 15700 44200 24300 8 26
  1 3/4 2.953 1.614 1.299 0.787 1610 15700 41300 24300 8 26
  1 7/8 2.953 1.614 1.299 0.787 1700 19100 39300 22900 8 26
  1 15/16 3.150 1.614 1.299 0.787 1790 19100 37400 22900 8 26
  2 3.150 1.614 1.299 0.787 1790 19100 36800 22900 8 26
  2 1/8 3.346 1.614 1.299 0.787 2180 22500 39600 25100 8 26
  2 3/16 3.346 1.614 1.299 0.787 2250 22500 38800 25100 8 26
  2 1/4 3.543 1.614 1.299 0.787 2320 22500 37000 23600 8 26
  2 3/8 3.543 1.614 1.299 0.787 2470 22500 35200 23600 8 26
  2 7/16 3.740 1.614 1.299 0.787 2840 24700 38500 25100 8 26
  2 1/2 3.740 1.614 1.299 0.787 2910 24700 37500 25100 8 26
  2 9/16 3.740 1.614 1.299 0.787 3010 24700 36700 25100 8 26
  2 11/16 4.331 1.969 1.575 0.945 4500 36000 41300 26500 10 52
  2 3/4 4.331 1.969 1.575 0.945 4630 36000 40300 25800 10 52
  2 7/8 4.528 1.969 1.575 0.945 4790 36000 38400 24300 10 52
  2 15/16 4.528 1.969 1.575 0.945 4930 36000 37400 24300 10 52
  3 4.724 1.969 1.575 0.945 5260 36000 36000 24300 10 52
  3 1/4 4.921 1.969 1.575 0.945 6230 40500 38500 25800 10 52
  3 3/8 4.921 1.969 1.575 0.945 6450 40500 37400 25800 10 52
  3 7/16 5.118 1.969 1.575 0.945 6480 40500 37000 24300 10 52
  3 1/2 5.118 1.969 1.575 0.945 6700 40500 36000 24300 10 52
  3 3/4 5.315 1.969 1.575 0.945 7800 45000 37400 25800 10 52
  3 15/16 5.709 2.205 1.732 1.024 9870 54000 38800 27200 12 92
  4 5.709 2.205 1.732 1.024 9960 54000 38200 27200 12 92
  4 7/16 6.102 2.205 1.732 1.024 10800 54000 34500 25800 12 92
  4 3/4 6.496 2.205 1.732 1.024 13200 56200 36000 25800 12 92
  4 15/16 7.087 2.520 2.047 1.339 18400 78700 35800 24300 12 92
  5 7.087 2.520 2.047 1.339 19100 78700 34500 24300 12 92
  5 7/16 7.480 2.677 2.126 1.339 19900 78700 30100 21400 14 140
  5 15/16 7.874 2.677 2.126 1.339 24300 90000 33000 24300 14 140
  6 7/16 8.858 3.071 2.520 1.732 33200 112000 26100 18800 14 140
  6 15/16 9.252 3.071 2.520 1.732 34600 112000 24600 18800 14 140

Product Characteristics

Self-centering, two piece low-cost locking assemblies, which can be used - due to the slit - also at larger tolerances. The hub slightly positions during mounting towards the screw head. For disassembly only few release screws are required. Through optimised geometry of the flange, the deformation of the flange is significantly lower than with standard products.

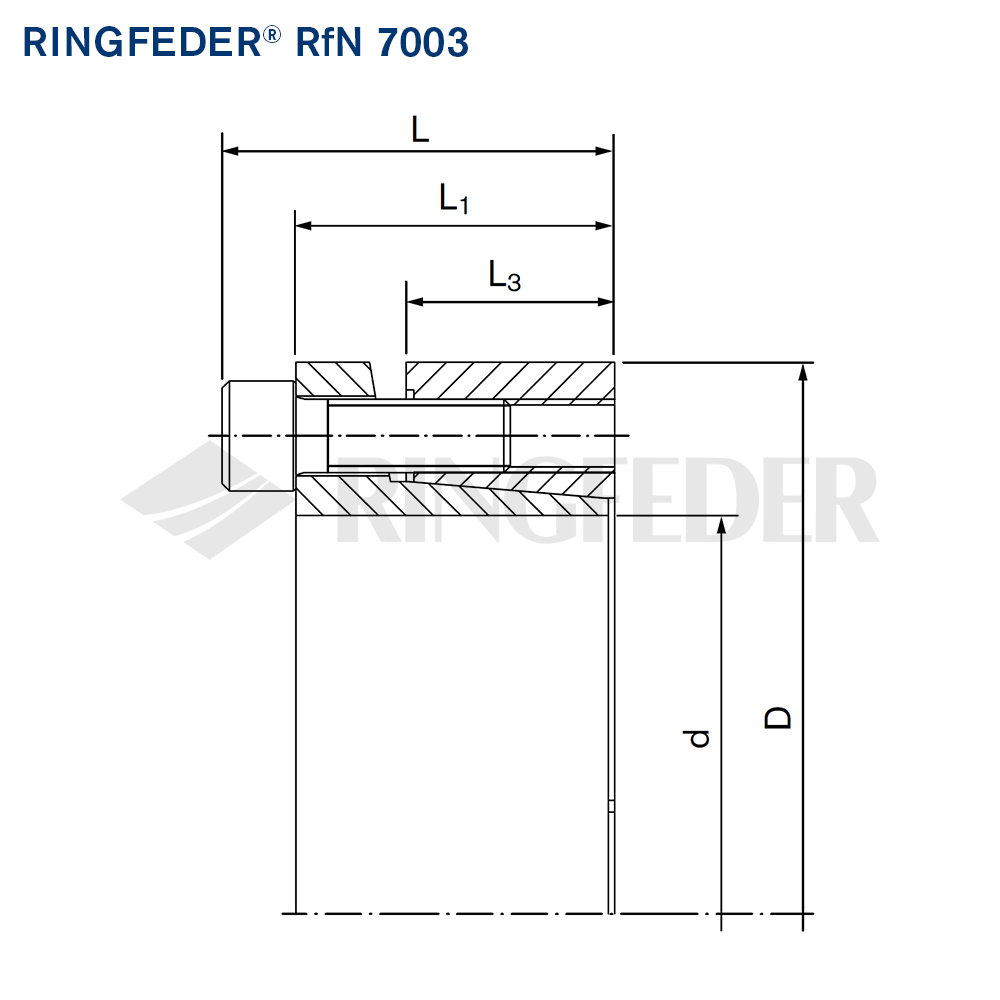

Explanations

  • L = Overall width
  • L1 = Overall width (without screws)
  • L3 = Clamping length
  • d = Inner ring diameter
  • D = Outer diameter
