Elastomer Jaw Couplings GWE Z5104.1 | RINGFEDER®

Self-aligning coupling with clamping hubs for large shaft spacings

The backlash-free jaw coupling of the RINGFEDER® GWE Z5104.1 series that is designed as a torsionally flexible intermediate shaft is used where torque or rotation need to be transmitted with the greatest possible angle precision and a large shaft separation needs to be bridged. It comprises two RINGFEDER® GWE 5104, connected by a precision hollow shaft in steel. The shaft tolerance should lie within the fit tolerance of ‘g6’ to ‘h7’.

GWE Z5104.1

CAD data download is available after login.

CAD

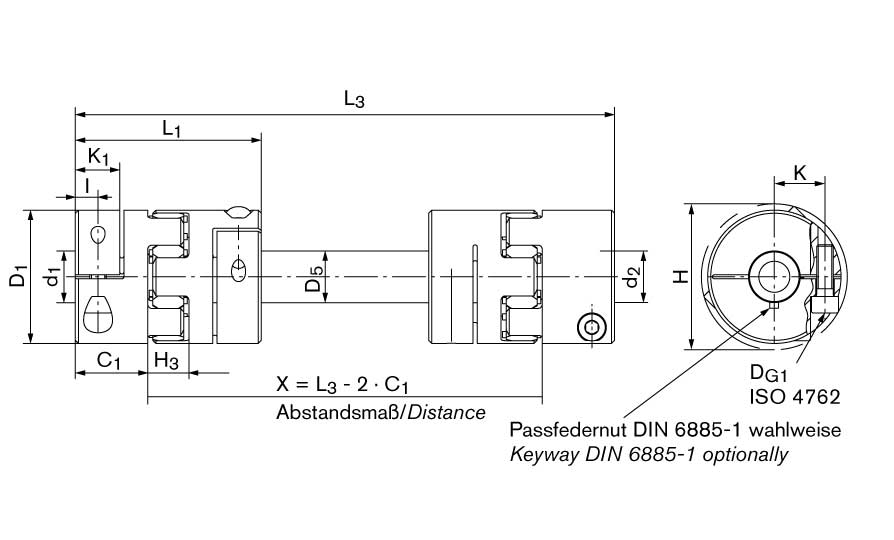

Size
d1min
mm
d1max
mm
D1
mm
D5
mm
H
mm
H3
mm
L1
mm
L3min
mm
L3max
mm
T
Nm
TA1
Nm
14 5 16 30 16 31,6 13 35 80 2000 12,5 2
19 6 20 40 20 46 16 66 135 2000 17 11
24 10 32 55 25 57 18 78 160 2000 60 15
28 10 38 65 30 71 20 90 185 2000 160 32
38 12 48 80 40 83 24 114 230 2000 325 38
42 14 54 95 40 95 26 126 255 2000 450 84
48 15 60 105 50 104,5 28 140 290 2000 525 145
CAD Size
d1min
inch
d1max
inch
D1
inch
D5
inch
H
inch
H3
inch
L1
inch
L3min
inch
L3max
inch
T
ft-lbs
TA1
ft-lbs
  14 0.197 0.630 1.181 0.630 1.244 0.512 1.378 3.150 78.740 9 1.5
  19 0.236 0.787 1.575 0.787 1.811 0.630 2.598 5.315 78.740 13 8
  24 0.394 1.260 2.165 0.984 2.244 0.709 3.071 6.299 78.740 44 11
  28 0.394 1.496 2.559 1.181 2.795 0.787 3.543 7.283 78.740 118 24
  38 0.472 1.890 3.150 1.575 3.268 0.945 4.488 9.055 78.740 240 28
  42 0.551 2.126 3.740 1.575 3.740 1.024 4.961 10.039 78.740 332 62
  48 0.591 2.362 4.134 1.969 4.114 1.102 5.512 11.417 78.740 387 107

Characteristics

Backlash-free Elastomer Jaw Couplings
RINGFEDER® GWE

Backlash-free RINGFEDER® GWE jaw couplings are used in engineering where high positioning precision requires vibration damping in greatly accelerated processes and the use of plug-in coupling solutions is preferred.

Advantages

  • Backlash-free, through pre-stressing
  • Pluggable
  • Vibration damping
  • Torques from 0,5 – 650 Nm
  • Compensation of radial, axial and angular misalignment
  • Electrically isolating

Applications

  • Encoder
  • Precision drives
  • Feed drives
  • Grinding and milling spindles
  • Machine tools
  • Packing machines
  • Robotics
  • Transfer lines
  • Multi-spindle heads
  • Wood processing equipment
  • Textile machinery
  • Conveying equipment
  • Linear motion
  • Measuring equipment and control technology
  • Test rigs

Technical description

Every hub on the RINGFEDER® GWE jaw coupling has concave jaws on its face. The function of the coupling to transmit torque and damp impact that occurs, as well as balancing out unavoidable mis- alignments, is enabled through the joining of two hubs and the filling of the created free space with an elastic sprocket. The GWE jaw couplings are backlash-free in order to also achieve a high level of positioning precision in reverse operation. The coupling is backlash-free as a result of the pressure pre-tensioning of the individual buffers in the elastomer sprocket. The different Shore hardness levels, which correlate to the torsional stiffness, mean that it is possible to optimise the entire drive line from the point of view of rotary oscillation. Detailed information is included in the technical data for the sprockets.

Characteristics GWE Z5104.1

  • Low mass through aluminium hubs
  • Optimisation of the vibration damping through different elastomer spider hardness levels
  • As standard with red elastomer spider. Up to size 55 in 98 Shore A and from size 65 in 95 Shore A
  • Shaft separation of up to 3000 mm can be bridged
  • Puncture-proof and electrically insulating
  • Coupling hubs optionally with keyways in accordance with DIN 6885-1
