Locking Assemblies RfN 7015.0 for Bending Loads | RINGFEDER®

For superb centering and high torque transmission, this dual tapered device reflects the best in RINGFEDER® engineering expertise. This style is in two types, 7015.0 for general engineering applications and 7015.1 for conveyor pulley applications. Available in sizes 100 to 600 mm.

Request
Calculation
Downloads

Technical Data & CAD Models

Download of CAD data is available to you after login with your personal Customer or Distributor Account. You do not have an account yet? Register here without any costs or obligations.

CAD
d
mm
D
mm
L
mm
L1
mm
TAred
Nm
T
Nm
pW
N/mm2
pN
N/mm2
Mbmax
Nm
pWmax bei Mbmax
N/mm2
pNmax bei Mbmax
N/mm2
Tres bei Mbmax
Nm
100 145 77  65  115 11297 157 108 11200 215 148 1474
110 155 77  65  115 12426 142 101 12300 201 143 1767
120 165 77  65  115 16267 157 114 16100 227 165 2326
130 180 86  74  115 22028 156 113 21900 224 162 2375
140 190 86  74  115 28468 174 128 21600 236 174 18543
150 200 86  74  115 30501 163 122 30300 224 183 3495
160 210 86  74  115 37957 178 136 22500 234 179 30569
170 225 95  81  185 47955 179 135 33300 244 184 34508
180 235 95  81  185 50776 169 129 49800 260 199 9909
190 250 108  94  185 59552 149 113 58300 224 170 12149
200 260 108  94  185 75224 170 131 30900 208 160 68585
220 285 120  104  285 84791 152 117 84300 230 178 9107
240 305 120  104  285 123332 186 146 52500 230 181 111599
260 325 120  104  285 139176 178 143 51900 219 175 129137
280 355 144  126  390 174092 161 127 124600 223 176 121585
300 375 144  126  390 194299 157 125 139200 222 177 135556
320 405 162  142  550 265703 159 125 171300 216 171 203112
340 425 162  142  550 282310 149 120 229800 222 178 163984
360 455 187  165  745 371148 149 118 295300 214 169 224830
380 475 187  165  745 391767 141 113 389800 223 178 39211
400 495 187  165  745 412387 134 108 410300 215 174 41431
420 515 187  165  745 519607 153 125 311300 212 173 416033
440 545 204  180  960 639702 154 124 417000 216 175 485108
460 565 204  180  960 668779 147 120 485800 217 177 459635
480 585 204  180  960 744381 150 123 446100 212 174 595900
500 605 204  180  960 775396 144 119 474800 207 171 613029
520 630 227  200  1440 1014357 156 129 613500 219 181 807798
540 650 227  200  1440 1053370 150 125 674900 217 180 808764
560 670 227  200  1440 1092384 145 121 684200 210 176 851571
580 690 227  200  1440 1131398 140 118 890500 222 186 697904
600 710 227  200  1440 1248439 144 122 798300 215 182 959853
620 730 227  200  1440 1290054 140 119 1004600 226 192 809331
640 750 227  200  1440 1456512 148 126 651400 202 173 1302730
660 770 227  200  1440 1502028 143 123 772500 206 176 1288151
680 790 227  200  1440 1591760 143 123 435600 177 153 1530997
700 810 227  200  1440 1638576 139 120 641900 188 163 1507613
720 830 227  200  1440 1872658 150 130 645200 198 172 1758001
740 850 227  200  1440 1924677 146 127 654500 193 168 1809975
760 870 227  200  1440 1976695 142 124 663800 189 165 1861906
780 890 227  200  1440 2028713 139 122 673100 185 162 1913796
800 910 227  200  1440 2184768 142 125 777900 194 170 2041588
CAD d
inch 		D
inch 		L
inch 		L1
inch 		TAred
ft-lbs 		T
ft-lbs 		pW
psi 		pN
psi 		Mbmax
ft-lbs 		pWmax bei Mbmax
psi 		pNmax bei Mbmax
psi 		Tres bei Mbmax
ft-lbs
  3.937 5.709 3.031 2.559 85 8332 22754 15652 8261 31159 21449 1087
  4.331 6.102 3.031 2.559 85 9165 20580 14638 9072 29130 20725 1303
  4.724 6.496 3.031 2.559 85 11998 22754 16522 11875 32899 23913 1716
  5.118 7.087 3.386 2.913 85 16247 22609 16377 16153 32464 23478 1752
  5.512 7.480 3.386 2.913 85 20997 25217 18551 15932 34203 25217 13677
  5.906 7.874 3.386 2.913 85 22497 23623 17681 22348 32464 26522 2578
  6.299 8.268 3.386 2.913 85 27996 25797 19710 16595 33913 25942 22547
  6.693 8.858 3.740 3.189 136 35370 25942 19565 24561 35362 26667 25452
  7.087 9.252 3.740 3.189 136 37451 24493 18696 36731 37681 28841 7309
  7.480 9.843 4.252 3.701 136 43924 21594 16377 43000 32464 24638 8961
  7.874 10.236 4.252 3.701 136 55483 24638 18986 22791 30145 23188 50586
  8.661 11.220 4.724 4.094 210 62539 22029 16957 62177 33333 25797 6717
  9.449 12.008 4.724 4.094 210 90966 26957 21159 38723 33333 26232 82312
  10.236 12.795 4.724 4.094 210 102652 25797 20725 38280 31739 25362 95248
  11.024 13.976 5.669 4.961 288 128405 23333 18406 91901 32319 25507 89678
  11.811 14.764 5.669 4.961 288 143309 22754 18116 102670 32174 25652 99982
  12.598 15.945 6.378 5.591 406 195975 23043 18116 126346 31304 24783 149810
  13.386 16.732 6.378 5.591 406 208224 21594 17391 169494 32174 25797 120950
  14.173 17.913 7.362 6.496 549 273748 21594 17101 217805 31014 24493 165828
  14.961 18.701 7.362 6.496 549 288956 20435 16377 287506 32319 25797 28921
  15.748 19.488 7.362 6.496 549 304165 19420 15652 302626 31159 25217 30558
  16.535 20.276 7.362 6.496 549 383248 22174 18116 229606 30725 25072 306854
  17.323 21.457 8.031 7.087 708 471826 22319 17971 307567 31304 25362 357802
  18.110 22.244 8.031 7.087 708 493273 21304 17391 358312 31449 25652 339014
  18.898 23.031 8.031 7.087 708 549035 21739 17826 329031 30725 25217 439519
  19.685 23.819 8.031 7.087 708 571910 20870 17246 350199 30000 24783 452153
  20.472 24.803 8.937 7.874 1062 748161 22609 18696 452500 31739 26232 595809
  21.260 25.591 8.937 7.874 1062 776936 21739 18116 497787 31449 26087 596522
  22.047 26.378 8.937 7.874 1062 805712 21014 17536 504647 30435 25507 628095
  22.835 27.165 8.937 7.874 1062 834487 20290 17101 656808 32174 26957 514754
  23.622 27.953 8.937 7.874 1062 920814 20870 17681 588804 31159 26377 707961
  24.409 28.740 8.937 7.874 1062 951508 20290 17246 740965 32754 27826 596940
  25.197 29.528 8.937 7.874 1062 1074282 21449 18261 480454 29275 25072 960857
  25.984 30.315 8.937 7.874 1062 1107854 20725 17826 569774 29855 25507 950104
  26.772 31.102 8.937 7.874 1062 1174037 20725 17826 321286 25652 22174 1129220
  27.559 31.890 8.937 7.874 1062 1208568 20145 17391 473447 27246 23623 1111973
  28.346 32.677 8.937 7.874 1062 1381201 21772 18869 475875 28696 24928 1296635
  29.134 33.465 8.937 7.874 1062 1419569 21191 18433 482734 28013 24384 1334969
  29.921 34.252 8.937 7.874 1062 1457935 20611 17998 489594 27432 23949 1373271
  30.709 35.039 8.937 7.874 1062 1496301 20175 17708 496453 26852 23513 1411543
  31.496 35.827 8.937 7.874 1062 1611402 20611 18143 573750 28158 24675 1505798

Images & Drawings

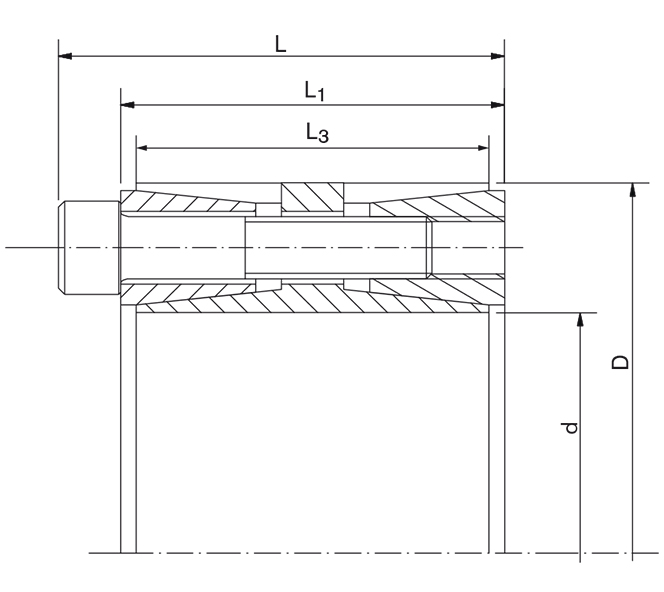

Dimensions Dimensions

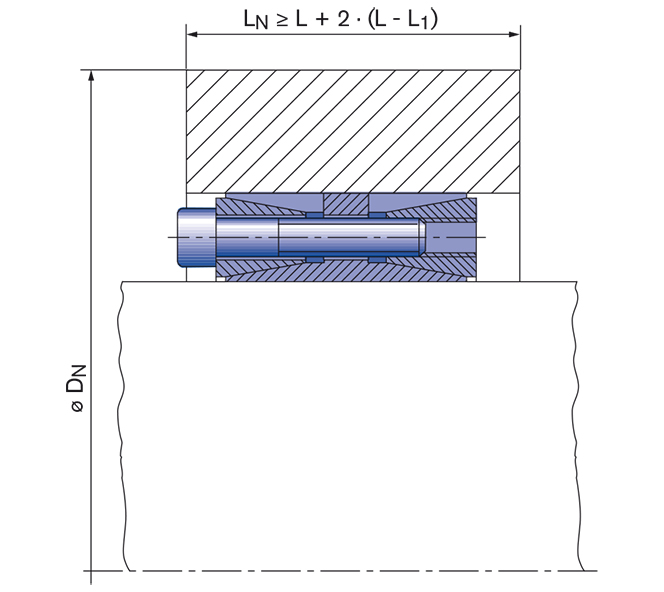

Location Location

Characteristics

Explanation to table

A bending moment, created by radial forces, results in an additional load for the Locking Assembly, shaft and hub. This load creates an additional pressure, works in rotation and has to be superpositioned with the pressure resulting from the Locking Assembly. For a viable connection, a minimum surface pressure at the contact areas between Locking Assembly, shaft and hub must be maintained, as soon as shaft and hub have to take up the maximal pressures. Additionally, the listed torque values (T) have been reduced due to the additional bending moments. To achieve lower stresses for the Locking Assemblies the screw tightening torques (TA) have also been reduced.

RINGFEDER® Locking Assemblies – How to Use Them?

Learn more about application and functionality of our premium-quality, high-performance RINGFEDER® Locking Assemblies in our short video.

More Videos
RINGFEDER® Locking Assemblies – How to Use Them?

Downloads
Product Paper RINGFEDER® Locking Assemblies for Bending Loads

Product Paper RINGFEDER® Locking Assemblies for Bending Loads

EN English DE German
Tech Paper Locking Assemblies for Bending Loads RINGFEDER® RfN 7015.0

Tech Paper Locking Assemblies for Bending Loads RINGFEDER® RfN 7015.0

EN English DE German
Instruction Manual Locking Assemblies RINGFEDER® RfN 7015.0, RfN 7015.1

Instruction Manual Locking Assemblies RINGFEDER® RfN 7015.0, RfN 7015.1

DE German EN English

If indicated pressures are too high for your specific application, please refer to the corresponding Tech Papers with reduced bending loads (Mb 20% to Mb 80%).
