The RINGFEDER® TNS SX coupling is a torsionally flexible, fail-safe claw coupling which is particularly suited for use with hydrodynamic couplings. It balances out angular, radial and axial shaft misalignments within defined limits. The coupling transfers the torque via pressure loadable, elastic buffers of synthetic rubber (Pb) or polyurethane (VkR)and are connected to each other to form an elastic intermediate ring. The elastic intermediate ring can cushion impacts and torsional vibrations; it is oil-resistant. Intermediate rings made of Perbunan are electrically conductive.

TNS SX

CAD data download is available after login.

CAD
Identifier
Size
TKN
Nm
TKmax
Nm
d1kmax
mm
A
mm
C1
mm
FK
mm
DPC7
mm
d7
mm
L
mm
Gwub
kg
WS1010 100 70 210 48 145 49,5 10 128 9 84,5 2,9
WS1012 125 128 385 55 170 56,5 10 148 9 97 4,5
WS1014 145 220 660 65 194 61 12 172 9 109 6,4
WS1017 170 340 1020 85 220 75 14 195 13,5 126,5 10,4
WS1020 200 590 1770 95 250 99 14 228 13,5 156,5 17,5
WS1023 230 900 2700 105 290 110 14 265 13,5 171 24,4
WS1026 260 1400 4200 125 335 112,5 18 310 13,5 188 35,9
WS1030 300 2090 6270 140 385 131,5 24 360 13,5 218,5 53,2
WS1036-0650 360 3450 10350 150 455 172 28 420 17,5 271,5 84,4
WS1036-0750 360 3450 10350 150 514 172 30 480 17,5 273,5 84,4
WS1040 400 4750 14250 160 514 163,5 30 480 17,5 265 94,6
WS1040-0866 400 4750 14250 160 595 163,5 30 555 22 265 99,2
WS1040-L 400-L 4750 14250 160 514 183,5 30 480 17,5 285 100,9
WS1040-L-0866 400-L 4750 14250 160 595 183,5 30 555 22 285 105,5
CAD Identifier
Size
TKN
ft-lbs
TKmax
ft-lbs
d1kmax
inch
A
inch
C1
inch
FK
inch
DPC7
inch
d7
inch
L
inch
Gwub
lbs
  WS1010 100 52 155 1.890 5.709 1.949 0.394 5.039 0.354 3.327 6.39
  WS1012 125 94 284 2.165 6.693 2.224 0.394 5.827 0.354 3.819 9.92
  WS1014 145 162 487 2.559 7.638 2.402 0.472 6.772 0.354 4.291 14.11
  WS1017 170 251 752 3.346 8.661 2.953 0.551 7.677 0.531 4.980 22.93
  WS1020 200 435 1305 3.740 9.843 3.898 0.551 8.976 0.531 6.161 38.58
  WS1023 230 664 1991 4.134 11.417 4.331 0.551 10.433 0.531 6.732 53.79
  WS1026 260 1033 3098 4.921 13.189 4.429 0.709 12.205 0.531 7.402 79.15
  WS1030 300 1542 4625 5.512 15.157 5.177 0.945 14.173 0.531 8.602 117.29
  WS1036-0650 360 - 650 2545 7634 5.906 17.913 6.772 1.102 16.535 0.689 10.689 186.07
  WS1036-0750 360 - 750 2545 7634 5.906 20.236 6.772 1.181 18.898 0.689 10.768 186.07
  WS1040 400 3503 10510 6.299 20.236 6.437 1.181 18.898 0.689 10.433 208.56
  WS1040-0866 400 - 866 3503 10510 6.299 23.425 6.437 1.181 21.850 0.866 10.433 218.70
  WS1040-L 400-L 3503 10510 6.299 20.236 7.224 1.181 18.898 0.689 11.220 222.45
  WS1040-L-0866 400-L 3503 10510 6.299 23.425 7.224 1.181 21.850 0.866 11.220 232.59

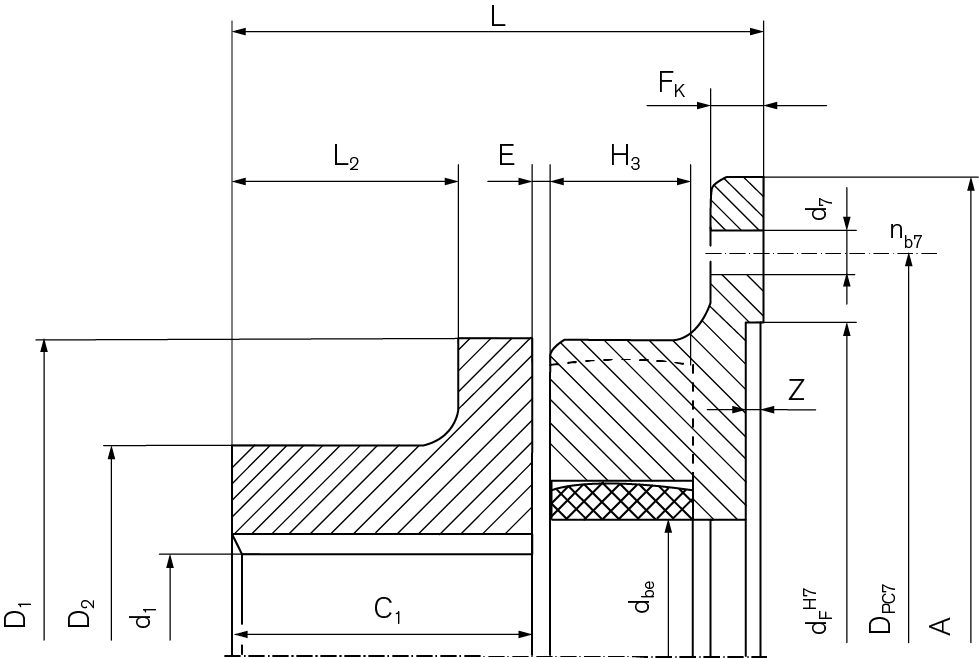

Characteristics

RINGFEDER® TNS SX

Elastic claw coupling with standard hub and claw flange.
The intermediate ring can be replaced after shifting a shaft with fitted hub.


Notes

  • Long hub version is possible.
  • Standard material for intermediate ring: Pb82
  • Installed size L must be maintained without fail. Axial displacement e.g. by thermal expansions of the connected shafts, must be taken into account through allowances for value L.

General features

  • Torsionally flexible, compensate for angular, radial and axial shaft offset
  • Intermediate rings loaded in compression
  • Elastomers available in various shore hardness degrees
  • Suitable for temperatures from –30°C to +100°C
  • Coupling outer diameter up to 400 mm, flange outer diameter 690mm.
  • Bores up to max. 160 mm
  • Torques with intermediate ring VkR up to TKn = 8,900 Nm / TKmax = 26,700 Nm
  • Speeds up to nmax = 7,250 rpm

INTRODUCTION

The rotationally resilient coupling of the RINGFEDER® TNS coupling is flexible in all directions and therefore compensates for angular, parallel and axial shaft misalignments of the connected machines. Misalignments can be caused, for example, by inaccurate assembly, heat movements or settling phenomena.

Elastic intermediate ring

With the RINGFEDER®-TNS coupling, the torque is transmitted via a compressed elastic intermediate ring. The elastic intermediate ring absorbs shocks and torsional vibrations, is resistant to oil and largely insensitive to temperature.
The strength of different elastomer materials is indicated by their Shore hardness. Elastomers of different strengths are colour-coded for identification. Further details concerning the strength and load capacity are available on request in the technical data sheet.

Elastomer Materials

The elastic intermediate rings of RINGFEDER® TNS are made of butadiene-nitril-rubber (Pb82) or polyurethane (VkR). The black buffer (Pb82) are normally electrically conductive and therefore prevent undesirable electrostatic charges. The red (VkR) ring ensure electrical insulation between connected machines as long as there are no other electrically conductive connections. The resilience of the individual elastomer materials is designated by their Shore hardness. From these values an indirect conclusion can be drawn with respect to the torques the coupling is able to transmit and its spring stiffness. For further details, please see the technical data sheet.

Avoiding Torsional Vibration

By virtue of the rotational resilience of the coupling, dangerous torsional vibrations from the operational range of plant machinery can be transferred to rotational speed ranges in which no negative effects are to be expected. The elastic intermediate rings possess a high material damping capability which makes it possible for the couplings to keep the resonance enhancements within limits when passing through dangerous speed ranges, thereby protecting the coupled machines against damage. The couplings also mitigate torque shocks and cause a vibrating system that has been excited by an impact to come to rest very quickly due to the material damping qualities. The conduction of structure-borne noise is prevented.

Environmental conditions

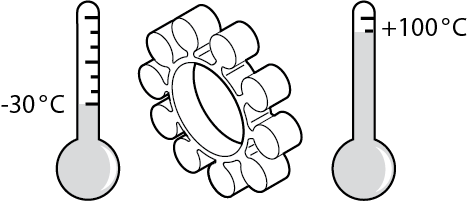

The employed elastomer materials operate reliably in ambient temperature ranges of –30° to +100°C. Please contact RINGFEDER POWER TRANSMISSION if higher ambient temperatures are involved. The influence of the temperature on the coupling size selection is explained in more detail in the below-mentioned design directives. It is only allowed to operate the coupling in normal industrial air. Aggressive media may attack the coupling components, bolts and elastic elements, and, therefore, present a danger to the operational safety of the coupling. The coupling can be declared compliant with the European Directive 2014/34/EU (ATEX). Please contact RINGFEDER POWER TRANSMISSION regarding the declaration of conformity according to 2014/34/EU and the effects of aggressive ambient media.
