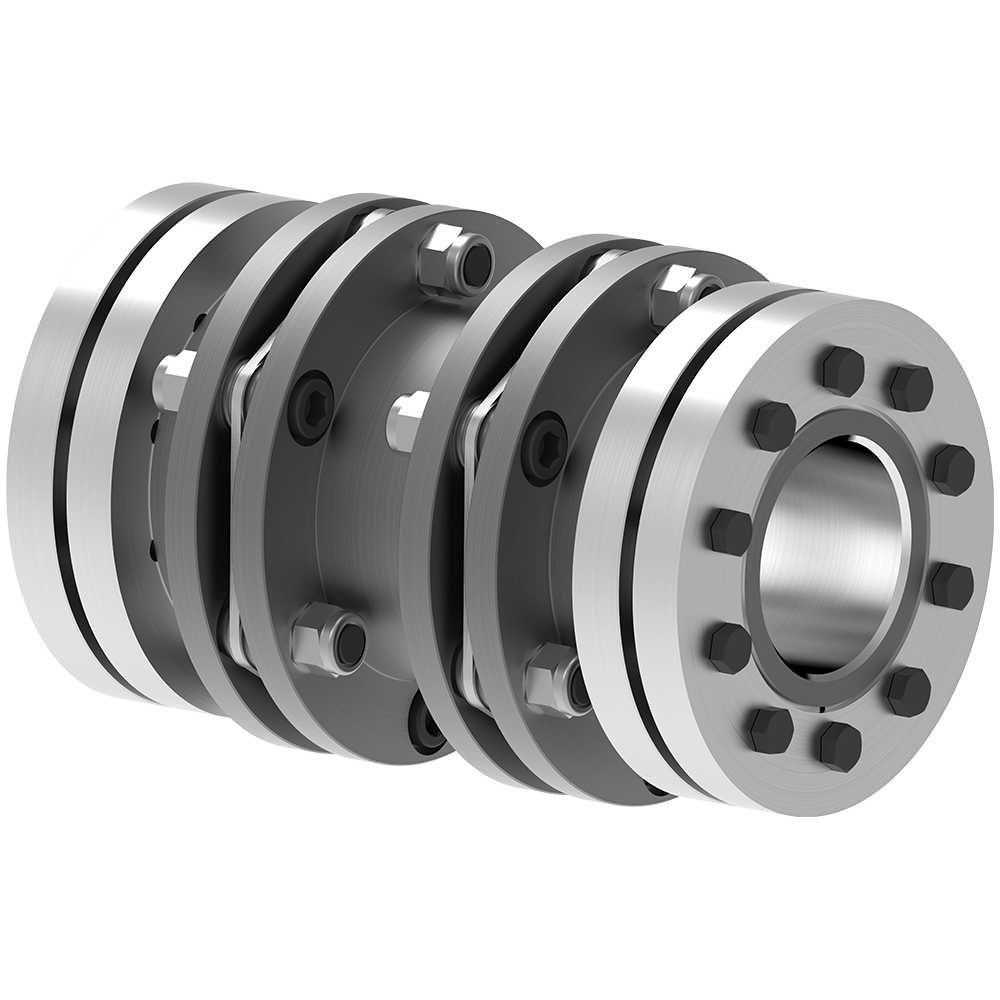

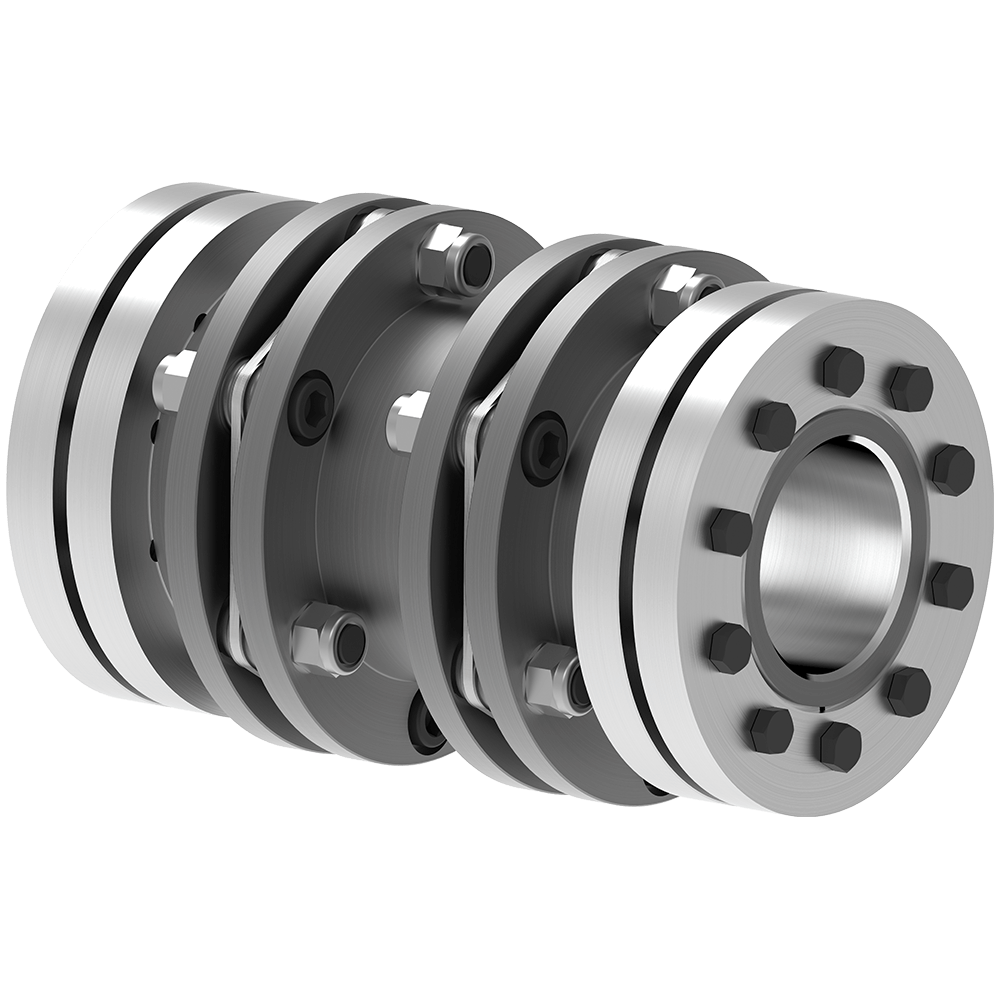

Steel Disc Couplings TND XDX | RINGFEDER®

Hubs with RINGFEDER® Shrink Discs, Double-Jointed, with Spacer, Shaft-Hub Connection by Shrink Disc

  • 7 Sizes
  • Bore Diameter d: 38-160 mm (1.496-6.299 inch)
  • Max. Outer Diameter D1: 116-345 mm (4.567-13.583 inch)
  • Hub Distance E: 100-300 mm (3.937-11.811 inch)
  • Overall Length L: 210-700 mm (8.268-27.559 inch)
  • Rot. Speed nmax: 2,100-3,600 1/min
  • Torque TKN: 750-44,000 Nm (553.17-32,452.73 ft·lb)

Product Characteristics

Your Benefits

The type RINGFEDER® TND XDX is a torsionally stiff, backlash-free steel disc coupling consisting of two hubs X prepared to be equipped with shrink discs of the series RINGFEDER® RfN 4061 and a spacer D in standardized or individually customized length. Using high-strength screws, one disc pack each is connected to the spacer and one hub, thus achieving the function of a double-cardanic system.

Depending on the coupling size, two different disc packs are available:

  • Type HD (= High Deflection) for increased compensation capability at occurring shaft misalignments.
  • Type HT (= High Torque) with larger power density for higher requirements on transmissible torque.

The double-jointed design with two disc packs compensates for radial (adjustable via the spacer length), angular and axial shaft misalignments. A permanently backlash-free fixation of the coupling hubs on the shafts to be connected is realized by means of high-quality RINGFEDER® Shrink Discs.



Steel disc couplings of the RINGFEDER® TND XDX type are particularly convincing due to the following features:

  • Completely backlash- and maintenance-free
  • Highly effective compensation of angular, axial and radial shaft misalignment
  • Torsionally rigid with high torsional stiffness
  • Low restoring forces in case of shaft misalignment due to optimum disc pack design
  • Bridging of large shaft distances by means of spacers in various standard and freely customizable special lengths

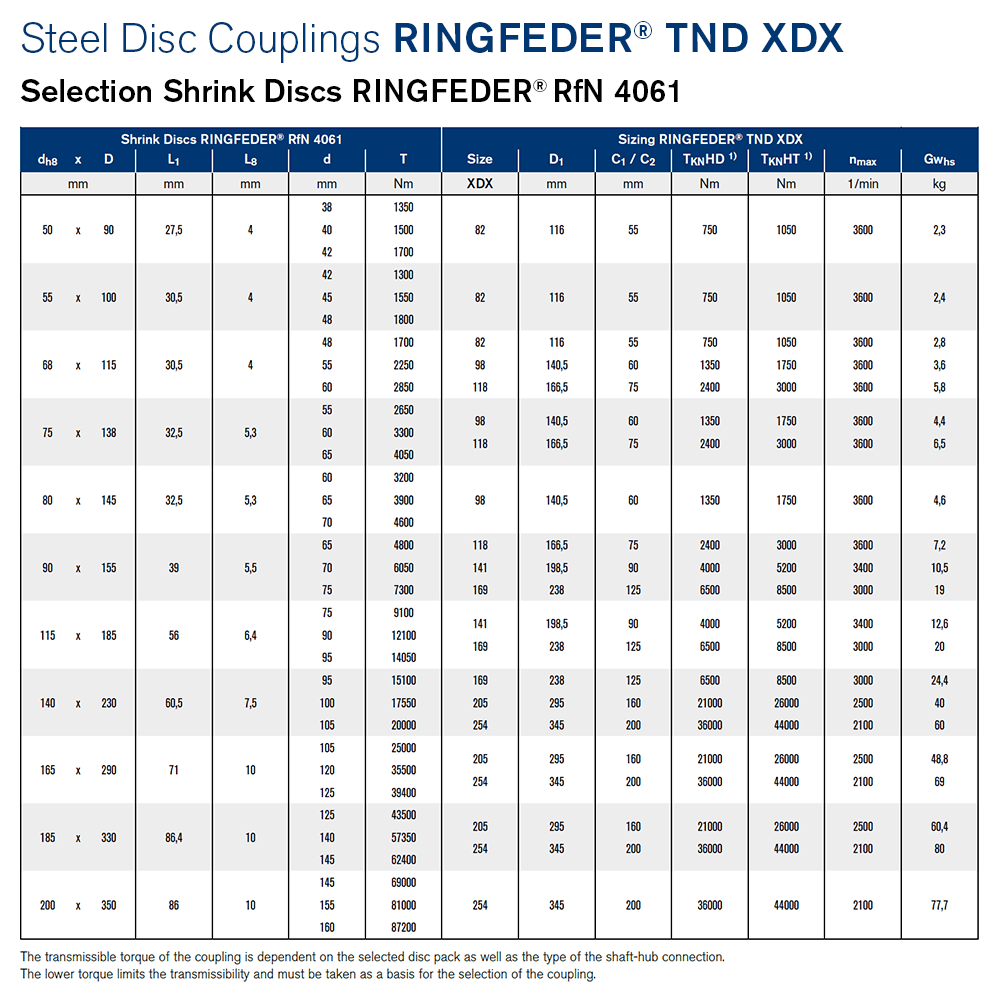

  • Simplified shrink disc selection thanks to RINGFEDER® Shrink Discs specifically assigned per coupling size
  • Bore diameter d1/2 up to 160 mm (4.724 inch)
  • Transmissible torque TKN up to 44,000 Nm (32,452.73 ft·lb) / Tkmax up to 77,000 Nm (56,792.29 ft·lb)
  • Rotational speeds depending on spacer length nmax up to 3,600 1/min
  • Efficient realization of customer-specific solutions at short delivery times thanks to modular design



ATEX Compliance

For maximum safety in explosion-endangered areas, RINGFEDER® Steel Disc Couplings can of course be supplied in compliance with ATEX according to Product Directive 2014/34/EU and DIN EN ISO 80079-36:2016 if required.



Main Areas of Use

  • Pumps
  • Fans
  • Compressors
  • Generator and Turbine Drives
  • Axial and Radial Blowers
  • Paper and Printing Machines
  • Mixers and Stirrers
  • Extruders
  • Lifting and Traversing Gears
  • Marine Drives
  • Water Screw Drives



Technical Information

  • The specified values for transmissible torques are valid as follows: Shaft tolerance h6 for shaft diameters up to 50 mm; Shaft tolerance g6 for shaft diameters from 50 mm; Surface quality Ra ≤ 3.2 μm.
  • From a peripheral speed of 30 m/s, separate balancing of the individual coupling parts is recommended.
  • Without further instructions on balancing, the coupling parts are balanced individually according to DIN 21940-11 in quality G 6,3 at 1,500 1/min. The hubs and the spacer are balanced without screwed-on disc packs.
  • Screwing of disc packs via hexagon socket screws (coupling size 82-141) or hexagon head screws (coupling size 169-254).

Moreover, please observe the detailed selection and operating criteria in the documents Product Paper Steel Disc Couplings RINGFEDER® TND and Tech Paper Steel Disc Couplings RINGFEDER® TND XDX.

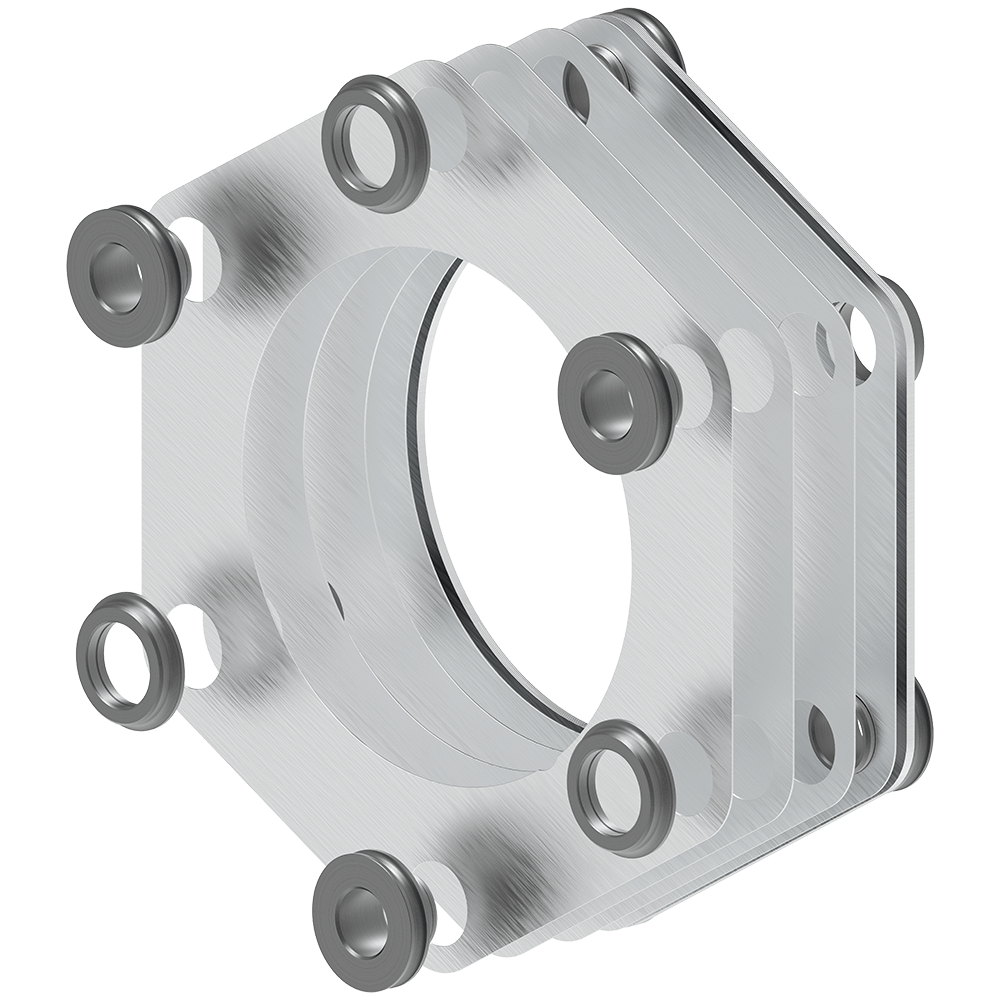

Steel Disc Couplings TND: High-Quality Disc Packs | RINGFEDER®

High-Quality Disc Packs

The characteristic and functional key element of the powerful steel disc couplings of the RINGFEDER® TND series are disc packs developed on the basis of in-depth FEM analysis. They consist of multiple circular, torsionally flexible single discs made of stainless spring steel which are connected by means of high-precision sleeves to form a compact unit. High-strength screws alternately connect the disc packs, if necessary via mounted spacers, to the coupling hubs, so that the required torque is transmitted reliably, precisely and safely by the steel discs which are loaded by tension and compression. At the same time, this ensures the desired compensation capability for angular, axial and, depending on the coupling type, also radial shaft misalignments at minimum restoring forces.

Technical Data & CAD Models

You require CAD data for this TND type? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.

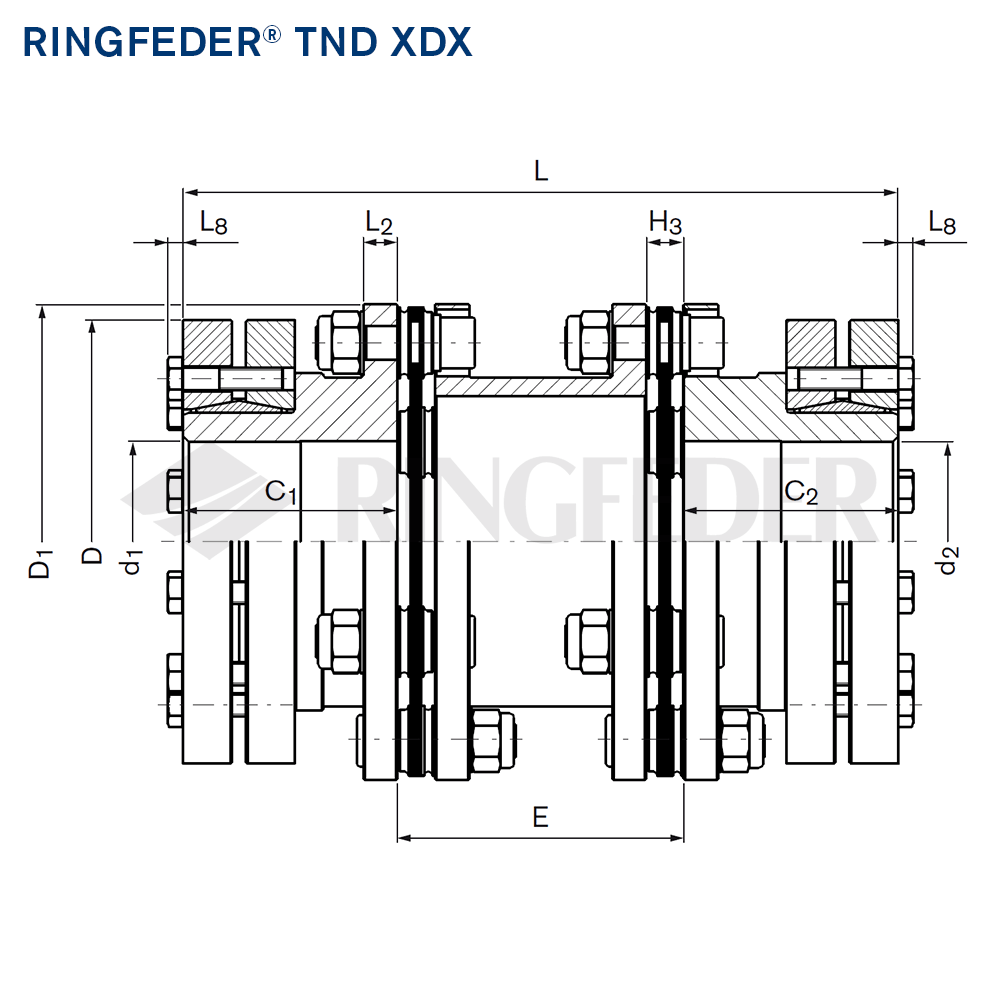

CAD
Größe/Size
TKN HD
Nm
TKN HT
Nm
nmax
1/min
d1min
mm
d2min
mm
d1max
mm
d2max
mm
C1
mm
C2
mm
E
mm
H3
mm

D1


mm
L2
mm
L
mm
nSc
Stück
L8
mm
GWsp
kg
CTdynHD
106Nm/rad
CTdynHT
106Nm/rad
ΔKaHD
mm
ΔKaHT
mm
ΔKwHD
°
ΔKwHT
°
ΔKrHD
mm
ΔKrHT
mm
82 750 1050 3600 38 38 60 60 55 55 100 10,5 116 10 210 6 4 1,991 0,271 0,308 1,4 0,8 2 1,4 1,4 1,1
82 750 1050 3600 38 38 60 60 55 55 140 10,5 116 10 250 6 4 2,289 0,246 0,277 1,4 0,8 2 1,4 2,1 1,5
82 750 1050 3600 38 38 60 60 55 55 180 10,5 116 10 290 6 4 2,586 0,226 0,251 1,4 0,8 2 1,4 2,8 2,1
98 1350 1750 3600 50 50 70 70 60 60 100 12 140,5 11 220 6 5,3 3,188 0,513 0,543 2,0 1,2 2 1,4 1,5 1
98 1350 1750 3600 50 50 70 70 60 60 140 12 140,5 11 260 6 5,3 3,627 0,469 0,494 2,0 1,2 2,0 1,4 2,1 1,5
98 1350 1750 3600 50 50 70 70 60 60 180 12 140,5 11 300 6 5,3 4,066 0,433 0,454 2,0 1,2 2,0 1,4 2,8 2,0
118 2400 3000 3600 50 50 75 75 75 75 100 13 166,5 12 250 6 5,3 4,874 0,914 0,948 2,4 1,6 2,0 1,4 1,4 1
118 2400 3000 3600 50 50 75 75 75 75 140 13 166,5 12 290 6 5,3 5,574 0,855 0,884 2,4 1,6 2,0 1,4 2,1 1,5
118 2400 3000 3600 50 50 75 75 75 75 180 13 166,5 12 330 6 5,3 6,275 0,803 0,829 2,4 1,6 2,0 1,4 2,8 2
141 4000 5200 3400 65 65 95 95 90 90 140 15 198,5 14 320 6 7,5 7,944 1,306 1,362 2,8 1,6 2,0 1,4 2,0 1,5
141 4000 5200 3400 65 65 95 95 90 90 180 15 198,5 14 360 6 7,5 8,718 1,229 1,279 2,8 1,6 2,0 1,4 2,7 2,0
169 6500 8500 3000 65 65 105 105 125 125 140 21 238 16 390 6 10 14,179 2,467 3,035 3,0 2,4 2,0 1,4 2,0 1,4
169 6500 8500 3000 65 65 105 105 125 125 180 21 238 16 430 6 10 15,757 2,375 2,898 3,0 2,4 2,0 1,4 2,6 1,9
169 6500 8500 3000 65 65 105 105 125 125 250 21 238 16 500 6 10 18,520 2,231 2,686 3,0 2,4 2,0 1,4 3,8 2,7
205 21000 26000 2500 95 95 145 145 160 160 200 28 295 22 520 8 10 32,689 8,995 9,142 2,2 1,2 1,0 0,8 1,4 1,2
205 21000 26000 2500 95 95 145 145 160 160 250 28 295 22 570 8 10 35,489 8,265 8,389 2,2 1,2 1,0 0,8 1,8 1,5
254 36000 44000 2100 94 94 160 160 200 200 224 32,5 345 26 624 8 10 54,420 14,975 15,19 2,2 1,6 1,0 0,8 1,6 1,3
254 36000 44000 2100 94 94 160 160 200 200 250 32,5 345 26 650 8 10 56,404 14,302 14,497 2,2 1,6 1,0 0,8 1,8 1,5
254 36000 44000 2100 94 94 160 160 200 200 300 32,5 345 26 700 8 10 60,22 13,163 13,328 2,2 1,6 1,0 0,8 2,2 1,8
CAD Größe/Size
TKN HD
ft-lbs
TKN HT
ft-lbs
nmax
rpm
d1min
inch
d2min
inch
d1max
inch
d2max
inch
C1
inch
C2
inch
E
inch
H3
inch

D1


inch
L2
inch
L
inch
nSc
pcs.
L8
inch
GWsp
lbs
CTdynHD
106ft-lbs/rad
CTdynHT
106ft-lbs/rad
ΔKaHD
inch
ΔKaHT
inch
ΔKwHD
°
ΔKwHT
°
ΔKrHD
inch
ΔKrHT
inch
  82 553.178 774.449 3600 1.496 1.496 2.362 2.362 2.165 2.165 3.937 0.413 4.567 0.394 8.268 6 0.157 4.389 0.200 0.227 0.055 0.031 2 1.4 0.055 0.043
  82 553.178 774.449 3600 1.496 1.496 2.362 2.362 2.165 2.165 5.512 0.413 4.567 0.394 9.843 6 0.157 5.046 0.181 0.204 0.055 0.031 2 1.4 0.083 0.059
  82 553.178 774.449 3600 1.496 1.496 2.362 2.362 2.165 2.165 7.087 0.413 4.567 0.394 11.417 6 0.157 5.701 0.167 0.185 0.055 0.031 2 1.4 0.110 0.083
  98 995.720 1290.748 3600 1.969 1.969 2.756 2.756 2.362 2.362 3.937 0.472 5.531 0.433 8.661 6 0.209 7.028 0.378 0.401 0.079 0.047 2 1.4 0.059 0.039
  98 995.720 1290.748 3600 1.969 1.969 2.756 2.756 2.362 2.362 5.512 0.472 5.531 0.433 10.236 6 0.209 7.996 0.346 0.364 0.079 0.047 2 1.4 0.083 0.059
  98 995.720 1290.748 3600 1.969 1.969 2.756 2.756 2.362 2.362 7.087 0.472 5.531 0.433 11.811 6 0.209 8.964 0.319 0.355 0.079 0.047 2 1.4 0.110 0.079
  118 1770.168 2212.710 3600 1.969 1.969 2.953 2.953 2.953 2.953 3.937 0.512 6.555 0.472 9.843 6 0.209 10.745 0.674 0.699 0.094 0.063 2 1.4 0.055 0.039
  118 1770.168 2212.710 3600 1.969 1.969 2.953 2.953 2.953 2.953 5.512 0.512 6.555 0.472 11.417 6 0.209 12.289 0.631 0.652 0.094 0.063 2 1.4 0.083 0.059
  118 1770.168 2212.710 3600 1.969 1.969 2.953 2.953 2.953 2.953 7.087 0.512 6.555 0.472 12.992 6 0.209 13.834 0.592 0.611 0.094 0.063 2 1.4 0.110 0.079
  141 2950.280 3835.364 3400 2.559 2.559 3.740 3.740 3.543 3.543 5.512 0.591 7.815 0.551 12.598 6 0.295 17.514 0.963 1.005 0.110 0.063 2 1.4 0.079 0.059
  141 2950.280 3835.364 3400 2.559 2.559 3.740 3.740 3.543 3.543 7.087 0.591 7.815 0.551 14.173 6 0.295 19.220 0.907 0.943 0.110 0.063 2 1.4 0.106 0.079
  169 4794.205 6269.345 3000 2.559 2.559 4.134 4.134 4.921 4.921 5.512 0.827 9.370 0.630 15.354 6 0.394 31.259 1.820 2.239 0.118 0.094 2 1.4 0.079 0.055
  169 4794.205 6269.345 3000 2.559 2.559 4.134 4.134 4.921 4.921 7.087 0.827 9.370 0.630 16.929 6 0.394 34.738 1.752 2.138 0.118 0.094 2 1.4 0.102 0.075
  169 4794.205 6269.345 3000 2.559 2.559 4.134 4.134 4.921 4.921 9.843 0.827 9.370 0.630 19.685 6 0.394 40.830 1.646 1.981 0.118 0.094 2 1.4 0.150 0.106
  205 15488.970 19176.820 2500 3.740 3.740 5.709 5.709 6.299 6.299 7.874 1.102 11.614 0.866 20.472 8 0.394 72.067 6.635 6.743 0.087 0.047 1 0.8 0.055 0.047
  205 15488.970 19176.820 2500 3.740 3.740 5.709 5.709 6.299 6.299 9.843 1.102 11.614 0.866 22.441 8 0.394 78.240 6.097 6.188 0.087 0.047 1 0.8 0.071 0.059
  254 26552.520 32453.080 2100 3.701 3.701 6.299 6.299 7.874 7.874 8.819 1.280 13.583 1.024 24.567 8 0.394 119.976 11.046 11.205 0.087 0.063 1 0.8 0.063 0.051
  254 26552.520 32453.080 2100 3.701 3.701 6.299 6.299 7.874 7.874 9.843 1.280 13.583 1.024 25.591 8 0.394 124.350 10.550 10.693 0.087 0.063 1 0.8 0.071 0.059
  254 26552.520 32453.080 2100 3.701 3.701 6.299 6.299 7.874 7.874 11.811 1.280 13.583 1.024 27.559 8 0.394 132.762 9.709 9.831 0.087 0.063 1 0.8 0.087 0.071

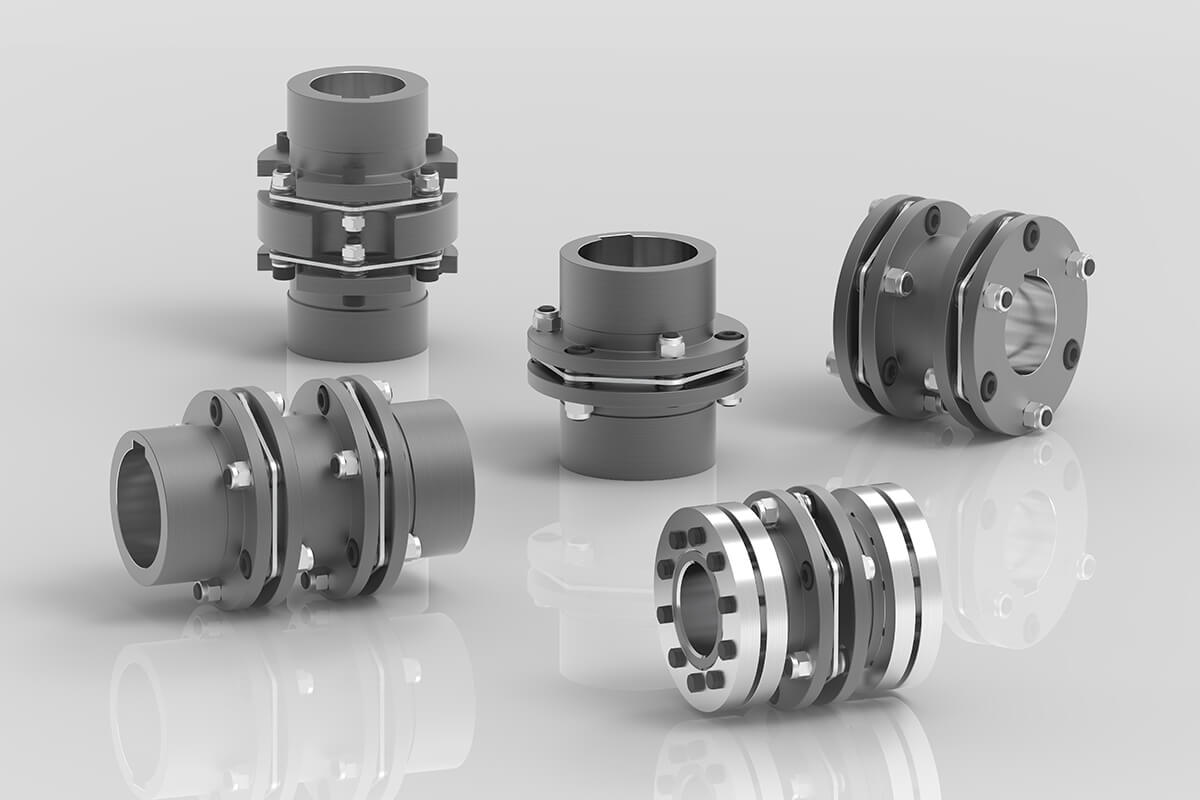

Steel Disc Couplings TND: Smart Modular System for Maximum Flexibility | RINGFEDER®

Smart Modular System

Thanks to the unitized design of the RINGFEDER® TND series and the accompanying highly flexible modular system, consisting of several disc pack and hub types, mounting options as well as spacer variants and lengths, there is always one coupling version available that is optimally suited for your individual application. Furthermore, customized special solutions can also be realized at short delivery times in specific case of need. For example, in addition to other hub combinations and the replacement of hubs by connecting flanges, functional supplements like brake disks or drums as well as anti-flail devices are also possible.

Downloads

Product Paper Steel Disc Couplings RINGFEDER® TND

Product Paper Steel Disc Couplings RINGFEDER® TND

Tech Paper Steel Disc Couplings RINGFEDER® TND XDX

Tech Paper Steel Disc Couplings RINGFEDER® TND XDX

RINGFEDER® Product Guide

RINGFEDER® Product Guide

Further downloads including certificates, instruction manuals and product images are available to you in our Download Center:

Downloads

Your Contact to Us

You like to receive an offer, have specific questions, require technical support or you are interested in a customized solution? Our experts in Engineering and Sales are more than happy to assist you. We look forward to your inquiry! Because excellent solutions always start with excellent guidance.

Contact us quickly and easily via our request form, by e-mail or telephone, or also using the "Need Help?" feature at the bottom right of this site.
