Steel Disc Couplings TND HDV | RINGFEDER®

Combination of Standard Hub and Inverted Hub, Double-Jointed, with Spacer, Shaft-Hub Connection by Keyway according to DIN 6885-1

  • 9 Sizes
  • Max. Bore Diameter d1: 32-175 mm (1.259-6.889 inch); d2: 25-120 mm (0.984-4.724 inch)
  • Max. Outer Diameter D1: 70.5-345 mm (2.776-13.583 inch)
  • Hub Distance E: 60-300 mm (2.362-11.811 inch)
  • Overall Length L: 105-526 mm (4.134-20.709 inch)
  • Rot. Speed nmax: 2,500-12,200 1/min
  • Torque TKN: 170-44,000 Nm (125.36-32,452.73 ft·lb)

Request
Data & CAD
Downloads

Product Characteristics

Your Benefits

The type RINGFEDER® TND HDV is a torsionally stiff, backlash-free steel disc coupling consisting of a standard hub H and an inverted hub V, connected by a spacer D in standardized or individually customized length. Using high-strength screws, one disc pack each is connected to the spacer and one hub, thus achieving the function of a double-cardanic system.

Depending on the coupling size, two different disc packs are available:

  • Type HD (= High Deflection) for increased compensation capability at occurring shaft misalignments.
  • Type HT (= High Torque) with larger power density for higher requirements on transmissible torque.

The double-jointed design with two disc packs compensates for radial (adjustable via the spacer length), angular and axial shaft misalignments.



Steel disc couplings of the RINGFEDER® TND HDV type are particularly convincing due to the following features:

  • Completely backlash- and maintenance-free
  • Highly effective compensation of angular, axial and radial shaft misalignment
  • Torsionally rigid with high torsional stiffness
  • Low restoring forces in case of shaft misalignment due to optimum disc pack design
  • Bridging of large shaft distances by means of spacers in various standard and freely customizable special lengths
  • Bore diameter in standard hub H d1 up to 175 mm (6.889 inch), in inverted hub V d2 up to 120 mm (4.724 inch)
  • Transmissible torque TKN up to 44,000 Nm (32,452.73 ft·lb) / Tkmax up to 77,000 Nm (56,792.29 ft·lb)
  • Rotational speeds depending on spacer length nmax up to 12,200 1/min
  • Efficient realization of customer-specific solutions at short delivery times thanks to modular design



ATEX Compliance

For maximum safety in explosion-endangered areas, RINGFEDER® Steel Disc Couplings can of course be supplied in compliance with ATEX according to Product Directive 2014/34/EU and DIN EN ISO 80079-36:2016 if required.



Main Areas of Use

  • Pumps
  • Fans
  • Compressors
  • Generator and Turbine Drives
  • Axial and Radial Blowers
  • Paper and Printing Machines
  • Mixers and Stirrers
  • Extruders
  • Lifting and Traversing Gears
  • Marine Drives
  • Water Screw Drives



Technical Information

  • Without further specifications, we deliver as standard: Bore tolerance H7; Keyway acc. to DIN 6885-1; Keyway width tolerance P9; Set screw per hub.
  • From a peripheral speed of 30 m/s, separate balancing of the individual coupling parts is recommended.
  • Without further instructions on balancing, the coupling parts are balanced individually according to DIN 21940-11 in quality G 6,3 at 1,500 1/min. The hubs are balanced half key (before grooving), the spacer without screwed-on disc packs.
  • Screwing of disc packs via hexagon socket screws (coupling size 47-141) or hexagon head screws (coupling size 169-254).

Moreover, please observe the detailed selection and operating criteria in the documents Product Paper Steel Disc Couplings RINGFEDER® TND and Tech Paper Steel Disc Couplings RINGFEDER® TND HDV.

Steel Disc Couplings TND: High-Quality Disc Packs | RINGFEDER®

High-Quality Disc Packs

The characteristic and functional key element of the powerful steel disc couplings of the RINGFEDER® TND series are disc packs developed on the basis of in-depth FEM analysis. They consist of multiple circular, torsionally flexible single discs made of stainless spring steel which are connected by means of high-precision sleeves to form a compact unit. High-strength screws alternately connect the disc packs, if necessary via mounted spacers, to the coupling hubs, so that the required torque is transmitted reliably, precisely and safely by the steel discs which are loaded by tension and compression. At the same time, this ensures the desired compensation capability for angular, axial and, depending on the coupling type, also radial shaft misalignments at minimum restoring forces.

Technical Data & CAD Models

Download of CAD data is available to you after login with your personal Customer or Distributor Account. You do not have an account yet? Register here without any costs or obligations.

CAD
Größe/Size
TKN HD
Nm
TKN HT
Nm
nmax
1/min
dpre
mm
d1kmax
mm
d2kmax
mm
C1
mm
C2
mm
EI1
mm
E
mm
H3
mm

D1


mm
D2
mm
D4
mm
L2
mm
L
mm
SB
mm
SD
mm
nSc
Stück
Gwsb
kg
Jsb
10-3kgm2
CTdynHD
106Nm/rad
CTdynHT
106Nm/rad
ΔKaHD
mm
ΔKaHT
mm
ΔKwHD
°
ΔKwHT
°
ΔKrHD
mm
ΔKrHT
mm
47 170 230 12200 10 32 25 39,5 39,5 65,5 100 7,5 70,5 47 37 5 145 7 24 6 1,6 0,75 0,059 0,062 1 0,6 2 1,4 1,5 1,1
47 170 230 12200 10 32 25 39,5 39,5 105,5 140 7,5 70,5 47 37 5 185 7 24 6 1,7 0,8 0,051 0,053 1 0,6 2 1,4 2,2 1,5
47 170 230 12200 10 32 25 39,5 39,5 25,5 60 7,5 70,5 47 37 5 105 7 24 6 1,4 0,69 0,071 0,075 1,0 0,6 2 1,4 0,8 0,6
63 320 420 9900 14 42 32 45 45 33 70 9 88 62,5 48 8 123 9 32 6 2,9 2,33 0,123 0,134 1,0 0,8 2 1,4 1 0,7
63 320 420 9900 14 42 32 45 45 43 80 9 88 62,5 48 8 133 9 32 6 2,9 2,37 0,123 0,134 1 0,8 2 1,4 1,1 0,8
63 320 420 9900 14 42 32 45 45 63 100 9 88 62,5 48 8 153 9 32 6 3 2,46 0,116 0,127 1 0,8 2 1,4 1,5 1,1
63 320 420 9900 14 42 32 45 45 103 140 9 88 62,5 48 8 193 9 32 6 3,2 2,63 0,105 0,114 1 0,8 2 1,4 2,1 1,6
82 750 1050 7500 15 55 44 55 55 95 140 10,5 116 82 64 10 205 11 40 6 6,7 9,23 0,246 0,277 1,4 0,8 2 1,4 2,1 1,5
82 750 1050 7500 15 55 44 55 55 135 180 10,5 116 82 64 10 245 11 40 6 7 9,65 0,226 0,251 1,4 0,8 2 1,4 2,8 2,1
82 750 1050 7500 15 55 44 55 55 55 100 10,5 116 82 64 10 165 11 40 6 5,4 8,83 0,271 0,308 1,4 0,8 2 1,4 1,4 1,1
98 1350 1750 6200 19 65 50 60 60 51 100 12 140,5 98 77 11 171 15 47 6 9,9 20,35 0,513 0,543 2,0 1,2 2 1,4 1,5 1
98 1350 1750 6200 19 65 50 60 60 91 140 12 140,5 98 77 11 211 15 47 6 10,4 21,21 0,469 0,494 2 1,2 2 1,4 2,1 1,5
98 1350 1750 6200 19 65 50 60 60 131 180 12 140,5 98 77 11 251 15 47 6 10,8 22,07 0,433 0,454 2 1,2 2 1,4 2,8 2
118 2400 3000 5250 25 85 60 75 75 117 180 13 166,5 118 90,5 12 267 17 55 6 17,3 50,39 0,803 0,829 2,4 1,6 2 1,4 2,8 2
118 2400 3000 5250 25 85 60 75 75 37 100 13 166,5 118 90,5 12 187 17 55 6 16 46,28 0,914 0,948 2,4 1,6 2 1,4 1,4 1
118 2400 3000 5250 25 85 60 75 75 77 140 13 166,5 118 90,5 12 227 17 55 6 16,7 48,34 0,855 0,884 2,4 1,6 2 1,4 2,1 1,5
141 4000 5200 4400 30 95 75 90 90 64 140 15 198,5 141 114 14 244 18 64 6 26,4 98,01 1,306 1,362 2,8 1,6 2 1,4 2 1,5
141 4000 5200 4400 30 95 75 90 90 104 180 15 198,5 141 114 14 284 18 64 6 28,5 105,33 1,229 1,279 2,8 1,6 2 1,4 2,7 2
169 6500 8500 3650 39 115 90 125 125 71 180 21 238 169 135 16 321 24 81 6 52,3 299,74 2,375 2,898 3 2,4 2 1,4 2,6 1,9
169 6500 8500 3650 39 115 90 125 125 31 140 21 238 169 135 16 281 24 81 6 50,7 289,79 2,467 3,035 3 2,4 2 1,4 2 1,4
169 6500 8500 3650 39 115 90 125 125 141 250 21 238 169 135 16 391 24 81 6 55 317,15 2,231 2,686 3 2,4 2 1,4 3,8 2,7
205 21000 26000 2950 59 140 115 160 160 62 200 28 295 205 170 22 382 27 112 8 105 951,03 8,995 9,142 2,2 1,2 1 0,8 1,4 1,2
205 21000 26000 2950 59 140 115 160 160 112 250 28 295 205 170 22 432 27 112 8 107,8 975,71 8,265 8,389 2,2 1,2 1 0,8 1,8 1,5
254 36000 44000 2500 79 175 120 200 200 50 224 32,5 345 254 180 26 450 29 133 8 169,2 2131,73 14,975 15,19 2,2 1,6 1 0,8 1,6 1,3
254 36000 44000 2500 79 175 120 200 200 76 250 32,5 345 254 180 26 476 29 133 8 171,2 2152,56 14,302 14,497 2,2 1,6 1 0,8 1,8 1,5
254 36000 44000 2500 79 175 120 200 200 126 300 32,5 345 254 180 26 526 29 133 8 175 2192,61 13,163 13,328 2,2 1,6 1 0,8 2,2 1,8
CAD Größe/Size
 		TKN HD
ft-lbs 		TKN HT
ft-lbs 		nmax
rpm 		dpre
inch 		d1kmax
inch 		d2kmax
inch 		C1
inch 		C2
inch 		EI1
inch 		E
inch 		H3
inch

D1


inch 		D2
inch 		D4
inch 		L2
inch 		L
inch 		SB
inch 		SD
inch 		nSc
pcs. 		Gwsb
lbs 		Jsb
lbs-in2 		CTdynHD
106ft-lbs/rad 		CTdynHT
106ft-lbs/rad 		ΔKaHD
inch 		ΔKaHT
inch 		ΔKwHD
° 		ΔKwHT
° 		ΔKrHD
inch 		ΔKrHT
inch
  47 125.387 169.641 12200 0.394 1.260 0.984 1.555 1.555 2.579 3.937 0.295 2.776 1.850 1.457 0.197 5.709 0.276 0.945 6 3.527 2.563 0.052 0.055 0.039 0.024 0.079 0.055 0.059 0.043
  47 125.387 169.641 12200 0.394 1.260 0.984 1.555 1.555 4.154 5.512 0.295 2.776 1.850 1.457 0.197 7.283 0.276 0.945 6 3.748 2.734 0.044 0.046 0.039 0.024 0.079 0.055 0.087 0.059
  47 125.387 169.641 12200 0.394 1.260 0.984 1.555 1.555 1.004 2.362 0.295 2.776 1.850 1.457 0.197 4.134 0.276 0.945 6 3.086 2.358 0.052 0.055 0.039 0.024 0.079 0.055 0.031 0.024
  63 236.022 309.779 9900 0.551 1.654 1.260 1.772 1.772 1.299 2.756 0.354 3.465 2.461 1.890 0.315 4.843 0.354 1.260 6 6.393 7.962 0.093 0.103 0.039 0.031 0.079 0.055 0.039 0.028
  63 236.022 309.779 9900 0.551 1.654 1.260 1.772 1.772 1.693 3.150 0.354 3.465 2.461 1.890 0.315 5.236 0.354 1.260 6 6.393 8.098 0.077 0.084 0.039 0.031 0.079 0.055 0.043 0.031
  63 236.022 309.779 9900 0.551 1.654 1.260 1.772 1.772 2.480 3.937 0.354 3.465 2.461 1.890 0.315 6.024 0.354 1.260 6 6.614 8.406 0.091 0.099 0.039 0.031 0.079 0.055 0.059 0.043
  63 236.022 309.779 9900 0.551 1.654 1.260 1.772 1.772 4.055 5.512 0.354 3.465 2.461 1.890 0.315 7.598 0.354 1.260 6 7.055 8.987 0.086 0.094 0.039 0.031 0.079 0.055 0.083 0.063
  82 553.178 774.449 7500 0.591 2.165 1.732 2.165 2.165 3.740 5.512 0.413 4.567 3.228 2.520 0.394 8.071 0.433 1.575 6 14.771 31.539 0.167 0.185 0.055 0.031 0.079 0.055 0.083 0.059
  82 553.178 774.449 7500 0.591 2.165 1.732 2.165 2.165 5.315 7.087 0.413 4.567 3.228 2.520 0.394 9.646 0.433 1.575 6 15.432 32.974 0.200 0.227 0.055 0.031 0.079 0.055 0.110 0.083
  82 553.178 774.449 7500 0.591 2.165 1.732 2.165 2.165 2.165 3.937 0.413 4.567 3.228 2.520 0.394 6.496 0.433 1.575 6 11.905 30.172 0.181 0.204 0.055 0.031 0.079 0.055 0.055 0.043
  98 995.720 1290.748 6200 0.748 2.559 1.969 2.362 2.362 2.008 3.937 0.472 5.531 3.858 3.031 0.433 6.732 0.591 1.850 6 21.826 69.536 0.378 0.401 0.079 0.047 0.079 0.055 0.059 0.039
  98 995.720 1290.748 6200 0.748 2.559 1.969 2.362 2.362 3.583 5.512 0.472 5.531 3.858 3.031 0.433 8.307 0.591 1.850 6 22.928 72.475 0.319 0.335 0.079 0.047 0.079 0.055 0.083 0.059
  98 995.720 1290.748 6200 0.748 2.559 1.969 2.362 2.362 5.157 7.087 0.472 5.531 3.858 3.031 0.433 9.882 0.591 1.850 6 23.810 75.413 0.346 0.364 0.079 0.047 0.079 0.055 0.110 0.079
  118 1770.168 2212.710 5250 0.984 3.346 2.362 2.953 2.953 4.606 7.087 0.512 6.555 4.646 3.563 0.472 10.512 0.669 2.165 6 38.140 172.183 0.592 0.611 0.094 0.063 0.079 0.055 0.110 0.079
  118 1770.168 2212.710 5250 0.984 3.346 2.362 2.953 2.953 1.457 3.937 0.512 6.555 4.646 3.563 0.472 7.362 0.669 2.165 6 35.274 158.139 0.674 0.699 0.094 0.063 0.079 0.055 0.055 0.039
  118 1770.168 2212.710 5250 0.984 3.346 2.362 2.953 2.953 3.031 5.512 0.512 6.555 4.646 3.563 0.472 8.937 0.669 2.165 6 36.817 165.178 0.631 0.652 0.094 0.063 0.079 0.055 0.083 0.059
  141 2950.280 3835.364 4400 1.181 3.740 2.953 3.543 3.543 2.520 5.512 0.591 7.815 5.551 4.488 0.551 9.606 0.709 2.520 6 58.202 334.900 0.963 1.005 0.110 0.063 0.079 0.055 0.079 0.059
  141 2950.280 3835.364 4400 1.181 3.740 2.953 3.543 3.543 4.094 7.087 0.591 7.815 5.551 4.488 0.551 11.181 0.709 2.520 6 62.832 359.913 0.907 0.943 0.110 0.063 0.079 0.055 0.106 0.079
  169 4794.205 6269.345 3650 1.535 4.528 3.543 4.921 4.921 2.795 7.087 0.827 9.370 6.654 5.315 0.630 12.638 0.945 3.189 6 115.302 1024.212 1.820 2.239 0.118 0.094 0.079 0.055 0.102 0.075
  169 4794.205 6269.345 3650 1.535 4.528 3.543 4.921 4.921 1.220 5.512 0.827 9.370 6.654 5.315 0.630 11.063 0.945 3.189 6 111.774 990.212 1.752 2.138 0.118 0.094 0.079 0.055 0.079 0.055
  169 4794.205 6269.345 3650 1.535 4.528 3.543 4.921 4.921 5.551 9.843 0.827 9.370 6.654 5.315 0.630 15.394 0.945 3.189 6 121.254 1083.702 1.646 1.981 0.118 0.094 0.079 0.055 0.150 0.106
  205 15488.970 19176.820 2950 2.323 5.512 4.528 6.299 6.299 2.441 7.874 1.102 11.614 8.071 6.693 0.866 15.039 1.063 4.409 8 231.486 3249.670 6.635 6.743 0.087 0.047 0.039 0.031 0.055 0.047
  205 15488.970 19176.820 2950 2.323 5.512 4.528 6.299 6.299 4.409 9.843 1.102 11.614 8.071 6.693 0.866 17.008 1.063 4.409 8 237.659 3334.001 6.097 6.188 0.087 0.047 0.039 0.031 0.071 0.059
  254 26552.520 32453.080 2500 3.110 6.890 4.724 7.874 7.874 1.969 8.819 1.280 13.583 10.000 7.087 1.024 17.717 1.142 5.236 8 373.022 7284.121 11.046 11.205 0.087 0.063 0.039 0.031 0.063 0.051
  254 26552.520 32453.080 2500 3.110 6.890 4.724 7.874 7.874 2.992 9.843 1.280 13.583 10.000 7.087 1.024 18.740 1.142 5.236 8 377.432 7355.298 10.550 10.693 0.087 0.063 0.039 0.031 0.071 0.059
  254 26552.520 32453.080 2500 3.110 6.890 4.724 7.874 7.874 4.961 11.811 1.280 13.583 10.000 7.087 1.024 20.709 1.142 5.236 8 385.809 7492.148 9.709 9.831 0.087 0.063 0.039 0.031 0.087 0.071

Images & Drawings

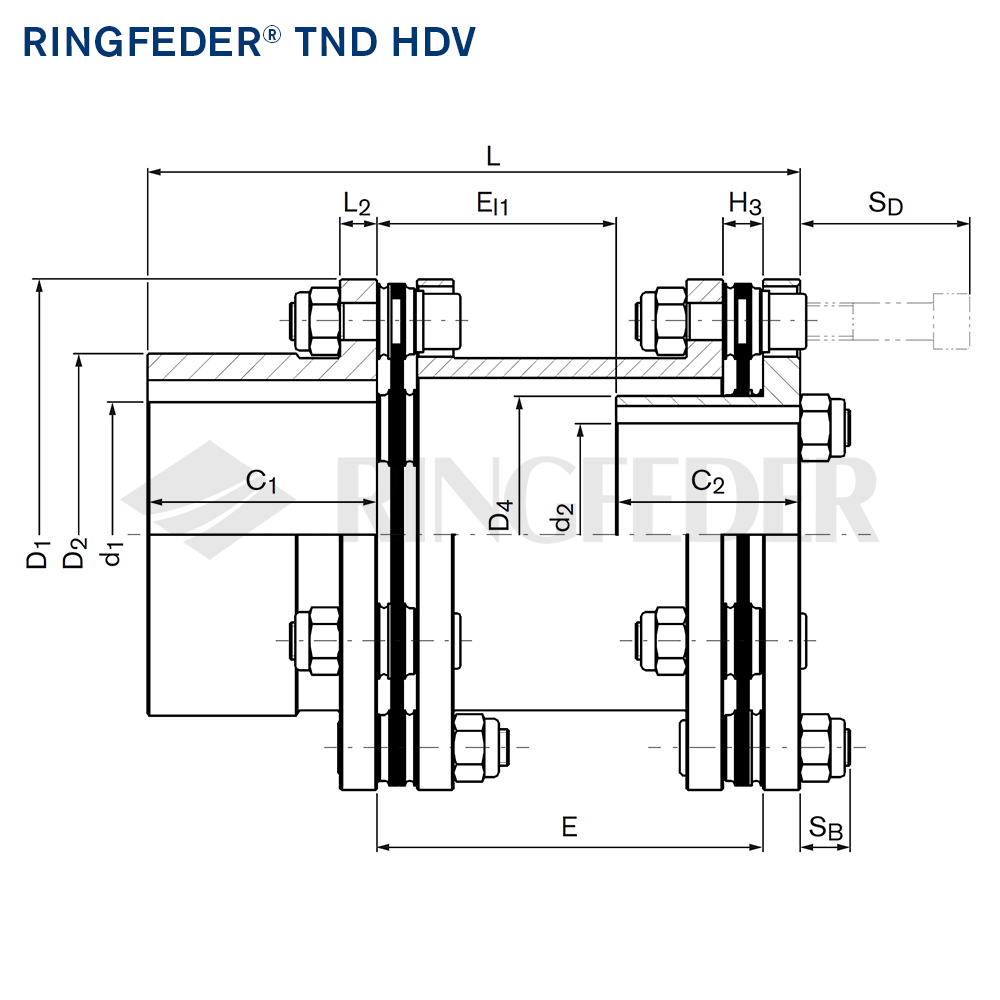

Dimensions Dimensions
H-Hub Front View H-Hub Front View
V-Hub Back View V-Hub Back View
Spacer D Spacer D
Steel Disc Couplings TND: Smart Modular System for Maximum Flexibility | RINGFEDER®

Smart Modular System

Thanks to the unitized design of the RINGFEDER® TND series and the accompanying highly flexible modular system, consisting of several disc pack and hub types, mounting options as well as spacer variants and lengths, there is always one coupling version available that is optimally suited for your individual application. Furthermore, customized special solutions can also be realized at short delivery times in specific case of need. For example, in addition to other hub combinations and the replacement of hubs by connecting flanges, functional supplements like brake disks or drums as well as anti-flail devices are also possible.
