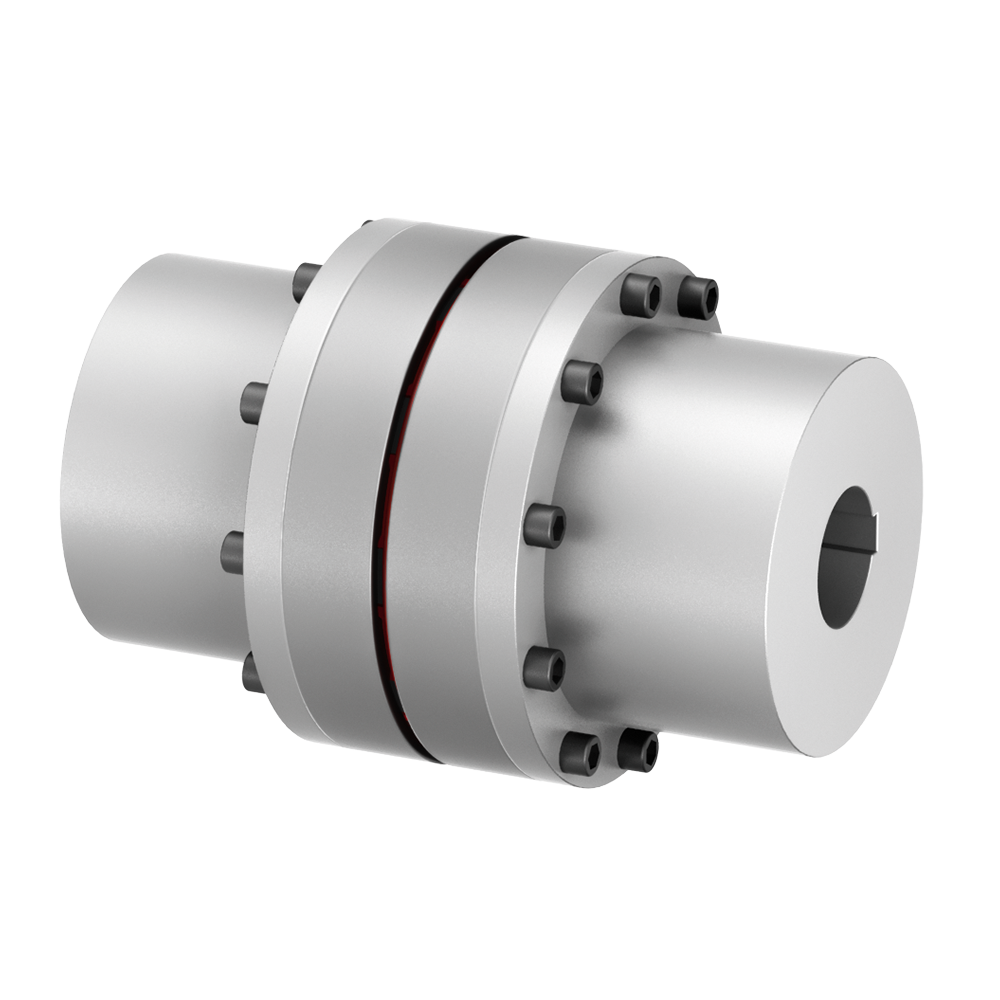

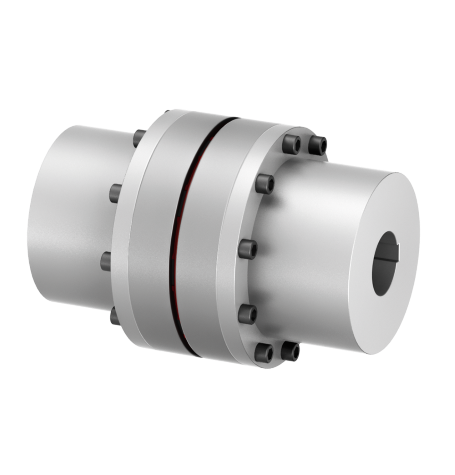

Elastomer Jaw Couplings TNM H

RINGFEDER^® TNM H

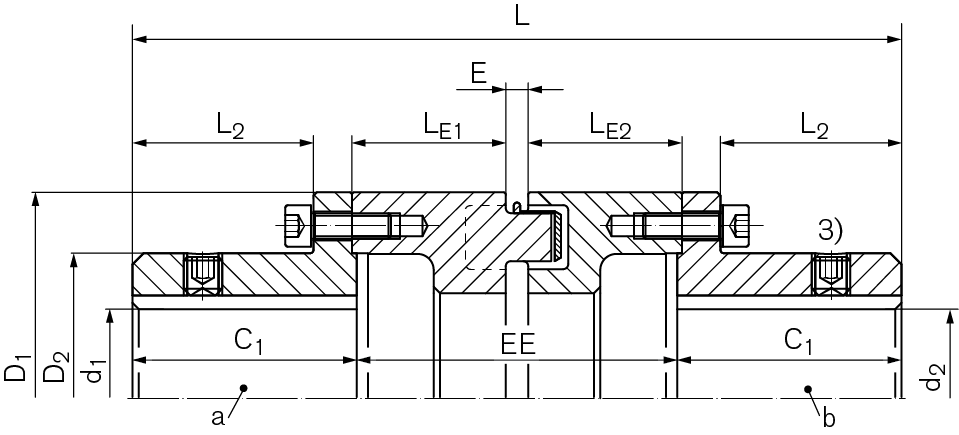

Multi-part design, to remove the intermediate spacer. Disassembly of the pump impeller without axial movement of the driven parts. Elastic intermediate ring in different hardnesses: standard Pb72, hard Pb82.

General features

• Torsionally flexible, compensate for angular, radial and axial shaft misalignment
• Intermediate rings loaded in compression
• Elastomers available in various shore hardness degrees
• Suitable for temperatures from –30°C to +100°C
• The elastic ring can be replaced without having to move the coupled machines (multi-part models)
• Bores up to max. 150 mm
• Torques up to T_Kn = 9,900 Nm / T_Kmax = 23,400 Nm
• Speeds up to n_max = 5,000 rpm



INTRODUCTION

The rotationally resilient coupling of the RINGFEDER^® TNM series is flexible in all directions and therefore compensates for angular, parallel and axial shaft misalignments of the connected machines. Misalignments can be caused, for example, by inaccurate assembly, heat movements or settling phenomena.

Avoiding Torsional Vibration

By virtue of the rotational resilience of the coupling, dangerous torsional vibrations from the operational range of plant machinery can be transferred to rotational speed ranges in which no negative effects are to be expected. The elastic intermediate rings possess a high material damping capability which makes it possible for the couplings to keep the resonance enhancements within limits when passing through dangerous speed ranges, thereby protecting the coupled machines against damage. The couplings also mitigate torque shocks and cause a vibrating system that has been excited by an impact to come to rest very quickly due to the material damping qualities. The conduction of structure-borne noise is prevented.

Elastomer Materials

Synthetic rubbers are used for the elastic elements of the TNM couplings. As a rule these are electrically conductive and therefore prevent undesirable static charges. For the elastic elements of the RINGFEDER^® TNM coupling series, there are two different material hardnesses available as standard.

Pb 72- Nitril-Butadien-Kautschuk (NBR) mit einer Härte von 72 Shore A.
Pb 82- Nitril-Butadien-Kautschuk (NBR) mit einer Härte von 82 Shore A.
Die Belastbarkeit der einzelnen Elastomer-Werkstoffe wird durch ihre Shore- Härte bestimmt. Aus der Höhe dieser Werte kann man indirekt auf die übertragbaren Drehmomente der Kupplung und auf deren Federsteifigkeiten schließen. Näheres siehe technisches Datenblatt.

Environmental conditions

The employed elastomer materials operate reliably in ambient temperature ranges of –30° to +100°C. Please contact RINGFEDER POWER TRANSMISSION if higher ambient temperatures are involved. The influence of the temperature on the coupling size selection is explained in more detail in the below-mentioned design directives. It is only allowed to operate the coupling in normal industrial air. Aggressive media may attack the coupling components, bolts and elastic elements, and, therefore, present a danger to the operational safety of the coupling. The coupling can be declared compliant with the European Directive 2014/34/EU (ATEX). Please contact RINGFEDER POWER TRANSMISSION regarding the declaration of conformity according to 2014/34/EU and the effects of aggressive ambient media.
