Metal Bellows Couplings GWB AKN | RINGFEDER®

The metal bellows couplings from the 'AKN' series boast trusted quality and increased torsional stiffness. The reduced shafts in the element guarantee for high stiffness while at the same time compensating angular, axial and radial misalignments. The shaft connection is established by means of clamping hubs on both sides.

Download
Request

GWB AKN

CAD data download is available after login.

CAD
Size
L
mm
d1min
mm
d1max
mm
H
mm
T
Nm
nmax
1/min
ΔKa
mm
ΔKw
Grad
ΔKr
mm
DG1
mm
TA1
Nm
18 63 8 26 48 22 12700 0,5 1,5 0,2 5 6
30 65 10 30 56 36 10200 0,4 1,0 0,1 6 12
60 78 12 35 67 75 8600 0,4 1,0 0,1 8 30
80 90 14 42 84 95 6800 0,4 1,0 0,2 10 60
150 90 14 42 84 180 6800 0,4 1,0 0,2 10 85
200 99 22 46 93 240 6300 0,4 1,0 0,2 12 100
300 104 24 60 110 360 5900 0,4 1,0 0,2 12 120
500 111 35 64 122 600 4900 0,5 1,0 0,2 14 190
CAD Size
 		L
inch 		d1min
inch 		d1max
inch 		H
inch 		T
ft-lbs 		nmax
rpm 		ΔKa
inch 		ΔKw
degree 		ΔKr
inch 		DG1
mm 		TA1
ft-lbs
  18 2.480 0.315 1.024 1.850 16 12700 0.02 1.5 0.008 5 4.5
  30 2.559 0.394 1.181 2.205 27 10200 0.016 1.0 0.004 6 9
  60 3.071 0.472 1.378 2.638 55 8600 0.016 1.0 0.004 8 22
  80 3.543 0.551 1.654 3.307 70 6800 0.016 1.0 0.008 10 45
  150 3.543 0.551 1.654 3.307 133 6800 0.016 1.0 0.008 10 63
  200 3.898 0.866 1.811 3.661 177 6300 0.016 1.0 0.008 12 74
  300 4.094 0.945 2.362 4.331 266 5900 0.016 1.0 0.008 12 86
  500 4.370 1.378 2.520 4.803 443 4900 0.02 1.0 0.008 14 140

Images & Drawings

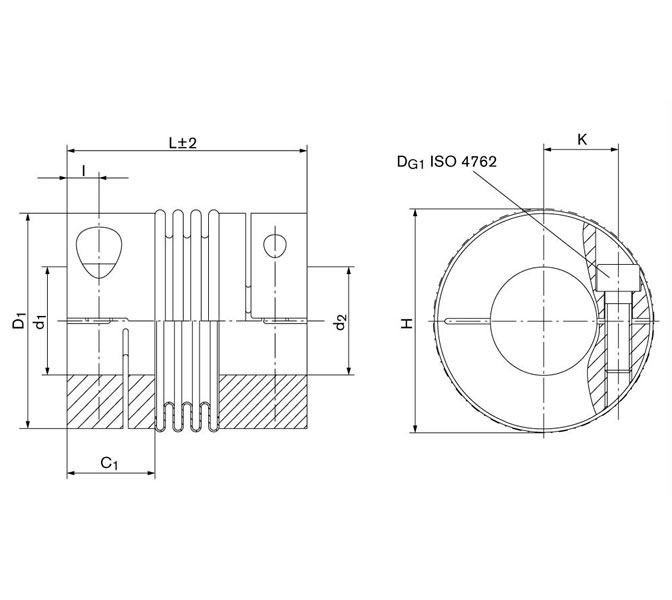

Dimensions Dimensions

Characteristics

  • Backlash-free transmission of torque
  • High torsional stiffness, precision of transmission of rotational angle
  • Different torsional stiffness
  • Compact design, low moment of inertia
  • Metal bellows made of stainless steel
  • Simple and safe assembly
  • Compensation of radial, axial and angular misalignment
  • Free of wear, maintenance-free, no downtimes
  • Not sensitive to temperatures between -30°C and +100°C
  • Nominal torques between 0,1 – 5000 Nm

Advantages

  • 100% inspection and traceability through individual marking
  • Higher torques at same dimensions
  • Compact design
  • Extended bore ranges
  • Customer-specific solutions
  • Higher safety in application, e.g. no wrong screw tightening torques

Backlash-free Metal Bellows Couplings are used in the sector of mechanical engineering, where a torque or a rotary motion has to be transmitted from shaft to shaft in highest accuracy of angle.

  • Pumps with axial and vertical drives
  • High dynamic portal drives
  • Spindle lifting units
  • Linear units
  • Packaging machines
  • Machine tools
  • Special machines

Series AKN

  • Metal bellows coupling with clamping hubs, short length and higher torsional stiffness

Characteristics

  • Metal bellows made of stainless steel, hubs made of aluminum
  • The shaft tolerance should be within the fit tolerance “g6” or “h7”
  • The contact surfaces have to be free from oil and grease
  • Optional designs with keyway DIN 6885-1
  • Optional special design in stainless steel
