Gear Couplings TNZ ZCAF / TNZ ZCBF

Intermediate shaft and rigid counter-ﬂanges

The model RINGFEDER^® TNZ ZCAF is composed from the coupling halves of the coupling TNZ ZCA and is complemented by an intermediate shaft and two rigid counter-ﬂanges. If required, the torsional stiffness of the shaft can be tuned to the dynamic behavior of the drive line. In addition, the intermediate shaft, which serves to accommodate longer shaft separations, can be mounted and dismounted radially with- out having to move the connected machines.

The model RINGFEDER^® TNZ ZCBF is composed from the coupling halves of the coupling TNZ ZCB and is complemented by an intermediate shaft and two rigid counter-ﬂanges. If required, the torsional stiffness of the shaft can be tuned to the dynamic behavior of the drive line. In addition, the intermediate shaft, which serves to accommodate longer shaft separations, can be mounted and dismounted radially without having to move the connected machines.

Download

Request

Technical Data & CAD Models

You require CAD data for this TNZ type? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.

Size	Identifier ZCA	T_KN Nm	n_max 1/min	d_3kmin mm	d_3kmax mm	D₁ mm	D₆ mm	L mm	L_7min mm	Gw_sb kg
69	XC6106	1750	Auf Anfrage / On request	12	55	111	81,5	179	86	Abhängig von / depends on E
85	XC6108	2750	Auf Anfrage / On request	18	75	152	103,5	213	100	Abhängig von / depends on E
107	XC6110	5500	Auf Anfrage / On request	28	95	178	127,5	271	124	Abhängig von / depends on E
133	XC6113	8500	Auf Anfrage / On request	40	110	213	156	325	152	Abhängig von / depends on E
152	XC6115	13500	Auf Anfrage / On request	50	130	240	181	403	180	Abhängig von / depends on E
179	XC6117	22000	Auf Anfrage / On request	60	155	280	209	466	210	Abhängig von / depends on E
209	XC6120	35000	Auf Anfrage / On request	70	180	318	245,5	530	240	Abhängig von / depends on E
234	XC6123	43000	Auf Anfrage / On request	85	200	346	274	602	270	Abhängig von / depends on E
254	XC6125	68000	Auf Anfrage / On request	95	230	389	307	700	300	Abhängig von / depends on E
279	XC6127	82000	Auf Anfrage / On request	110	250	425	334,5	806	350	Abhängig von / depends on E
305	XC6130	150000	Auf Anfrage / On request	120	280	457	366	880	380	Abhängig von / depends on E
355	XC6135	195000	Auf Anfrage / On request	130	330	527	423	1040	440	Abhängig von / depends on E

Size	Identifier ZCA	T_KN ft-lbs	n_max rpm	d_3kmin inch	d_3kmax inch	D₁ inch	D₆ inch	L inch	L_7min inch	Gw_sb lbs
69	XC6106	1291	Auf Anfrage / On request	0.472	2.165	4.370	3.209	7.047	3.386	Abhängig von / depends on E
85	XC6108	2028	Auf Anfrage / On request	0.709	2.953	5.984	4.075	8.386	3.937	0Abhängig von / depends on E
107	XC6110	4057	Auf Anfrage / On request	1.102	3.740	7.008	5.020	10.669	4.882	0Abhängig von / depends on E
133	XC6113	6269	Auf Anfrage / On request	1.575	4.331	8.386	6.142	12.795	5.984	0Abhängig von / depends on E
152	XC6115	9957	Auf Anfrage / On request	1.969	5.118	9.449	7.126	15.866	7.087	0Abhängig von / depends on E
179	XC6117	16227	Auf Anfrage / On request	2.362	6.102	11.024	8.228	18.346	8.268	0Abhängig von / depends on E
209	XC6120	25815	Auf Anfrage / On request	2.756	7.087	12.520	9.665	20.866	9.449	0Abhängig von / depends on E
234	XC6123	31716	Auf Anfrage / On request	3.346	7.874	13.622	10.787	23.701	10.630	0Abhängig von / depends on E
254	XC6125	50155	Auf Anfrage / On request	3.740	9.055	15.315	12.087	27.559	11.811	0Abhängig von / depends on E
279	XC6127	60481	Auf Anfrage / On request	4.331	9.843	16.732	13.169	31.732	13.780	0Abhängig von / depends on E
305	XC6130	110636	Auf Anfrage / On request	4.724	11.024	17.992	14.409	34.646	14.961	0Abhängig von / depends on E
355	XC6135	143826	Auf Anfrage / On request	5.118	12.992	20.748	16.654	40.945	17.323	0Abhängig von / depends on E

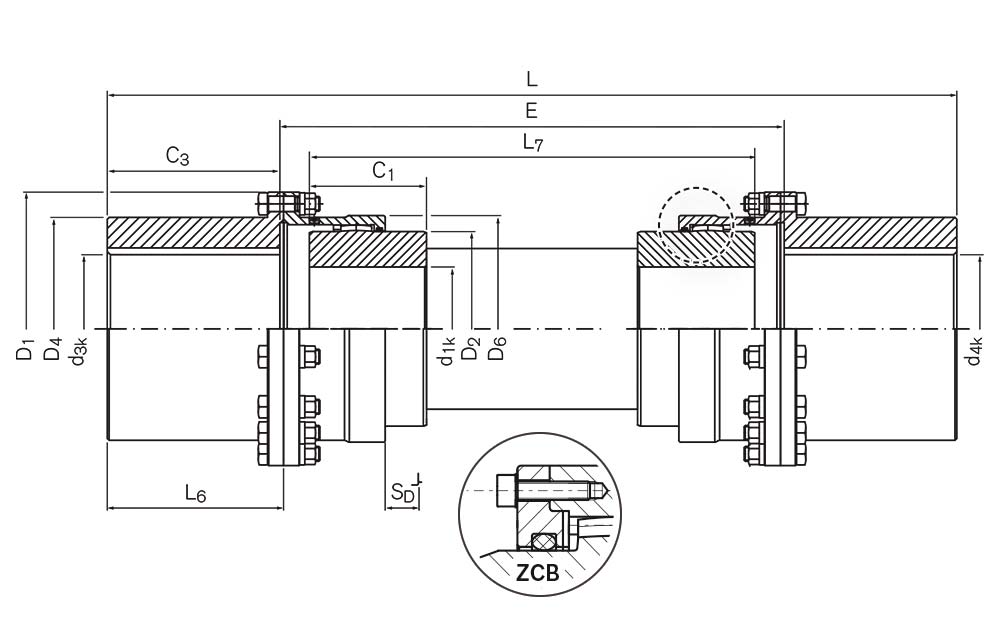

Images & Drawings

Product Characteristics

General features

Torsionally rigid gear coupling made of high-quality steel
Very compact design results in a high-power density
Compensates for angular, radial and axial shaft offset
Suitable for use in temperatures up to +120 °C if special seals are used
Available with split sleeve (ZCA / ZCB - ZCA model range also available in ZCB design) and single-piece sleeve (ZCH)
The elastic O-Ring can be replaced without having to move the coupled machines
Bores up to 270 mm
Torques up to T_Kn = 195,000 Nm / T_Kmax = 390,000 Nm
Speeds up to n_max = 6,000 rpm

General description

The RINGFEDER^® TNZ coupling is a torsionally rigid twin cardanic gear coupling.

Toothing

The coupling housings have a straight internal toothing whilst the hubs have an external toothing with a chased variable radius. As a result, the hubs can move spatially within the housing and thus compensate angular, radial and axial shaft misalignment of the adjoined shaft ends within specified tolerances. Depending on coupling type and size, the standard toothing permits an angular misalignment of up to 0.5 degrees per toothing-plane and an axial movement of several millimetres. The max. possible radial shaft displacement is dependent on the distance between the two toothing planes. Other toothing geometries can be used for further specific applications.

Materials

High-grade tooth profiles and grease with ultra high-pressure additives guarantee low-restoring forces and a long serviceable life. The material used is forged steel with an apparent yielding point of at least 335 N/mm². Special materials can be used for further specific applications. Sealing is carried out using O-Rings of synthetic rubber. The housings are centred and held together by fit-bolts and self-locking nuts.

Temperature

The use of special seals permits the temperature limit to be raised to 120 °C.

Balance

At peripheral speeds upwards of 30 m/s it is advisable to dynamically balance the coupling.

Special applications

If greater misalignments are anticipated at higher speeds and torques, an examination is necessary, performed with the assistance of a special computing programme. This is independent of the determined size. The value T_Kmax may not be exceeded in any state of operation (start-up, electrical short circuit, blocking, etc.).
