Elastomer Jaw Couplings TNS SDDL-5-BS | RINGFEDER®

The RINGFEDER® TNS SDDL-5-BS coupling is a torsionally flexible, fail-safe claw coupling with removable intermediate part comprising the claw rings with brake disk and the buffer ring. It balances out angular, radial and axial shaft misalignments within defined limits. The coupling transfers the torque via pressure loadable, elastic buffers of synthetic rubber (Pb) or polyurethane (Vk), as a standard VkR, and are connected to each other to form an elastic intermediate ring. The elastic intermediate ring can cushion impacts and torsional vibrations; it is oil-resistant. Intermediate rings made of Perbunan are electrically conductive. The two-parted construction of both coupling halves allows radial mounting and dismounting of the intermediate part. The intermediate ring and the brake disc can, therefore, be replaced without having to displace the connected machines. When the intermediate part is removed, it is easily possible to check the rotational direction of the drive. The coupling is suitable for use in every direction of rotation and installation position.

TNS SDDL-5-BS

CAD data download is available after login.

CAD

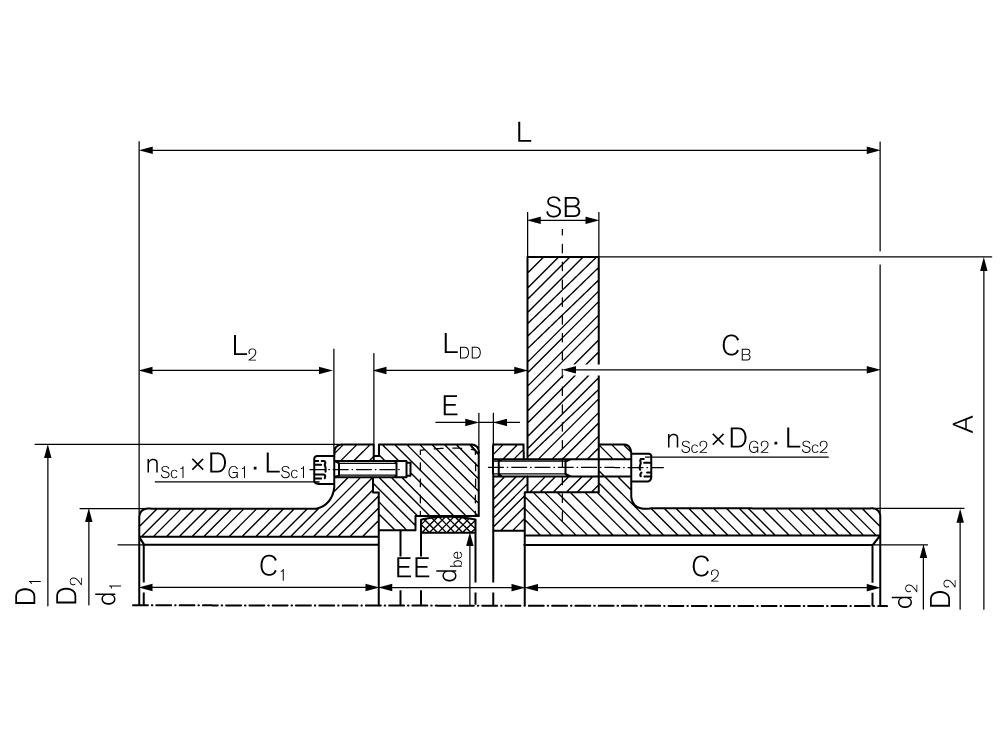

Identifier
Size
A
mm
SB
mm
TKN
Nm
nmax
1/min
d1kmax
mm
D2
mm
C1
mm
C2
mm
L
mm
Gwub
kg
WS5114-0355-30 145 355 30 600 4800 65 92 110 166,5 344,5 43,0
WS5114-0400-30 145 400 30 600 4300 65 92 110 166,5 344,5 49,3
WS5117-0400-30 170 400 30 950 4300 75 110 140 166,5 374,5 59,9
WS5117-0450-30 170 450 30 950 3750 75 110 140 166,5 374,5 67,7
WS5117-0500-30 170 500 30 950 3400 75 110 140 166,5 374,5 76,5
WS5120-0450-30 200 450 30 1650 3750 95 135 170 207 454 59,9
WS5120-0500-30 200 500 30 1650 3400 95 135 170 207 454 98,1
WS5120-0560-30 200 560 30 1650 3000 95 135 170 207 454 109,9
WS5123-0500-30 230 500 30 2580 3250 110 160 170 207,5 458,5 118,6
WS5123-0560-30 230 560 30 2580 3000 110 160 170 207,5 458,5 130,3
WS5123-0630-30 230 630 30 2580 2700 110 160 170 207,5 458,5 145,8
WS5123-0710-30 230 710 30 2580 2400 110 160 170 207,5 458,5 165,6
WS5126-0630-30 260 630 30 3980 2700 125 180 210 212,5 518,5 178,1
WS5126-0710-30 260 710 30 3980 2400 125 180 210 212,5 518,5 198,0
WS5130-0710-30 300 710 30 5850 2400 140 200 210 212,5 535,5 233,7
WS5130-0800-30 300 800 30 5850 2150 140 200 210 212,5 535,5 258,8
WS5130-0800-40 300 800 40 5850 2150 140 200 210 212,5 535,5 295,7
WS5136-0800-30 360 800 30 9700 2150 160 225 250 252,5 627,5 337,7
WS5136-0800-40 360 800 40 9700 2150 160 225 250 252,5 627,5 374,0
WS5136-1000-40 360 1000 40 9700 1700 160 225 250 252,5 627,5 462,7
WS5140-0800-30 400 800 30 13350 1900 160 225 250 252,5 627,5 355,5
WS5140-0800-40 400 800 40 13350 1900 160 225 250 252,5 627,5 391,8
WS5140-1000-40 400 1000 40 13350 1700 160 225 250 252,5 627,5 480,5
CAD Identifier
Size
A
inch
SB
inch
TKN
ft-lbs
nmax
rpm
d1kmax
inch
D2
inch
C1
inch
C2
inch
L
inch
Gwub
lbs
  WS5114-0355-30 145 - 355-30 13.976 1.181 443 4800 2.559 3.622 4.331 6.555 13.563 94.80
  WS5114-0400-30 145 - 400-30 15.748 1.181 443 4300 2.559 3.622 4.331 6.555 13.563 108.69
  WS5117-0400-30 170 - 400-30 15.748 1.181 701 4300 2.953 4.331 5.512 6.555 14.744 132.06
  WS5117-0450-30 170 - 450-30 17.717 1.181 701 3750 2.953 4.331 5.512 6.555 14.744 149.25
  WS5117-0500-30 170 - 500-30 19.685 1.181 701 3400 2.953 4.331 5.512 6.555 14.744 168.65
  WS5120-0450-30 200 - 450-30 17.717 1.181 1217 3750 3.740 5.315 6.693 8.150 17.874 132.06
  WS5120-0500-30 200 - 500-30 19.685 1.181 1217 3400 3.740 5.315 6.693 8.150 17.874 216.27
  WS5120-0560-30 200 - 560-30 22.047 1.181 1217 3000 3.740 5.315 6.693 8.150 17.874 242.29
  WS5123-0500-30 230 - 500-30 19.685 1.181 1903 3250 4.331 6.299 6.693 8.169 18.051 261.47
  WS5123-0560-30 230 - 560-30 22.047 1.181 1903 3000 4.331 6.299 6.693 8.169 18.051 287.26
  WS5123-0630-30 230 - 630-30 24.803 1.181 1903 2700 4.331 6.299 6.693 8.169 18.051 321.43
  WS5123-0710-30 230 - 710-30 27.953 1.181 1903 2400 4.331 6.299 6.693 8.169 18.051 365.09
  WS5126-0630-30 260 - 630-30 24.803 1.181 2936 2700 4.921 7.087 8.268 8.366 20.413 392.64
  WS5126-0710-30 260 - 710-30 27.953 1.181 2936 2400 4.921 7.087 8.268 8.366 20.413 436.52
  WS5130-0710-30 300 - 710-30 27.953 1.181 4315 2400 5.512 7.874 8.268 8.366 21.083 515.22
  WS5130-0800-30 300 - 800-30 31.496 1.181 4315 2150 5.512 7.874 8.268 8.366 21.083 570.56
  WS5130-0800-40 300 - 800-40 31.496 1.575 4315 2150 5.512 7.874 8.268 8.366 21.083 651.91
  WS5136-0800-30 360 - 800-30 31.496 1.181 7154 2150 6.299 8.858 9.843 9.941 24.705 744.50
  WS5136-0800-40 360 - 800-40 31.496 1.575 7154 2150 6.299 8.858 9.843 9.941 24.705 824.53
  WS5136-1000-40 360 - 1000-40 39.370 1.575 7154 1700 6.299 8.858 9.843 9.941 24.705 1020.08
  WS5140-0800-30 400 - 800-30 31.496 1.181 9847 1900 6.299 8.858 9.843 9.941 24.705 783.74
  WS5140-0800-40 400 - 800-40 31.496 1.575 9847 1900 6.299 8.858 9.843 9.941 24.705 863.77
  WS5140-1000-40 400 - 1000-40 39.370 1.575 9847 1700 6.299 8.858 9.843 9.941 24.705 1059.32

Characteristics

RINGFEDER® TNS SDDL-5-BS

Multi-part design coupling with flange hubs, detachable claw rings and full brake disc. The intermediate ring and the brake disc can be replaced by removing the claw rings without moving a shaft.

Notes

  • Standard material for intermediate ring: Vk60D
  • Installed size L must be maintained without fail. Axial displacement e.g. by thermal expansions of the connected shafts, must be taken into account through allowances for value L.

General features

  • Torsionally flexible, compensate for angular, radial and axial shaft offset
  • Intermediate rings loaded in compression
  • Elastomers available in various shore hardness degrees
  • Suitable for temperatures from –30°C to +100°C
  • Coupling outer diameter up to 400 mm, brake disc outer diameter up to 1000mm.
  • Bores up to max. 160 mm
  • Torques up to TKn = 13,350 Nm / TKmax = 40,000 Nm
  • Speeds up to nmax = 7,250 rpm

INTRODUCTION

The rotationally resilient coupling of the RINGFEDER® TNS coupling is flexible in all directions and therefore compensates for angular, parallel and axial shaft misalignments of the connected machines. Misalignments can be caused, for example, by inaccurate assembly, heat movements or settling phenomena.

Elastic intermediate ring

With the RINGFEDER®-TNS coupling, the torque is transmitted via a compressed elastic intermediate ring. The elastic intermediate ring absorbs shocks and torsional vibrations, is resistant to oil and largely insensitive to temperature.
The strength of different elastomer materials is indicated by their Shore hardness. Elastomers of different strengths are colour-coded for identification. Further details concerning the strength and load capacity are available on request in the technical data sheet.

Elastomer Materials

The elastic intermediate rings of RINGFEDER® TNS are made of butadiene-nitril-rubber (Pb82) or polyurethane (VkR, Vk60D). The black buffer (Pb82) are normally electrically conductive and therefore prevent undesirable electrostatic charges. The red (VkR) and white (Vk60D) rings ensure electrical insulation between connected machines as long as there are no other electrically conductive connections. The resilience of the individual elastomer materials is designated by their Shore hardness. From these values an indirect conclusion can be drawn with respect to the torques the coupling is able to transmit and its spring stiffness. For further details, please see the technical data sheet.

Avoiding Torsional Vibration

By virtue of the rotational resilience of the coupling, dangerous torsional vibrations from the operational range of plant machinery can be transferred to rotational speed ranges in which no negative effects are to be expected. The elastic intermediate rings possess a high material damping capability which makes it possible for the couplings to keep the resonance enhancements within limits when passing through dangerous speed ranges, thereby protecting the coupled machines against damage. The couplings also mitigate torque shocks and cause a vibrating system that has been excited by an impact to come to rest very quickly due to the material damping qualities. The conduction of structure-borne noise is prevented.

Environmental conditions

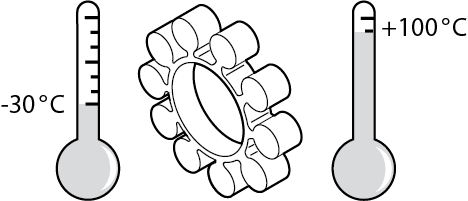

The employed elastomer materials operate reliably in ambient temperature ranges of –30° to +100°C. Please contact RINGFEDER POWER TRANSMISSION if higher ambient temperatures are involved. The influence of the temperature on the coupling size selection is explained in more detail in the below-mentioned design directives. It is only allowed to operate the coupling in normal industrial air. Aggressive media may attack the coupling components, bolts and elastic elements, and, therefore, present a danger to the operational safety of the coupling. The coupling can be declared compliant with the European Directive 2014/34/EU (ATEX). Please contact RINGFEDER POWER TRANSMISSION regarding the declaration of conformity according to 2014/34/EU and the effects of aggressive ambient media.
