Self-aligning coupling with outer cone

RINGFEDER® GWE 5112
is a backlash-free balance coupling with outer cone that is also suitable for the highest speeds. The best possi- ble concentricity of the coupling parts that is necessary for this is made possible by the symmetrical structure and the precise manufacture.

High clamping force is produced on the shaft by tightening the easily accessible screw connection on the conical outer tensioning ring and this counters the impact of centrifugal force and has a positive effect on the torque transmission. The shaft tolerance should lie within the fit tolerance of ‘g6’ to ‘h7’

GWE 5112

CAD data download is available after login.

CAD

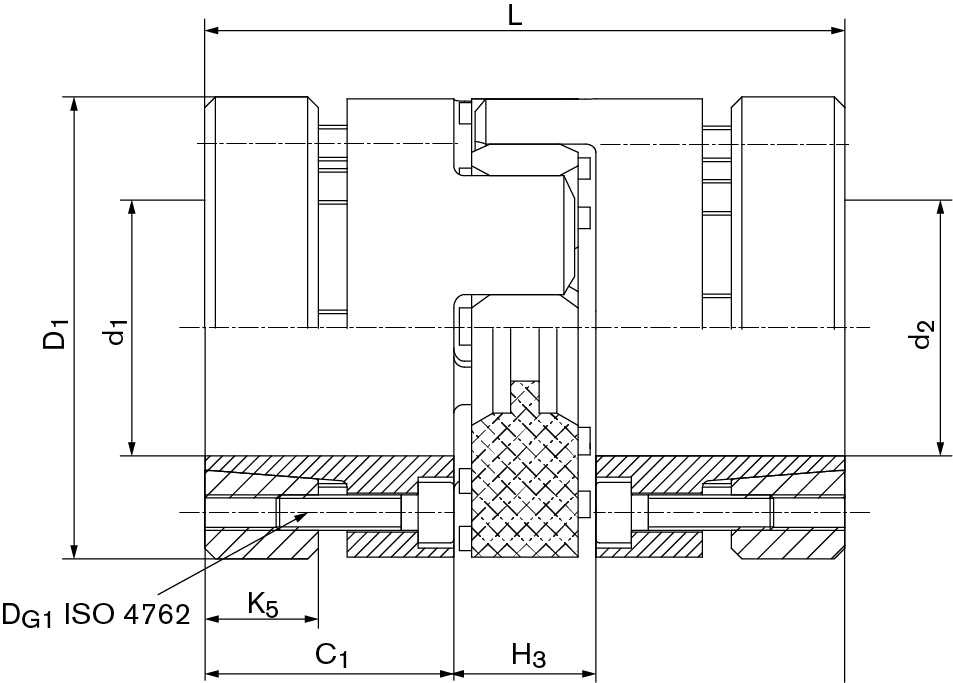

Size
d1min
mm
d1max
mm
C1
mm
D1
mm
H3
mm
L
mm
T
Nm
nmax
1/min
DG1
mm
TA1
Nm
14 6 14 18,5 32 13 50 12,5 25400 3 1,8
19 8 20 25 40 16 66 17 19000 4 3
24 11 25 30 55 18 78 60 13800 5 6
28 15 36 35 65 20 90 160 11700 5 6
38 20 41 45 80 24 114 325 9550 6 10
42 25 50 50 95 26 126 450 8050 8 35
48 28 55 56 105 28 140 525 7200 10 69
CAD Size
d1min
inch
d1max
inch
C1
inch
D1
inch
H3
inch
L
inch
T
ft-lbs
nmax
rpm
DG1
mm
TA1
ft-lbs
  14 0.236 0.551 0.728 1.26 0.512 1.969 9 25400 3 1.3
  19 0.315 0.787 0.984 1.575 0.63 2.598 13 19000 4 2.2
  24 0.433 0.984 1.181 2.165 0.709 3.071 44 13800 5 4.5
  28 0.591 1.417 1.378 2.559 0.787 3.543 118 11700 5 4.5
  38 0.787 1.614 1.772 3.15 0.945 4.488 240 9550 6 7.5
  42 0.984 1.969 1.969 3.74 1.024 4.961 332 8050 8 26
  48 1.102 2.165 2.205 4.134 1.102 5.512 387 7200 10 51

Characteristics

Backlash-free Elastomer Jaw Couplings
RINGFEDER® GWE

Backlash-free RINGFEDER® GWE jaw couplings are used in engineering where high positioning precision requires vibration damping in greatly accelerated processes and the use of plug-in coupling solutions is preferred.

Advantages

  • Backlash-free, through pre-stressing
  • Pluggable
  • Vibration damping
  • Torques from 0,5 – 650 Nm
  • Compensation of radial, axial and angular misalignment
  • Electrically isolating

Applications

  • Encoder
  • Precision drives
  • Feed drives
  • Grinding and milling spindles
  • Machine tools
  • Packing machines
  • Robotics
  • Transfer lines
  • Multi-spindle heads
  • Wood processing equipment
  • Textile machinery
  • Conveying equipment
  • Linear motion
  • Measuring equipment and control technology
  • Test rigs

Technical description

Every hub on the RINGFEDER® GWE jaw coupling has concave jaws on its face. The function of the coupling to transmit torque and damp impact that occurs, as well as balancing out unavoidable mis- alignments, is enabled through the joining of two hubs and the filling of the created free space with an elastic sprocket. The GWE jaw couplings are backlash-free in order to also achieve a high level of positioning precision in reverse operation. The coupling is backlash-free as a result of the pressure pre-tensioning of the individual buffers in the elastomer sprocket. The different Shore hardness levels, which correlate to the torsional stiffness, mean that it is possible to optimise the entire drive line from the point of view of rotary oscillation. Detailed information is included in the technical data for the sprockets.

Characteristics GWE 5112

  • Hubs up to size 38 made of aluminum, from size 42 made of steel
  • Steel outer tensioning ring
  • High concentricity of assembly friendly coupling
  • Optimisation of the vibration damping through different elastomer spider hardness levels
  • Standard with yellow red spider 98 SH A
  • Puncture-proof and electrically insulating

Downloads

Product Paper Elastomer Jaw Couplings RINGFEDER® GWE, TNM, TNS, TNB

Product Paper Elastomer Jaw Couplings RINGFEDER® GWE, TNM, TNS, TNB

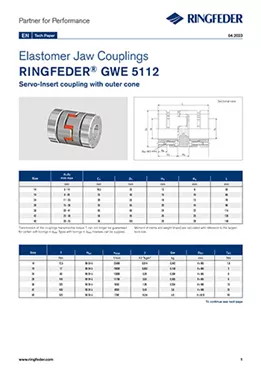

Tech Paper Elastomer Jaw Couplings RINGFEDER® GWE 5112
