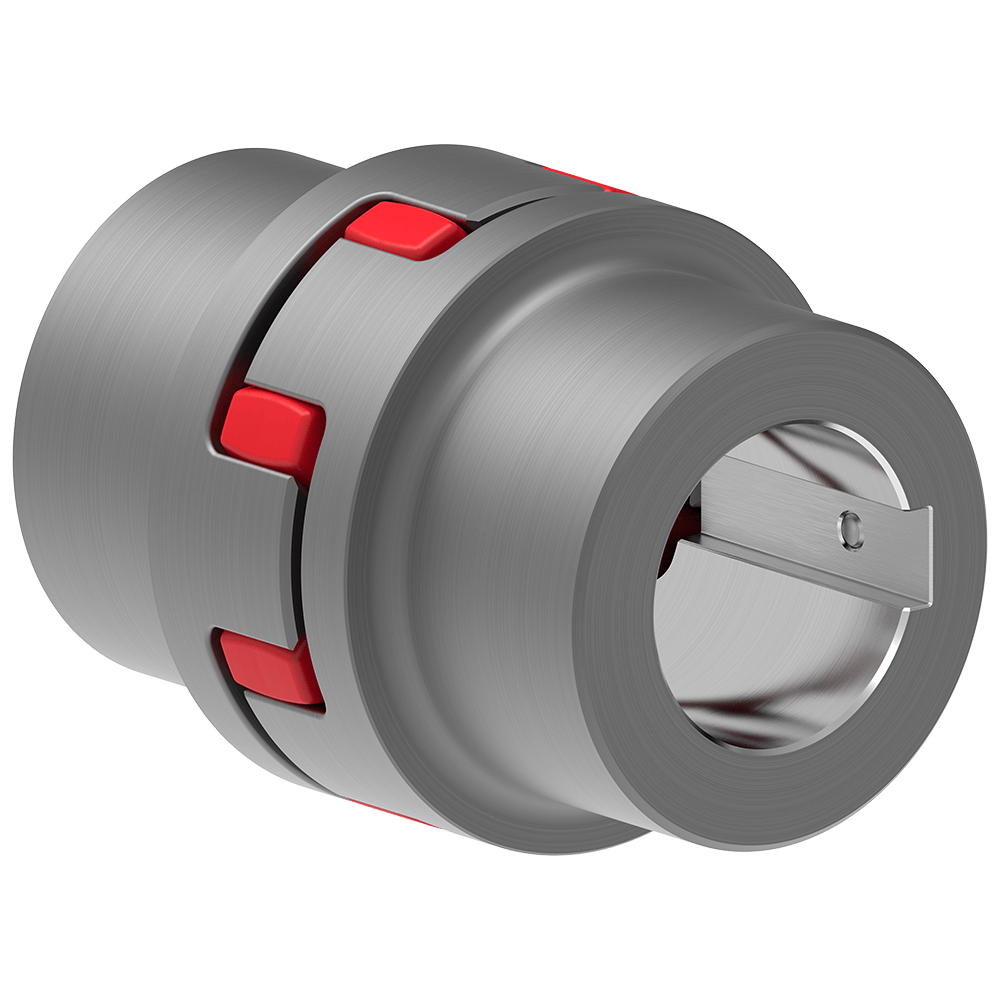

Elastomer Jaw Couplings ECE 6418

Type with Freely Combinable Steel Hubs and Elastomer Spiders of Various Hardnesses

10 Sizes
Sizes 19-55, as standard with yellow elastomer spider (92 SH A),
sizes 65-90, as standard with red elastomer spider (98 SH A)
Bore Diameter d: 6-110 mm (0.236–4.331 inch)
Outer Diameter D: 40-200 mm (1.575–7.874 inch)
Overall Length L: 66-295 mm (2.598–11.614 inch)
Rot. Speed n_max: 3,800-19,000 1/min
Torque T_KN: 10-4,500 Nm (7.38–3,319.03 ft·lb)

Technical Data & CAD Models

You require CAD data for this ECE type? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.

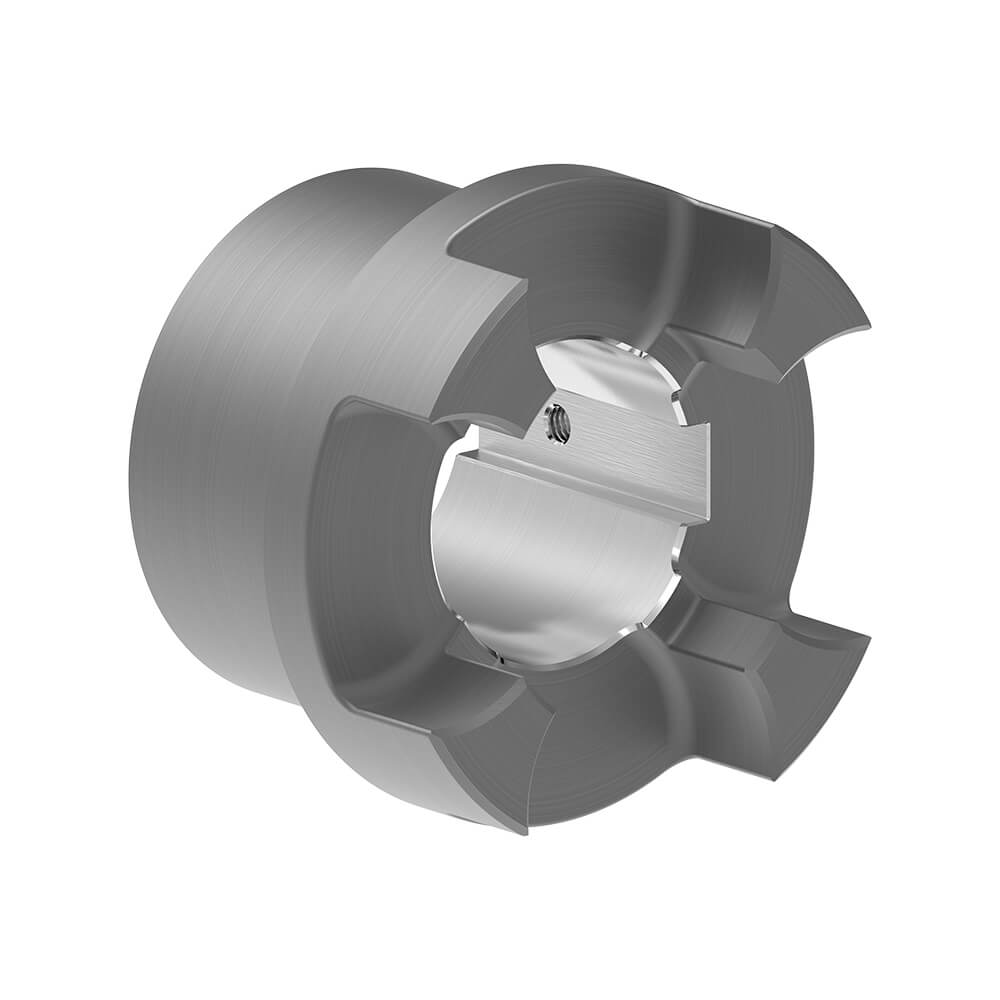

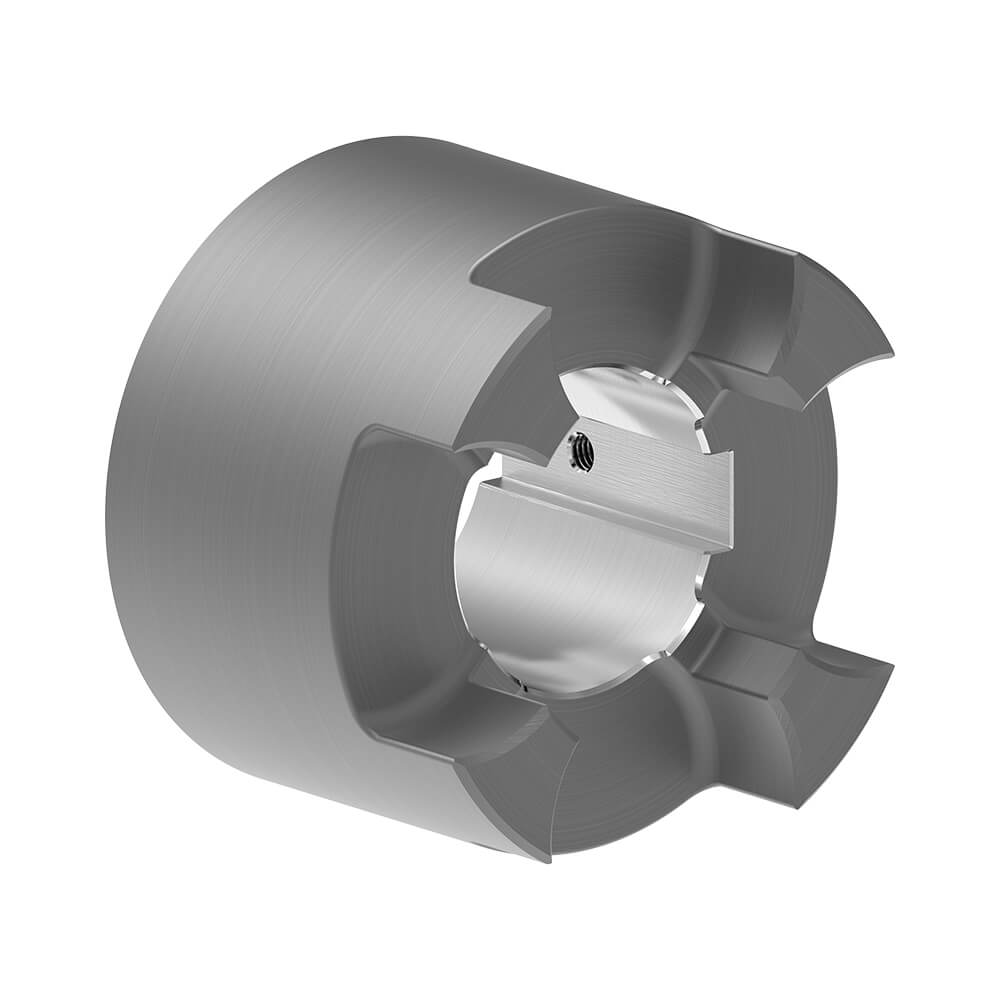

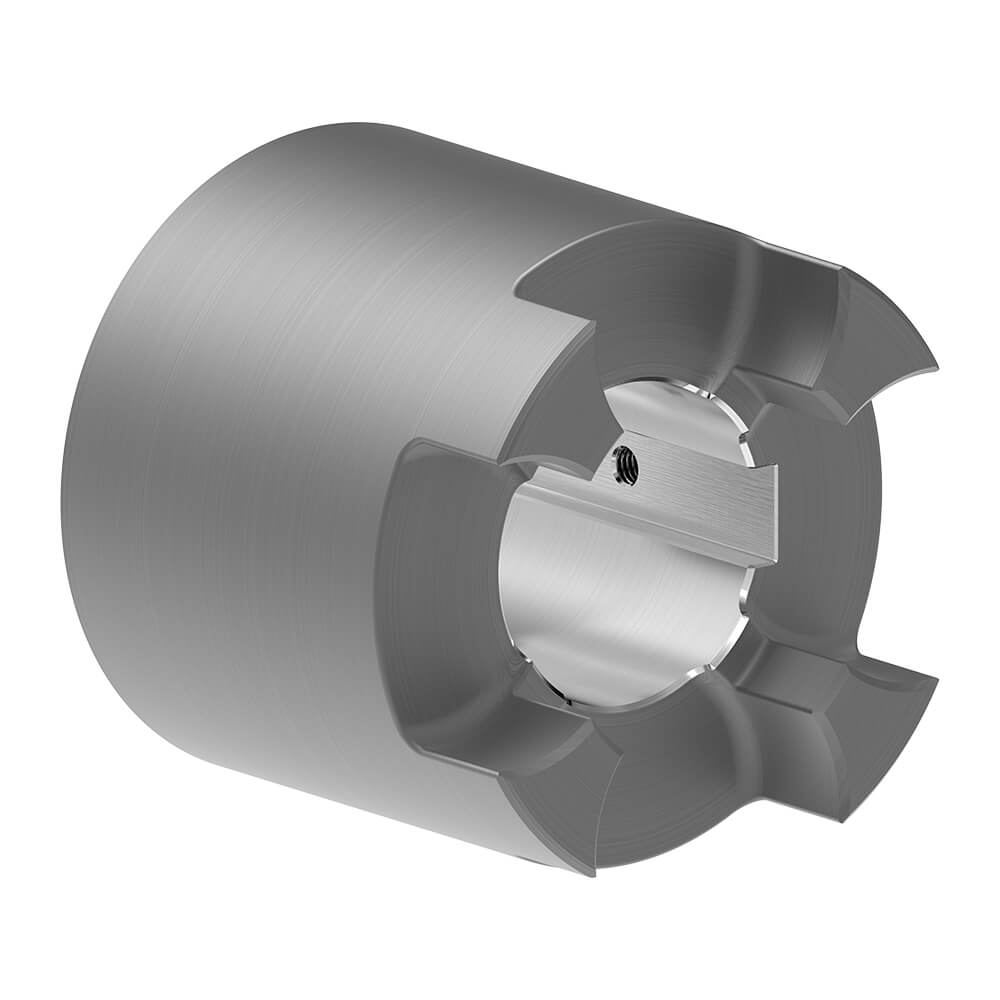

Größe/Size	NA	d_1kmin mm	d_1kmax mm	d_2kmin mm	d_2kmax mm	D mm	D₁ mm	I mm	L mm	L₃ mm	T_KN Nm	T_A Nm	Gw kg
19	1	6	19	6	19	40	32	10	66	20	10	2	0,415
19	1a	6	25	6	25	40	40	10	66	-	10	2	0,551
19	1b	6	25	6	25	40	40	10	90	-	10	2	0,791
24	1	6	24	6	24	55	40	10	78	24	35	2	0,809
24	1a	6	35	6	35	55	55	10	78	-	35	2	1,233
24	1b	6	35	6	35	55	55	10	118	-	35	2	1,971
28	1	6	28	6	28	65	48	15	90	28	95	10	1,342
28	1a	6	40	6	40	65	65	15	90	-	95	10	3,795
28	1b	6	40	6	40	65	65	15	140	-	95	10	3,288
38	1	6	48	6	48	80	66	15	114	37	190	10	2,961
38	1a	6	48	6	48	80	79	15	114	-	190	10	3,795
38	1b	6	48	6	48	80	80	15	164	-	190	10	5,711
42	1	6	42	6	42	95	75	20	126	40	265	10	4,408
42	1a	6	55	6	55	95	95	20	126	-	265	10	5,97
42	1b	6	55	6	55	95	95	20	176	-	265	10	8,69
48	1	6	48	6	48	105	85	20	140	45	310	10	6,181
48	1a	6	62	6	62	105	105	20	140	-	310	10	7,927
48	1b	6	62	6	62	105	105	20	188	-	310	10	10,971
55	1	6	55	6	55	120	110	20	160	52	410	17	9,377
55	1a	6	74	6	74	120	120	20	160	-	410	17	12,109
55	1b	6	74	6	74	120	120	20	210	-	410	17	16,389
65	1	6	65	6	65	135	115	20	185	61	940	17	14,407
65	1a	6	80	6	80	135	132	20	185	-	940	17	17,549
65	1b	6	80	6	80	135	135	20	235	-	940	17	22,915
75	1	6	75	6	75	160	135	25	210	69	1920	17	22,374
75	1a	6	95	6	95	160	158	25	210	-	1920	17	28,074
75	1b	6	95	6	95	160	160	25	260	-	1920	17	35,746
90	1	6	90	6	90	200	160	30	245	81	3550	40	38,166
90	1a	6	110	6	110	200	196	30	245	-	3550	40	50,854
90	1b	6	110	6	110	200	200	30	295	-	3550	40	62,648

Größe/Size	NA	d_1kmin inch	d_1kmax inch	d_2kmin inch	d_2kmax inch	D inch	D₁ inch	I inch	L inch	L₃ inch	T_KN ft-lbs	T_A ft-lbs	Gw lbs
19	1	0.236	0.748	0.236	0.748	1.5748	1.260	0.394	2.598	0.787	7.3757	1.5	0.9
19	1a	0.236	0.984	0.236	0.984	1.5748	1.575	0.394	2.598	-	7.3757	1.5	1.2
19	1b	0.236	0.984	0.236	0.984	1.5748	1.575	0.394	3.543	-	7.3757	1.5	1.7
24	1	0.236	0.945	0.236	0.945	2.16535	1.575	0.394	3.071	0.945	25.81495	1.5	1.8
24	1a	0.236	1.378	0.236	1.378	2.16535	2.165	0.394	3.071	-	25.81495	1.5	2.7
24	1b	0.236	1.378	0.236	1.378	2.16535	2.165	0.394	4.646	-	25.81495	1.5	4.3
28	1	0.236	1.102	0.236	1.102	2.55905	1.890	0.591	3.543	1.102	70.06915	7.4	3.0
28	1a	0.236	1.575	0.236	1.575	2.55905	2.559	0.591	3.543	-	70.06915	7.4	8.4
28	1b	0.236	1.575	0.236	1.575	2.55905	2.559	0.591	5.512	-	70.06915	7.4	7.2
38	1	0.236	1.890	0.236	1.890	3.1496	2.598	0.591	4.488	1.457	140.1383	7.4	6.5
38	1a	0.236	1.890	0.236	1.890	3.1496	3.110	0.591	4.488	-	140.1383	7.4	8.4
38	1b	0.236	1.890	0.236	1.890	3.1496	3.150	0.591	6.457	-	140.1383	7.4	12.6
42	1	0.236	1.654	0.236	1.654	3.74015	2.953	0.787	4.961	1.575	195.45605	7.4	9.7
42	1a	0.236	2.165	0.236	2.165	3.74015	3.740	0.787	4.961	-	195.45605	7.4	13.2
42	1b	0.236	2.165	0.236	2.165	3.74015	3.740	0.787	6.929	-	195.45605	7.4	19.2
48	1	0.236	1.890	0.236	1.890	4.13385	3.346	0.787	5.512	1.772	228.6467	7.4	13.6
48	1a	0.236	2.441	0.236	2.441	4.13385	4.134	0.787	5.512	-	228.6467	7.4	17.5
48	1b	0.236	2.441	0.236	2.441	4.13385	4.134	0.787	7.402	-	228.6467	7.4	24.2
55	1	0.236	2.165	0.236	2.165	4.7244	4.331	0.787	6.299	2.047	302.4037	12.5	20.7
55	1a	0.236	2.913	0.236	2.913	4.7244	4.724	0.787	6.299	-	302.4037	12.5	26.7
55	1b	0.236	2.913	0.236	2.913	4.7244	4.724	0.787	8.268	-	302.4037	12.5	36.1
65	1	0.236	2.559	0.236	2.559	5.31495	4.528	0.787	7.283	2.402	693.3158	12.5	31.8
65	1a	0.236	3.150	0.236	3.150	5.31495	5.197	0.787	7.283	-	693.3158	12.5	38.7
65	1b	0.236	3.150	0.236	3.150	5.31495	5.315	0.787	9.252	-	693.3158	12.5	50.5
75	1	0.236	2.953	0.236	1.181	6.2992	5.315	0.984	8.268	2.717	1416.1344	12.5	49.3
75	1a	0.236	3.740	0.236	3.740	6.2992	6.220	0.984	8.268	-	1416.1344	12.5	61.9
75	1b	0.236	3.740	0.236	3.740	6.2992	6.299	0.984	10.236	-	1416.1344	12.5	78.8
90	1	0.236	3.543	0.236	3.543	7.874	6.299	1.181	9.646	3.189	2618.3735	29.5	84.1
90	1a	0.236	4.331	0.236	4.331	7.874	7.717	1.181	9.646	-	2618.3735	29.5	112.1
90	1b	0.236	4.331	0.236	4.331	7.874	7.874	1.181	11.614	-	2618.3735	29.5	138.1

Images & Drawings

Technical Data of Elastomer Spiders

Größe/Size	SH	n_max 1/min	n_max 1/min	T_KN Nm	T_KW Nm	T_Kmax Nm	ψ	C_Tdyn (1 T_KN) 10³ Nm/rad	C_Tdyn (0,5 T_KN) 10³ Nm/rad	C_T_dyn (0,25 T_KN) 10³ Nm/rad	d_bZ mm	ΔK_a (1500) mm	ΔK_r (1500) mm	ΔK_w (1500) Degrees	φ T_Kmax Degrees
19	64 SH D	19000	16700	21	5,5	42	0,75	1,99	1,37	0,98	18	-0,5 +1,2	0,13	1,1	3,6
19	92 SH A	19000	16700	10	2,6	20	0,8	0,52	0,34	0,24	18	-0,5 +1,2	0,2	1,2	5
19	98 SH A	19000	16700	17	4,4	34	0,8	1,59	1,16	0,80	18	-0,5 +1,2	0,2	1,2	5
24	64 SH D	14000	12100	75	19,5	150	0,75	7,92	5,45	3,91	27	-0.5 +1.4	0,15	0,8	3,6
24	92 SH A	14000	12100	35	9,1	70	0,8	1,96	1,29	0,92	27	-0,5 +1,4	0,22	0,9	5
24	98 SH A	14000	12100	60	16	120	0,8	6,24	4,53	3,14	27	-0,5 +1,4	0,22	0,9	5
28	64 SH D	11800	10100	200	52	400	0,75	18,88	12,98	9,31	30	-0,7 +1,5	0,18	0,8	3,6
28	92 SH A	11800	10100	95	25	190	0,8	4,95	3,24	2,32	30	-0,7 +1,5	0,25	0,9	5
28	98 SH A	11800	10100	160	42	320	0,8	15,32	11,12	7,71	30	-0,7 +1,5	0,25	0,9	5
38	64 SH D	9500	8300	405	105	810	0,75	38,14	22,41	15,54	38	-0,7 +1,8	0,21	0,9	3,6
38	92 SH A	9500	8300	190	49	380	0,8	9,80	6,42	4,59	38	-0,7 +1,8	0,28	1	5
38	98 SH A	9500	8300	325	85	650	0,8	30,89	22,41	15,54	38	-0,7 +1,8	0,28	1	5
42	64 SH D	8000	7000	560	146	1120	0,75	60,40	45,50	29,80	46	-1 +2	0,23	0,9	3,6
42	92 SH A	8000	7000	265	69	530	0,8	15,40	10,40	7,40	46	-1 +2	0,32	1	5
42	98 SH A	8000	7000	450	117	900	0,8	45,50	33,20	23,00	46	-1 +2	0,32	1	5
48	64 SH D	7100	6350	655	170	1310	0,75	71,00	53,50	35,00	51	-1 +2,1	0,25	1	3,6
48	92 SH A	7100	6350	310	81	620	0,8	17,80	12,00	8,60	51	-1 +2,1	0,36	1,1	5
48	98 SH A	7100	6350	525	137	1050	0,8	52,30	38,10	26,40	51	-1 +2,1	0,36	1,1	5
55	64 SH D	6300	5550	825	215	1650	0,75	92,30	69,50	45,50	60	-1 +2,2	0,27	1	3,6
55	92 SH A	6300	5550	410	107	820	0,8	24,50	16,50	11,80	60	-1 +2,2	0,38	1,1	5
55	98 SH A	6300	5550	685	178	1370	0,8	70,60	51,40	35,60	60	-1 +2,2	0,38	1,1	5
65	64 SH D	5600	4950	1175	306	2350	0,75	141,10	102,50	59,80	68	-1 +2,6	0,3	1,1	3,6
65	92 SH A	5600	4950	590	160	1220	0,8	40,40	27,80	19,80	68	-1 +2,6	0,42	1,2	5
65	98 SH A	5600	4950	940	244	1880	0,8	100,70	73,70	51,00	68	-1 +2,6	0,42	1,2	5
75	64 SH D	4750	4150	2400	624	4800	0,75	294,40	213,80	124,80	80	-1,5 +3	0,34	1,1	3,6
75	92 SH A	4750	4150	1220	326	2500	0,8	84,60	58,10	41,40	80	-1,5 +3	0,48	1,2	5
75	98 SH A	4750	4150	1920	499	3840	0,8	209,60	153,50	106,30	80	-1,5 +3	0,48	1,2	5
90	64 SH D	3800	3300	4500	1128	9000	0,75	550,50	338,40	183,30	100	-1,5 +3,4	0,36	1,1	3,6
90	92 SH A	3800	3300	2350	610	4700	0,8	158,70	109,10	77,70	100	-1,5 +3,4	0,5	1,2	5
90	98 SH A	3800	3300	3550	880	7100	0,8	413,40	273,00	134,20	100	-1,5 +3,4	0,5	1,2	5
