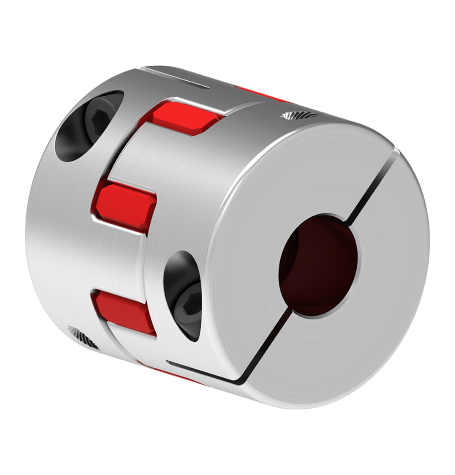

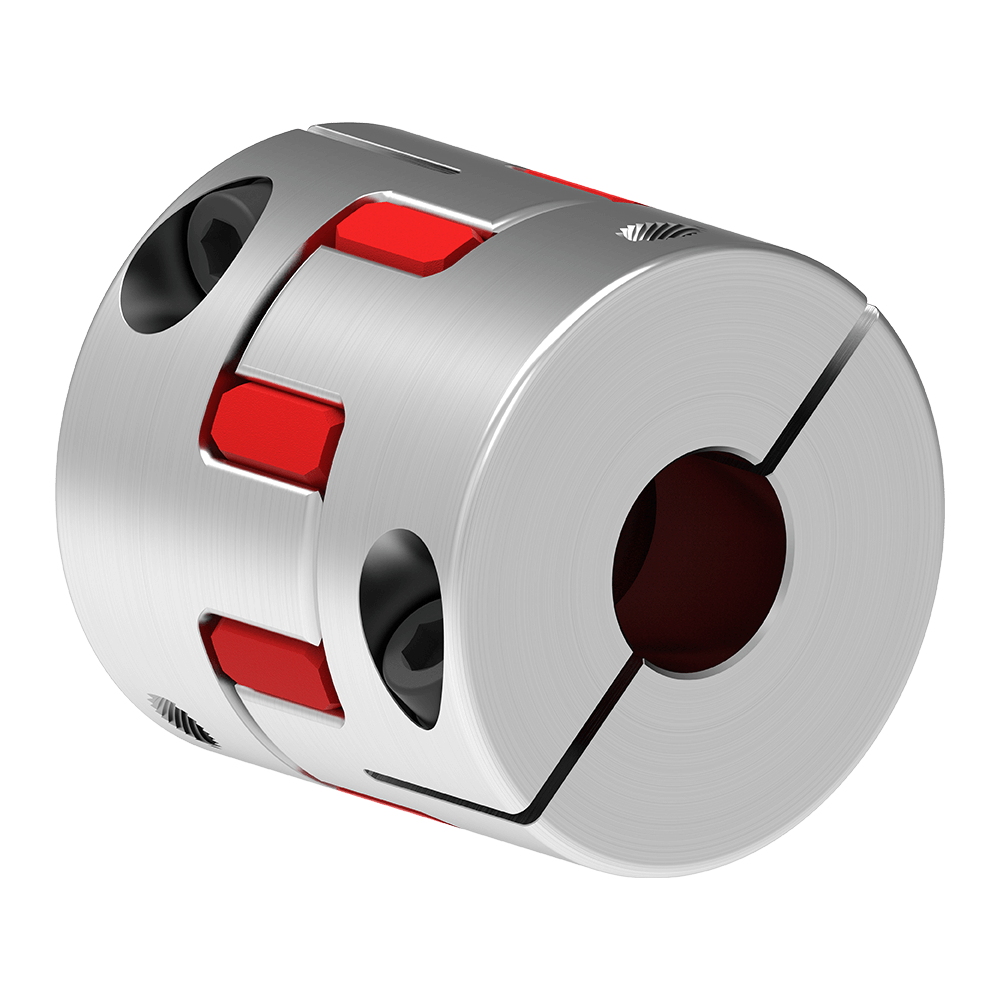

Elastomer Jaw Couplings GWE 5113 | RINGFEDER®

Torsionally flexible, backlash-free elastomer couplings with single-slit aluminium clamping hubs, highly compact design and outstanding concentricity for vibration and shock damped, uniform power transmission.

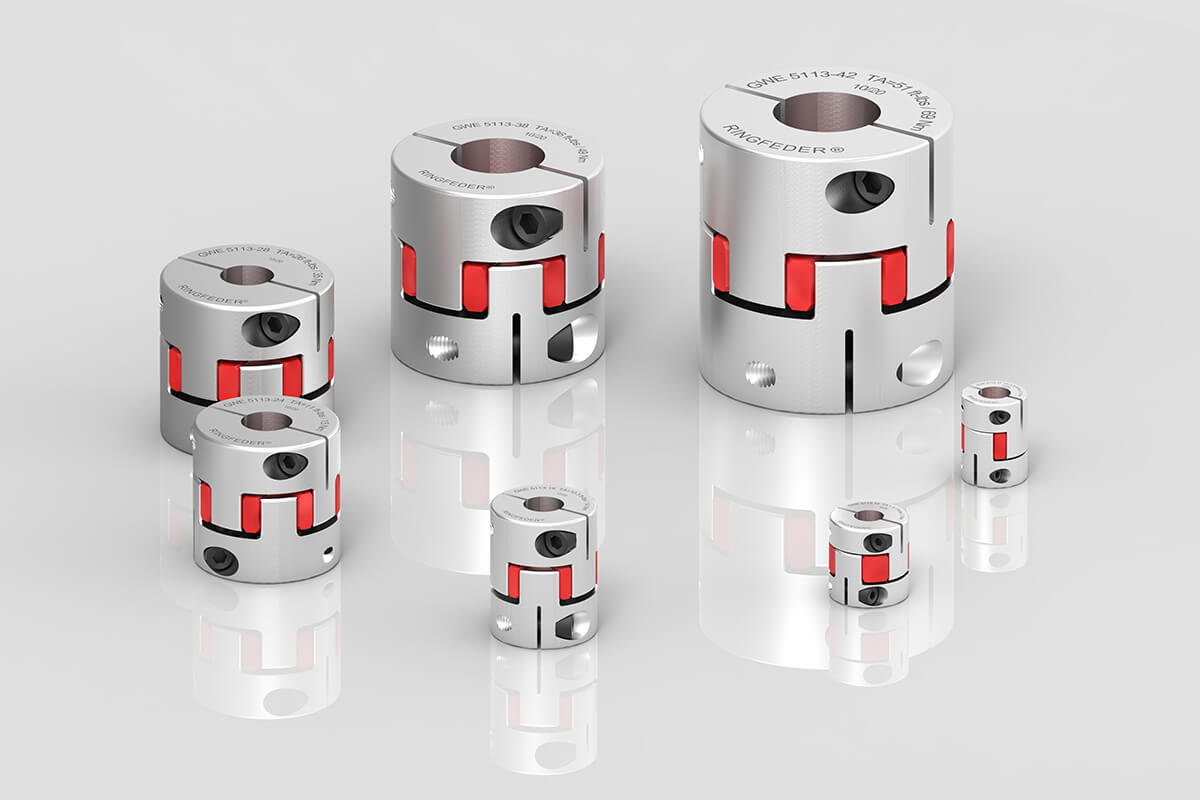

  • 7 different sizes
  • Bore Diameter d: 4-56 mm (0.157-2.205 inch)
  • Outer Diameter D: 24.5-94.5 mm (0.966-3.270 inch)
  • Overall Length L: 32-102 mm (1.259-4.016 inch)
  • Rotational Speed nmax: 4,000-15,000 1/min
  • Torque T: 3-560 Nm (2.21-413.04 ft·lb)

Product Characteristics

Your Benefits

Backlash-free elastomer jaw couplings of the RINGFEDER® GWE series are the optimum solution for all drive tasks requiring extraordinary positioning accuracy as well as highly effective damping of shocks and vibrations. They effectively compensate for radial, axial and angular shaft misalignments, are axially pluggable, puncture-proof and electrically insulating.

The new type RINGFEDER® GWE 5113, developed in close customer cooperation, is particularly convincing due to:

  • Low masses and even weight distribution – thanks to specially optimized hubs made of high-quality aluminum.
  • Superior concentricity as well as uniform, vibration- and shock-damped power transmission – due to highest manufacturing precision, symmetrical arrangement of clamping slots and screw positions as well as unslotted cam area.
  • Convenient application even in very small, confined spaces – because of its extremely compact, short design with minimal moment of inertia.
  • Highly precise, absolutely backlash-free torque transmission – from 3 to 560 Newton meters (2.21 to 413.04 ft·lb).
  • Optimum availability – in a total of seven sizes with a wide bore diameter range from 4 to 56 millimeters (0.157 to 2.205 inch), at an attractive price and in short delivery times.

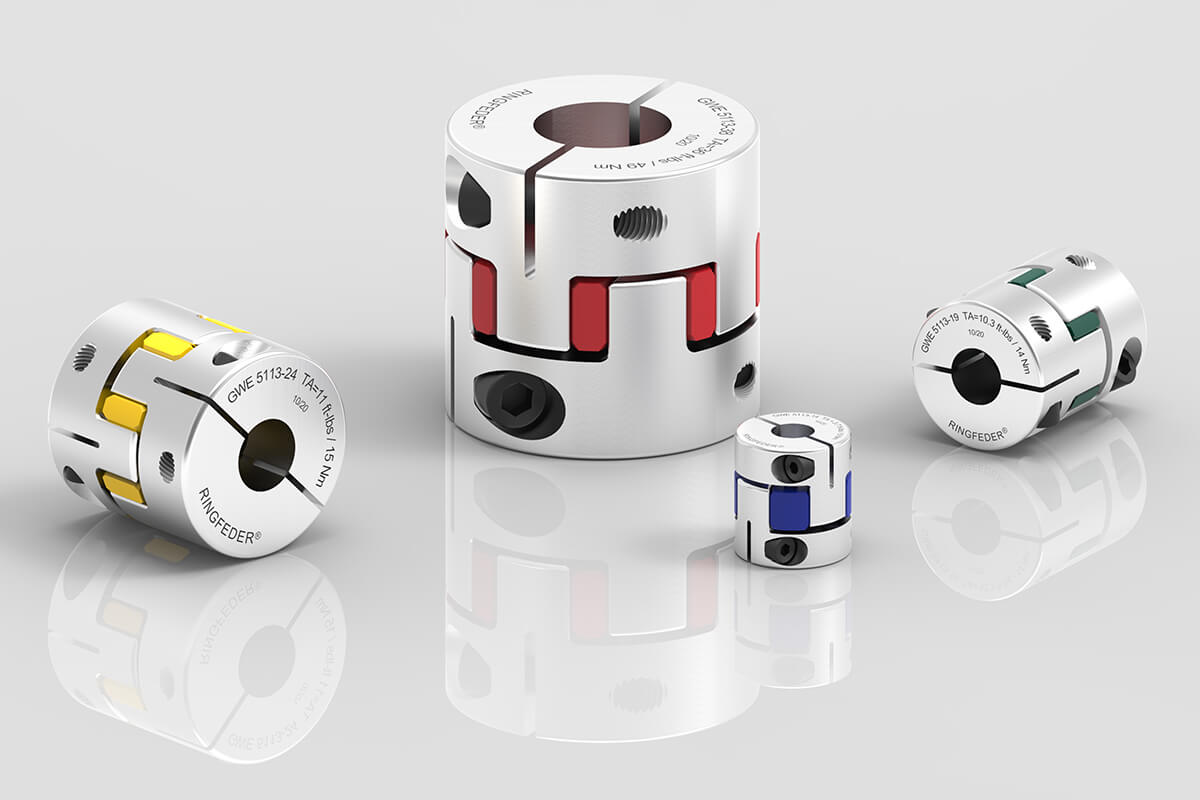

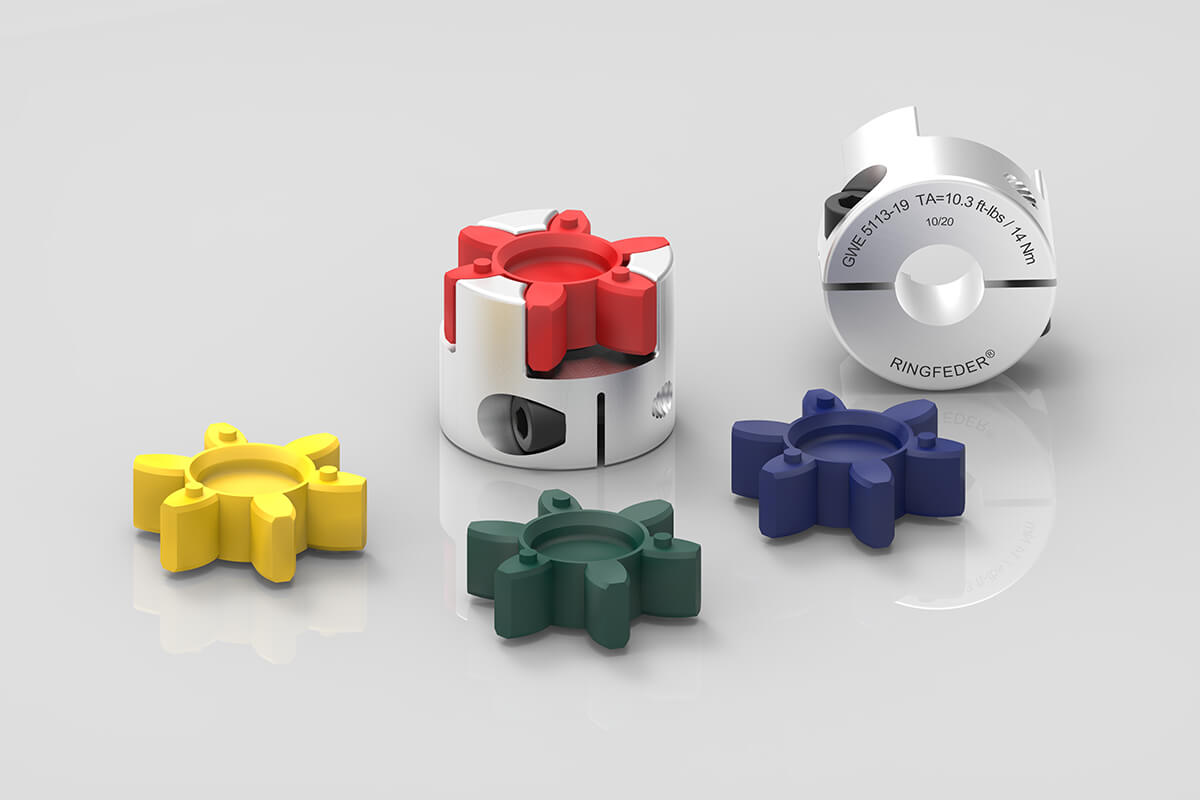

  • Adjustment of misalignment capability, damping behavior and torsional stiffness as required – by means of bored and unbored elastomer spiders of four different Shore hardnesses, from 80 SH A to 64 SH D.*
  • Coupling hubs with keyways if needed – according to DIN 6885-1 or standard inch dimensions.

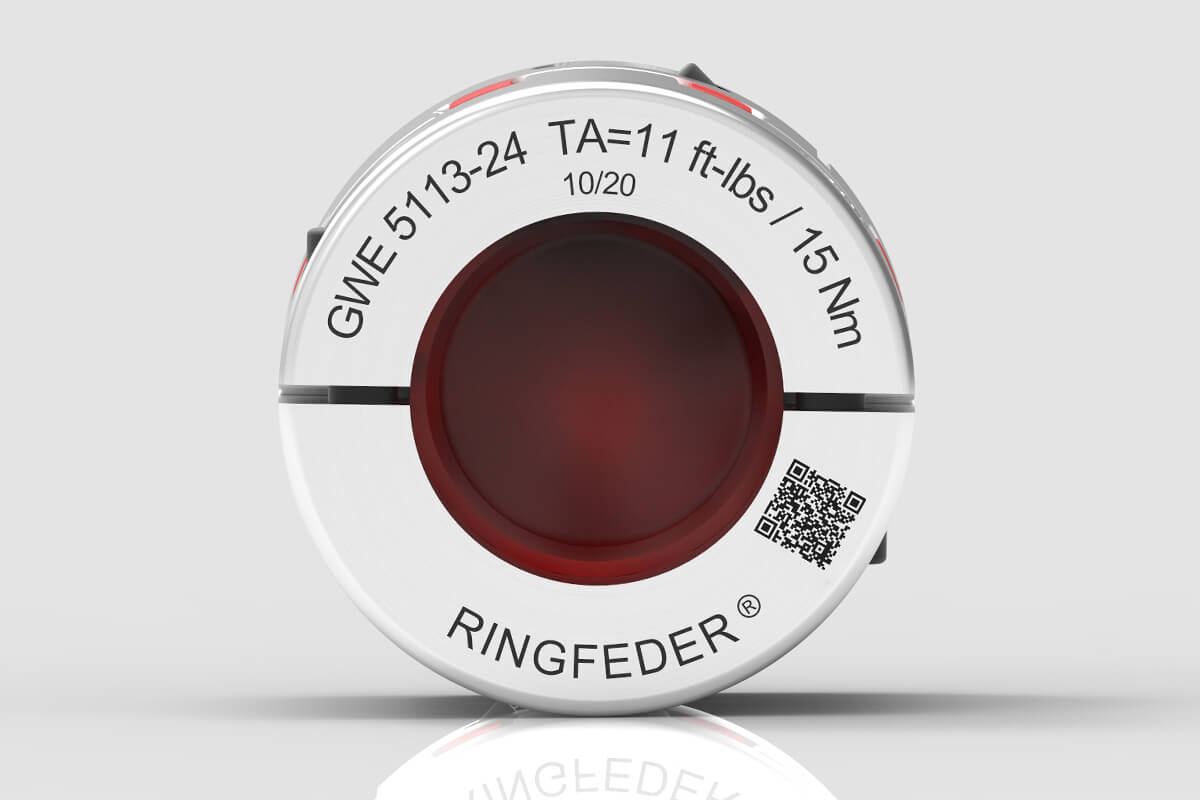

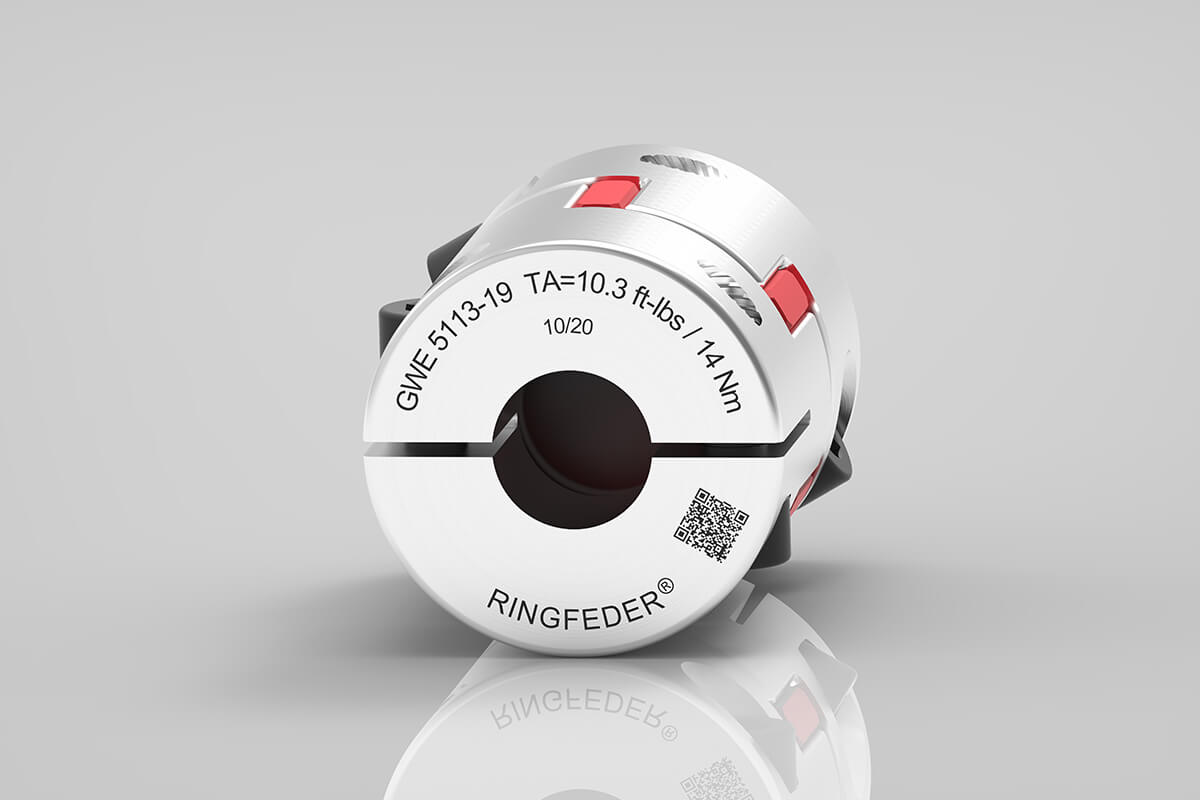

  • Unambiguous identification and simplified handling – thanks to obligatory laser marking that includes type designation, date of manufacture as well as screw tightening torques according to international and Anglo-American system of units.
  • Convenient, direct access to assembly and operation manual – by means of a mobile device via a QR code applied by laser marking (starting from coupling size 19).
  • Maximum operational safety in explosion-endangered areas – thanks to optional compliance with ATEX according to Product Directive 2014/34/EU and DIN EN ISO 80079-36:2016 if required.

* As standard, all coupling sizes of the RINGFEDER® GWE 5113 type are equipped with a media-resistant red elastomer spider made of high-quality polyurethane with a Shore hardness of 98 SH A.



Ideal for Many Applications

  • Linear Technology and Motion Control Systems
  • Measuring Equipment and Control Technology
  • Test Benches
  • Precision Drives
  • Feed Drives
  • Grinding and Milling Spindles
  • Machine Tools
  • Packing Machines
  • Robotics
  • Transfer Lines
  • Multi-Spindle Heads
  • Wood Processing Equipment
  • Textile Machinery
  • Conveying Equipment



Technical Explanations

Each hub of the elastomer jaw couplings of the RINGFEDER® GWE series has concave claws on its face side. The essential functions of the coupling, i.e. to transmit torque and to absorb shocks as well as to compensate for unavoidable shaft misalignments, is enabled by plugging two hubs together and filling the resulting free space with an elastomeric spider. In order to achieve a high positioning accuracy also in reverse operation, all types of the GWE series are backlash-free. This freedom from backlash of the couplings results from the pressure pre-tensioning of the elastomeric spider. Due to the different Shore hardnesses of the elastomeric spider, which is associated with the couplings' torsional stiffness, it is possible to optimize the entire drive train in terms of rotary oscillation. Detailed information on the technical properties of the elastomeric spiders is given in our "Product Paper & Tech Paper RINGFEDER® Elastomer Jaw Couplings". The shaft tolerance should lie within the fitting tolerance "g6" to "h7".



Your Contact

You have specific questions, require technical support or you are interested in a customized solution? Our experts in Engineering and Sales are more than happy to assist you. Contact us quickly and easily via our request form, by e-mail or telephone.

Technical Data & CAD Models

Download of CAD data is available to you after login via your personal user account. You do not have a user account yet? Please register here.

CAD

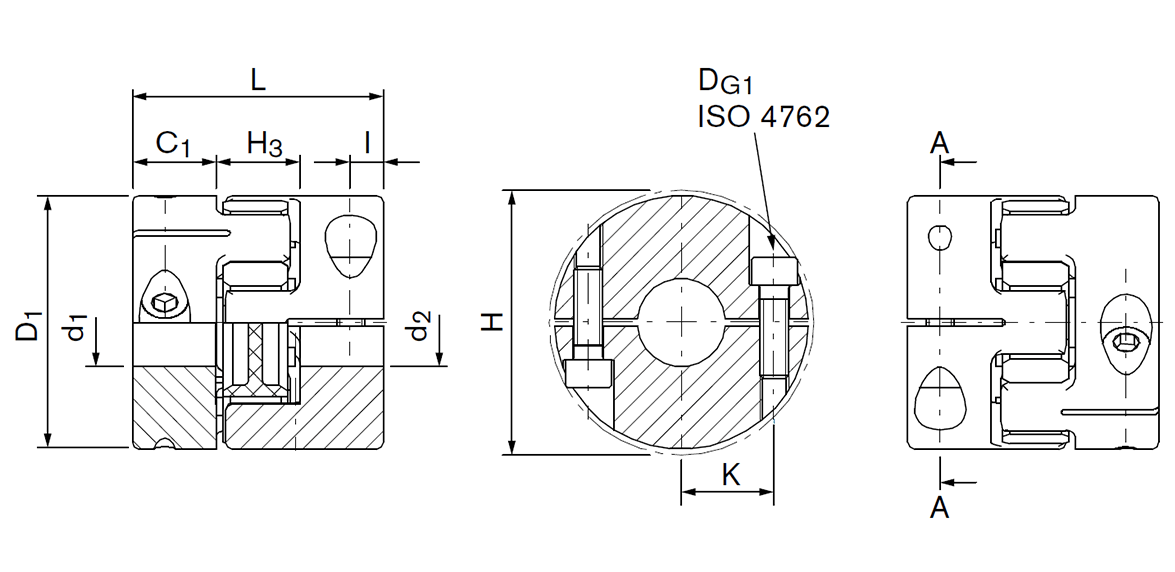

Größe/Size
d1min
mm
d1max
mm
C1
mm
D1
mm
H
mm
H3
mm
L
mm
T
Nm
nmax
1/min
DG1
mm
TA1
Nm
12 4 12 11 24,5 26 12 34 9 15000 3 2,1
14 5 15 9,5 29,5 33 13 32 12,5 13000 4 5
19 8 20 17 39,5 45 16 50 17 10000 6 14
24 10 32 18 54,5 57 18 54 60 7000 6 15
28 14 35 21 64,5 68 20 62 160 6000 8 35
38 15 45 26,5 79,5 86 23 76 325 5000 10 49
42 20 56 38 94,5 95 26 102 450 4000 10 69
CAD Größe/Size
d1min
inch
d1max
inch
C1
inch
D1
inch
H
inch
H3
inch
L
inch
T
ft-lbs
nmax
rpm
DG1
mm
TA1
ft-lbs
  12 0.157 0.472 0.433 0.965 1.024 0.472 1.339 7 15000 3 1.5
  14 0.197 0.591 0.374 1.161 1.299 0.512 1.260 9 13000 4 3.7
  19 0.315 0.787 0.669 1.555 1.772 0.630 1.969 13 10000 6 10.3
  24 0.394 1.260 0.709 2.146 2.244 0.709 2.126 44 7000 6 11.1
  28 0.551 1.378 0.827 2.539 2.677 0.787 2.441 118 6000 8 25.8
  38 0.591 1.772 1.043 3.130 3.386 0.906 2.992 240 5000 10 36.1
  42 0.787 2.205 1.496 3.720 3.740 1.024 4.016 332 4000 10 50.9

Downloads

Product Paper Elastomer Jaw Couplings RINGFEDER® GWE, TNM, TNS, TNB

Product Paper Elastomer Jaw Couplings RINGFEDER® GWE, TNM, TNS, TNB

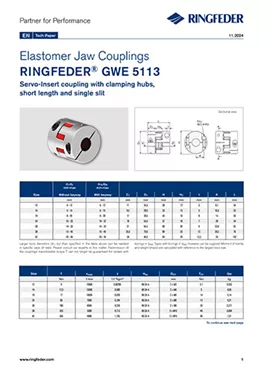

Tech Paper Elastomer Jaw Couplings RINGFEDER® GWE 5113
