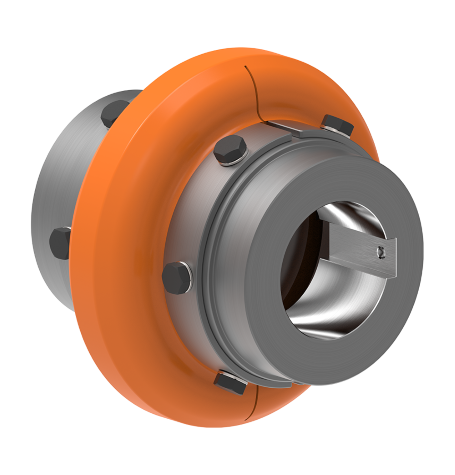

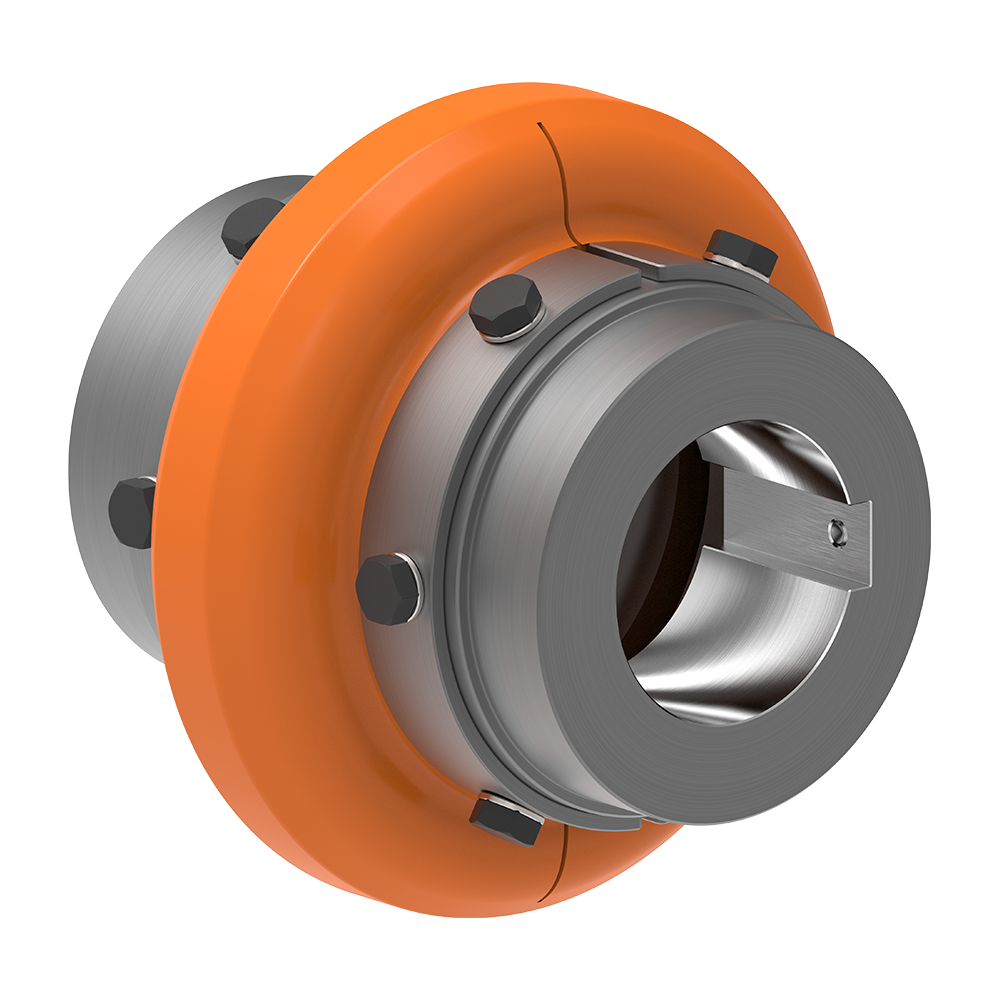

Tyre Couplings RLU
Torsion-Soft Shaft-Shaft Connection with Split, Radially Mounted Elastic Tyre
- 13 Sizes
- Max. Bore Diameter d1/d2: 28-171 mm (1.102-6.732 inch)
- Outer Diameter D1: 90-533 mm (3.543-20.984 inch)
- Total Length Lx: 84-375 mm (3.307-14.764 inch)
- Torque TKN: 22-9,600 Nm (16.23-7,080.6 ft·lb)
Product Characteristics
Your Advantages
The torsionally soft RINGFEDER® Tyre Coupling from the RLT series offers reliable protection against vibrations and shock loads and effectively compensates for angular, parallel and axial misalignments (up to 4°, 6 mm, 8 mm). Thanks to its flexible tire, it enables quick replacement without moving the machines - without any lubrication or time-consuming maintenance.
Ideal for use in pumps, fans, conveyor systems and compressors at ambient temperatures of up to 70 °C. Optionally available with Spacer (SB) for simplified servicing.
Tyre Couplings of the RINGFEDER® RLT series are particularly convincing due to the following features:
- Low maintenance
- Trosionally soft
- Easy assembly and disassembly
- High misalignment tolerance
- Bore diameter dx up to 190 mm (7.48 inch)
- Outer diameter D1 up to 628 mm (24.724 inch)
- Torque range TKN up to 42,740 Nm (31,523.41 ft·lb)
Main Areas of Use
- Pump Drives
- Fans and Blowers
- Conveyor Systems
- Compressors
- General Industrial Machinery
Technical Information
Moreover, please observe the detailed selection and operating criteria in the documents RINGFEDER® Product Guide and Tech Paper Tyre Couplings RINGFEDER® RLT.
