Torsional Highflex Couplings TNR 2424.2 | RINGFEDER®

Double-row torsional highflex RINGFEDER® TNR 2424.2 for flange-shaft connection, flange connecting dimensions acc. to SAE J 620 d. In mind of X1 easy replacement of the elastic buffers without axial movement of the coupled machines.

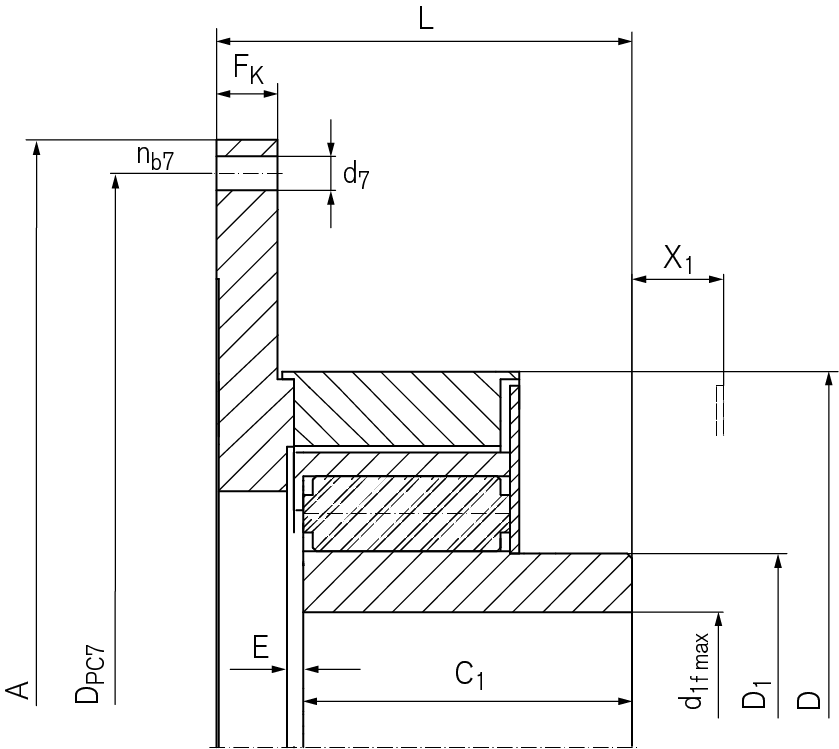

Technical Data & CAD Models

Download of CAD data is available to you after login via your personal user account. You do not have a user account yet? Please register here.

CAD
Size
d1f max
mm
SAE Size
A
mm
DPC7
mm
d7
mm
D
mm
C1
mm
L
mm
FK
mm
X1
mm
Gwub
kg
160.2 - 06.5 50 6,5 215,9 200,0 9,5 160 65 86 15 28 5,0
160.2 - 07.5 50 7,5 241,3 222,3 9,5 160 65 86 15 28 5,3
160.2 - 08.0 50 8,0 263,5 244,5 11,0 160 65 86 15 28 5,6
160.2 - 10.0 50 10,0 314,3 295,3 11,0 160 65 86 15 28 6,5
200.2 - 07.5 70 7,5 222,3 213,3 9,5 200 90 115 18 23 10,1
200.2 - 08.0 70 8,0 263,5 244,5 11,0 200 90 115 18 23 10,5
200.2 - 10.0 70 10,0 314,3 295,3 11,0 200 90 115 18 23 11,6
200.2 - 11.5 70 11,5 352,4 333,7 11,0 200 90 115 18 23 12,5
260.2 - 10.0 90 10,0 314,3 295,3 11,0 260 115 147 24 28 21,9
260.2 - 11.5 90 11,5 352,4 333,7 11,0 260 115 147 24 28 23,2
260.2 - 14.0 90 14,0 466,7 438,2 14,5 260 115 147 24 28 27,3
260.2 - 16.0 90 16,0 517,5 489,0 14,5 260 115 147 24 28 29,7
320.2 - 14.0 115 14,0 466,7 438,2 14,5 320 140 177 26 39 47,4
320.2 - 16.0 115 16,0 517,5 489,0 14,5 320 140 177 26 39 50,5
320.2 - 18.0 115 18,0 571,5 542,9 18,0 320 140 177 26 39 56,9
400.2 - 16.0 145 16,0 517,5 489,0 14,5 400 175 216 31 51 83,4
400.2 - 18.0 145 18,0 571,5 542,9 18,0 400 175 216 31 51 87,1
400.2 - 21.0 145 21,0 673,1 641,4 18,0 400 175 216 31 51 94,7
400.2 - 24.0 145 24,0 733,4 692,2 22,0 400 175 216 31 51 99,2
500.2 - 21.0 185 21,0 673,1 641,4 18,0 500 230 276 34 52 172,0
500.2 - 24.0 185 24,0 733,4 692,2 22,0 500 230 276 34 52 176,0
640.2 - 24.0 230 24,0 733,4 692,2 22,0 640 300 360 45 60 340,0
CAD Size
d1f max
inch
SAE Size
A
inch
DPC7
inch
d7
inch
D
inch
C1
inch
L
inch
FK
inch
X1
inch
Gwub
lbs
  160.2 - 06.5 1.969 6.5 8.500 7.875 0.374 6.299 2.559 3.386 0.591 1.102 11.0
  160.2 - 07.5 1.969 7.5 9.500 8.752 0.374 6.299 2.559 3.386 0.591 1.102 11.7
  160.2 - 08.0 1.969 8.0 10.374 9.625 0.433 6.299 2.559 3.386 0.591 1.102 12.4
  160.2 - 10.0 1.969 10.0 12.375 11.625 0.433 6.299 2.559 3.386 0.591 1.102 14.3
  200.2 - 07.5 2.756 7.5 8.750 8.398 0.374 7.874 3.543 4.528 0.709 0.906 22.3
  200.2 - 08.0 2.756 8.0 10.374 9.625 0.433 7.874 3.543 4.528 0.709 0.906 23.2
  200.2 - 10.0 2.756 10.0 12.375 11.625 0.433 7.874 3.543 4.528 0.709 0.906 25.5
  200.2 - 11.5 2.756 11.5 13.875 13.139 0.433 7.874 3.543 4.528 0.709 0.906 27.5
  260.2 - 10.0 3.543 10.0 12.375 11.625 0.433 10.236 4.528 5.787 0.945 1.102 48.4
  260.2 - 11.5 3.543 11.5 13.875 13.139 0.433 10.236 4.528 5.787 0.945 1.102 51.1
  260.2 - 14.0 3.543 14.0 18.375 17.250 0.571 10.236 4.528 5.787 0.945 1.102 60.1
  260.2 - 16.0 3.543 16.0 20.375 19.252 0.571 10.236 4.528 5.787 0.945 1.102 65.4
  320.2 - 14.0 4.528 14.0 18.375 17.250 0.571 12.598 5.512 6.968 1.024 1.535 104.5
  320.2 - 16.0 4.528 16.0 20.375 19.252 0.571 12.598 5.512 6.968 1.024 1.535 111.2
  320.2 - 18.0 4.528 18.0 22.501 21.374 0.709 12.598 5.512 6.968 1.024 1.535 125.4
  400.2 - 16.0 5.709 16.0 20.375 19.252 0.571 15.748 6.890 8.504 1.220 2.008 183.9
  400.2 - 18.0 5.709 18.0 22.501 21.374 0.709 15.748 6.890 8.504 1.220 2.008 192.0
  400.2 - 21.0 5.709 21.0 26.500 25.252 0.709 15.748 6.890 8.504 1.220 2.008 208.9
  400.2 - 24.0 5.709 24.0 28.875 27.252 0.866 15.748 6.890 8.504 1.220 2.008 218.7
  500.2 - 21.0 7.283 21.0 26.500 25.252 0.709 19.685 9.055 10.866 1.339 2.047 379.2
  500.2 - 24.0 7.283 24.0 28.875 27.252 0.866 19.685 9.055 10.866 1.339 2.047 388.0
  640.2 - 24.0 9.055 24.0 28.875 27.252 0.866 25.197 11.811 14.173 1.772 2.362 749.6

Product Characteristics

RINGFEDER® TNR

The RINGFEDER® TNR coupling has specifically been designed and optimized for use primarily in internal combustion engines. In such applications, dynamic disturbances are caused by periodic excitation and utilization of a large speed range. It is therefore necessary to shift unavoidable resonances by deliberately adjusting the stiffness.

The new RINGFEDER® TNR – a compact, plug-in configuration, optionally available as puncture-proof or not fail-safe design, and dynamically adjustable over a wide temperature range.

Key data:

  • Dynamic stiffness: elastic to highly elastic transmission capability
  • Torque [Nm]: 144 to 9600
  • Speed [rpm]: 1200 to 4750
  • Temperature range: -50°C to +230°C

Every drive line has its characteristic torsional vibration behaviour and the newly developed coupling RINGFEDER TNR ensures optimum tuning of the dynamic stiffness to suit any application.

Properties/Benefits

  • Purposeful adjustment of the dynamic properties by varying the elastomeric buffers
  • Not fail safe, but can be made puncture-proof by simple modification
  • Very compact design allows installation in confined spaces
  • Easy replacement of wear parts without having to remove the hubs or flanges
  • On account of the modular construction system, even custom solutions can be realized at low cost
  • Cost-neutral adaptation of the stiffness, also for individual projects.
