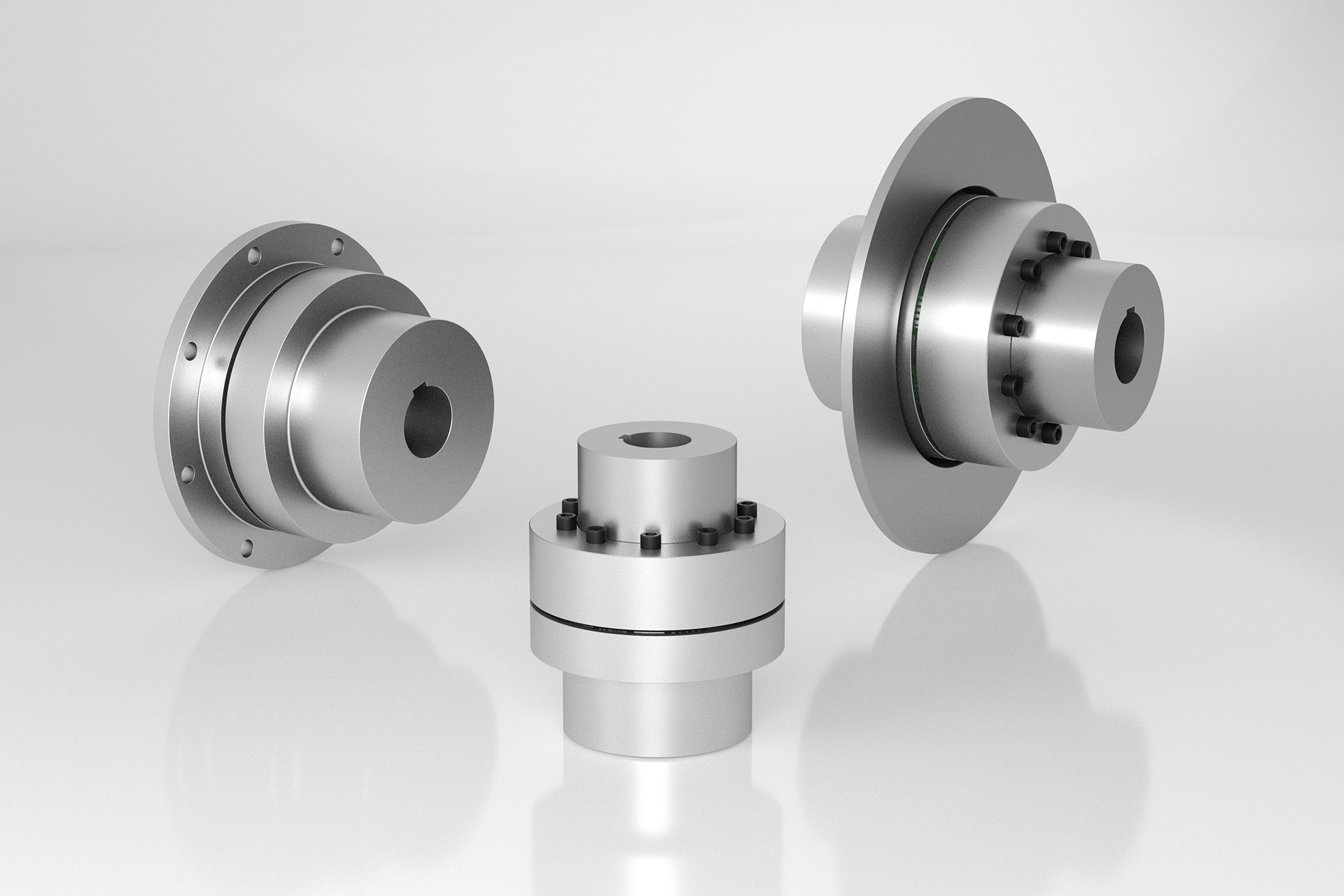

Elastomer Jaw Couplings TNM
Vibration damping, rotationally resilient, fail-safe, misalignment compensating: Elastomer Jaw Couplings of the RINGFEDER® TNM series – previously TSCHAN® TNM and NOR-MEX® – set standards worldwide in terms of flexibility, cost-effectiveness and performance. The universally applicable couplings compensate for shaft misalignments in all directions and allow for critical torsional vibrations from the operating range of plant machinery to be shifted to areas where no adverse effects on the drive train occur. The torque is transmitted via pressure-loaded elastomers made of high-quality Perbunan, which are joined to form a shock- and vibration-damping intermediate ring that is oil-resistant and electrically conductive. These highly durable intermediate rings, which are quick and easy to replace, especially in the case of multi-part coupling designs, are provided in different material hardnesses – depending on customer requirements and application-specific needs. The axially pluggable RINGFEDER® Elastomer Couplings of the TNM series can be used in a temperature range from -30 °C to +100 °C as well as in any installation position and direction of rotation. Thanks to their modular design, they are available to users as standard in a superior range of sizes and variants, e.g. in single- and multi-part versions or with integrated brake disc or drum, as well as highly customized special solutions.
Your Contact to Us
You like to have specific questions, require technical support or you are interested in a customized solution? Our experts in Engineering and Sales are more than happy to assist you. We look forward to your inquiry! Because excellent solutions always start with excellent guidance.
Contact us quickly and easily via our request form, by e-mail or telephone, or also using the "Need Help?" feature at the bottom right of this site.
Elastomer Jaw Couplings TNM

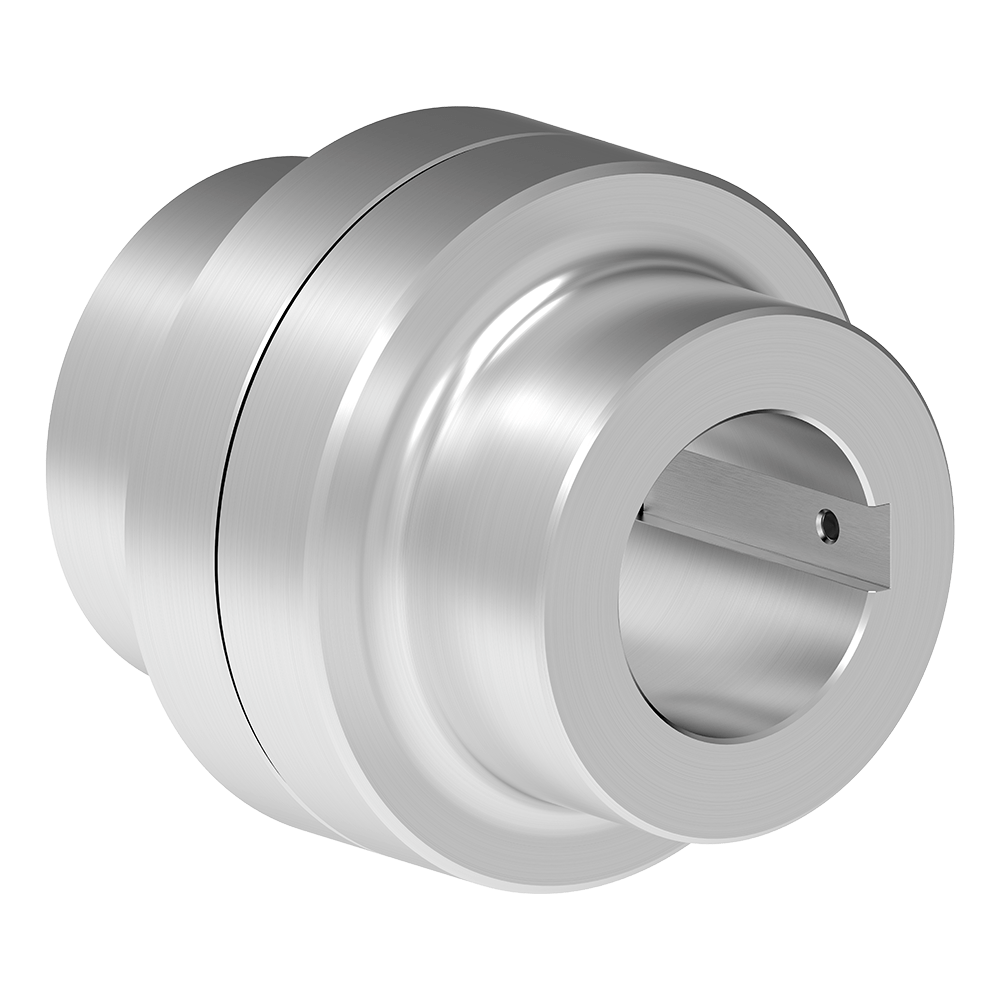

TNM E
Simple Type with Two Single-Part Coupling Hubs
- 18 Sizes
- Max. Bore Diameter
d1: 19-230 mm; d2: 19-230 mm - Outer Diameter: D1: 50-575 mm
- Overall Length L: 52-488 mm
- Rot. Speed nmax: 1,200-12,500
1/min - Torque
TKN Pb72: 13-27,000 Nm;
TKN Pb82: 20-41,000 Nm

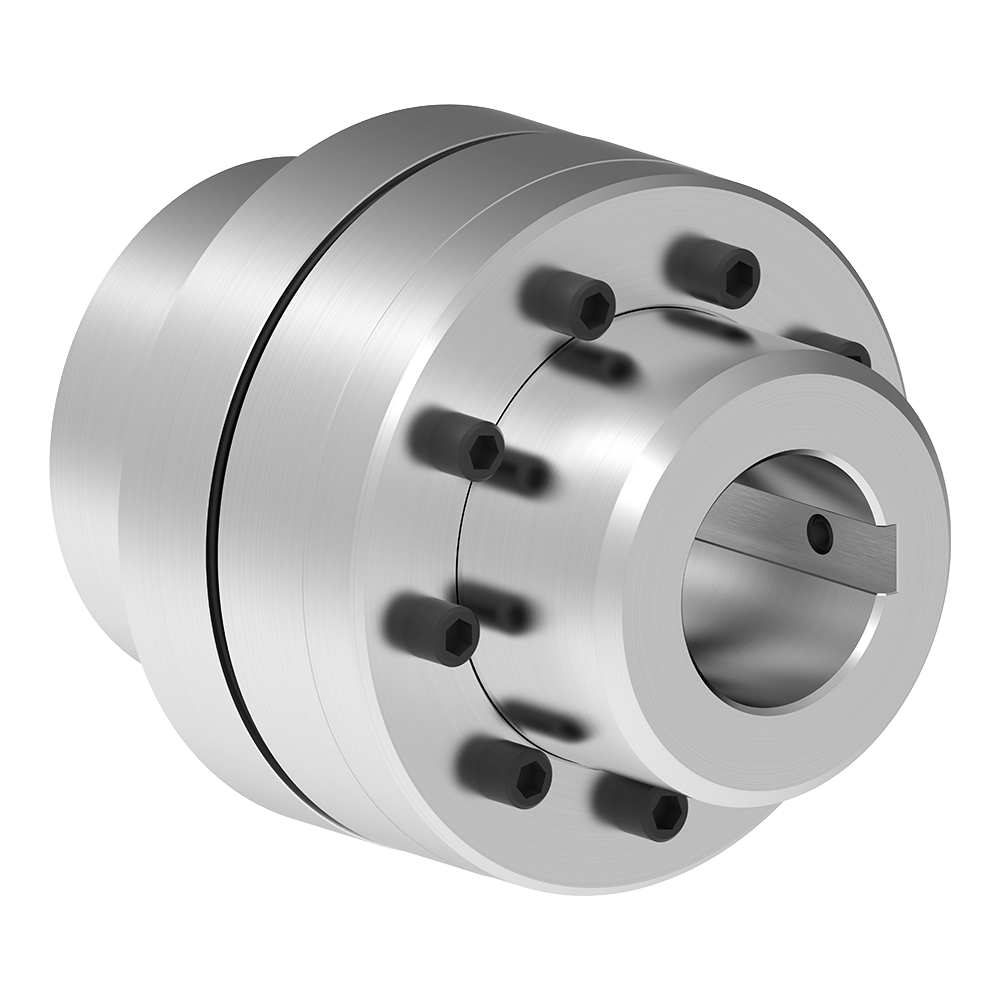

TNM G
Type with One Single-Part and One Multi-Part Coupling Hub
- 16 Sizes
- Max. Bore Diameter
d1: 32-230 mm; d2: 32-260 mm - Outer Diameter: D1: 82-575 mm
- Overall Length L: 92-525 mm
- Rot. Speed nmax: 1,200-8,000
1/min - Torque
TKN Pb72: 48-27,000 Nm;
TKN Pb82: 75-41,000 Nm

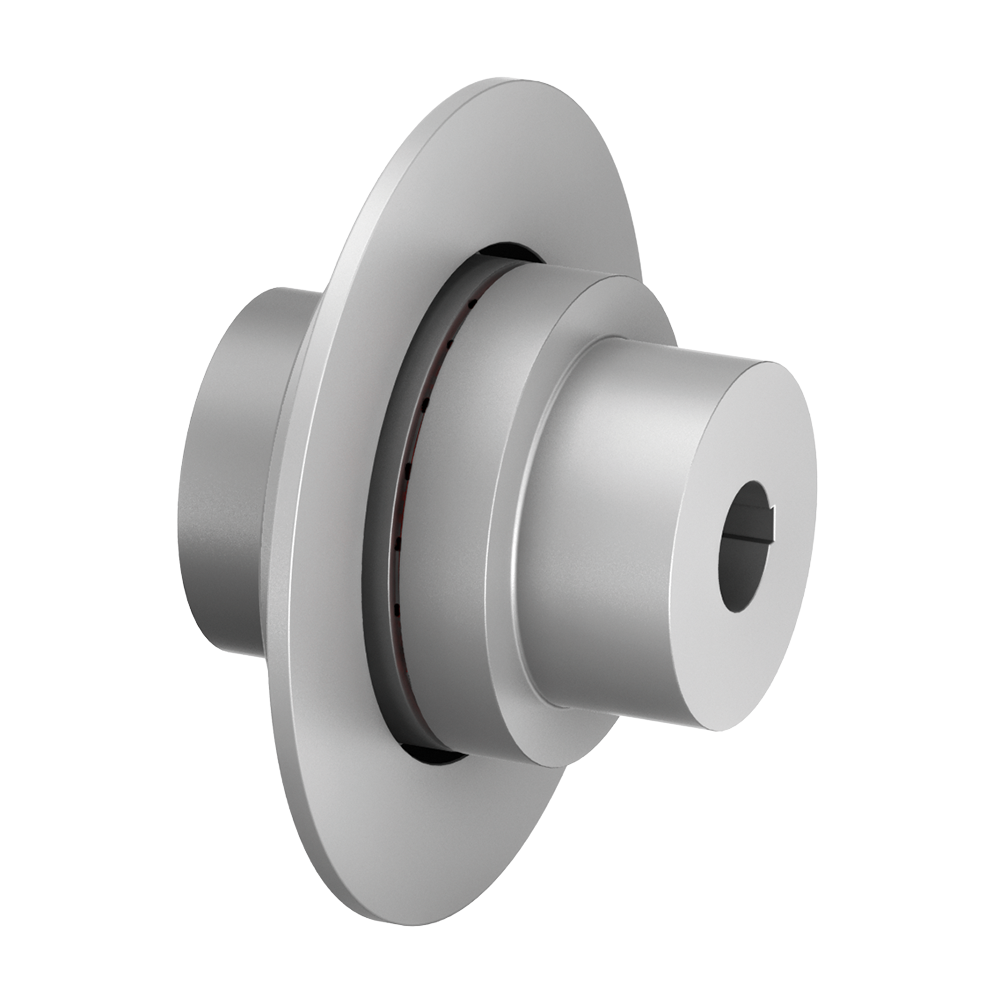

TNM ETW
Type with Two Single-Part Coupling Hubs and Brake Disc
- 24 Sizes
- Max. Bore Diameter
d1: 42-185 mm; d2: 48-190 mm - Outer Diameter: D1: 112-415 mm
- Overall Length L: 123.5-408 mm
- Rot. Speed nmax: 1,255-4,580
1/min - Torque
TKN Pb72: 150-13,200 Nm;
TKN Pb82: 230-16,000 Nm

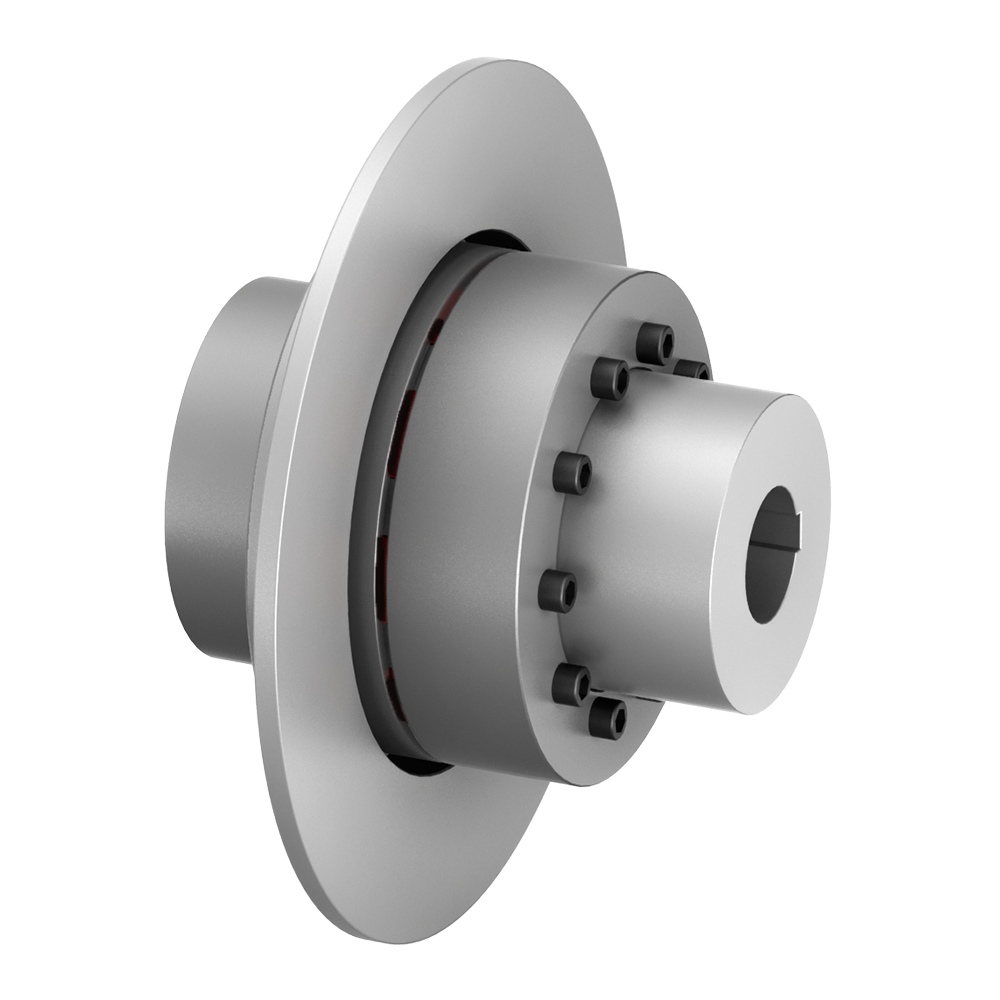

TNM GTW
Type with One Single-Part and One Multi-Part Coupling Hub, incl. Brake Disc
- 24 Sizes
- Max. Bore Diameter
d1: 42-185 mm; d2: 46-180 mm - Outer Diameter: D1: 112-415 mm
- Overall Length L: 133-441 mm
- Rot. Speed nmax: 1,255-4,580 1/min
- Torque
TKN Pb72: 150-13,200 Nm;
TKN Pb82: 230-20,500 Nm

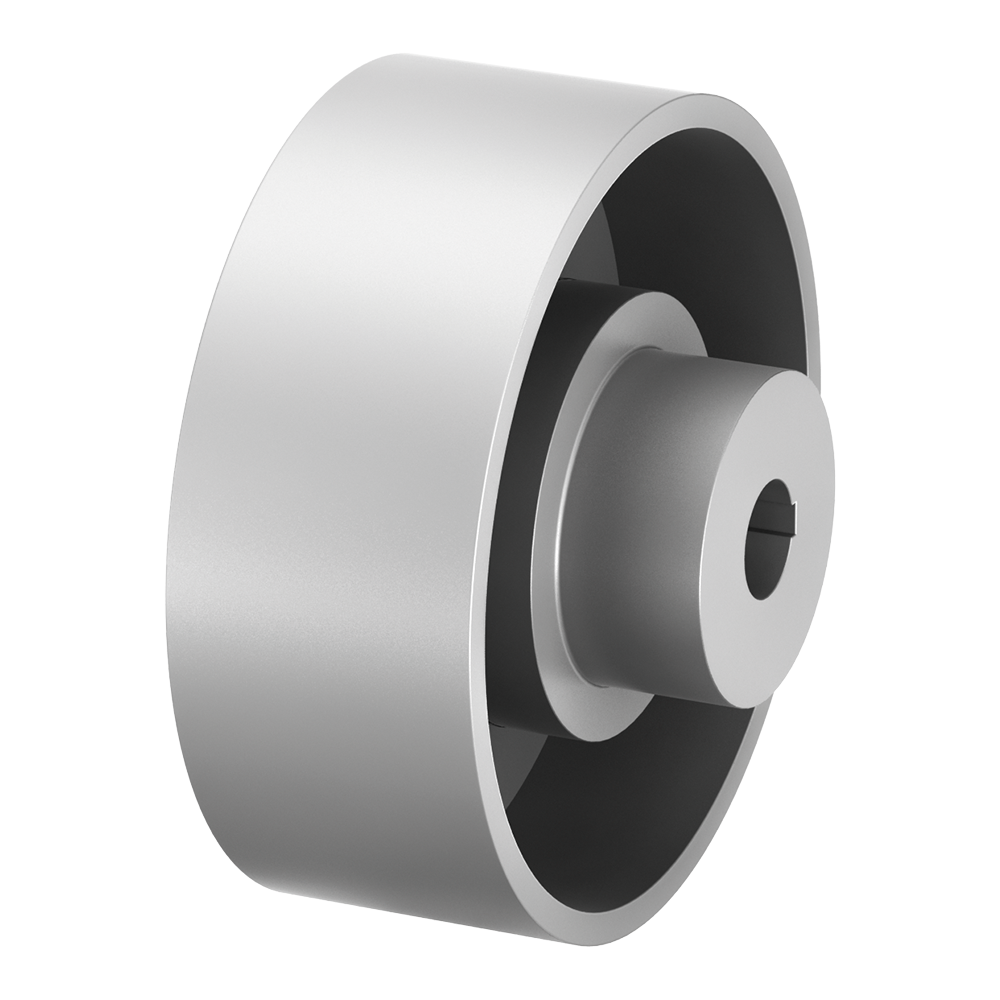

TNM EBT
Type with Two Single-Part Coupling Hubs and Brake Drum
- 17 Sizes
- Max. Bore Diameter
d1: 42-185 mm; d2: 48-190 mm - Outer Diameter: D1: 112-415 mm
- Overall Length L: 123.5-408 mm
- Rot. Speed nmax: 1,200-4,200 1/min
- Torque
TKN Pb72: 150-13,200 Nm;
TKN Pb82: 230-20,500 Nm
TNM GBT
Type with One Single-Part and One Multi-Part Coupling Hub, incl. Brake Drum
- 17 Sizes
- Max. Bore Diameter
d1: 42-185 mm; d2: 46-180 mm - Outer Diameter: D1: 112-415 mm
- Overall Length L: 133-441 mm
- Rot. Speed nmax: 1,200-4,200 1/min
- Torque
TKN Pb72: 150-13,200 Nm;
TKN Pb82: 230-20,500 Nm

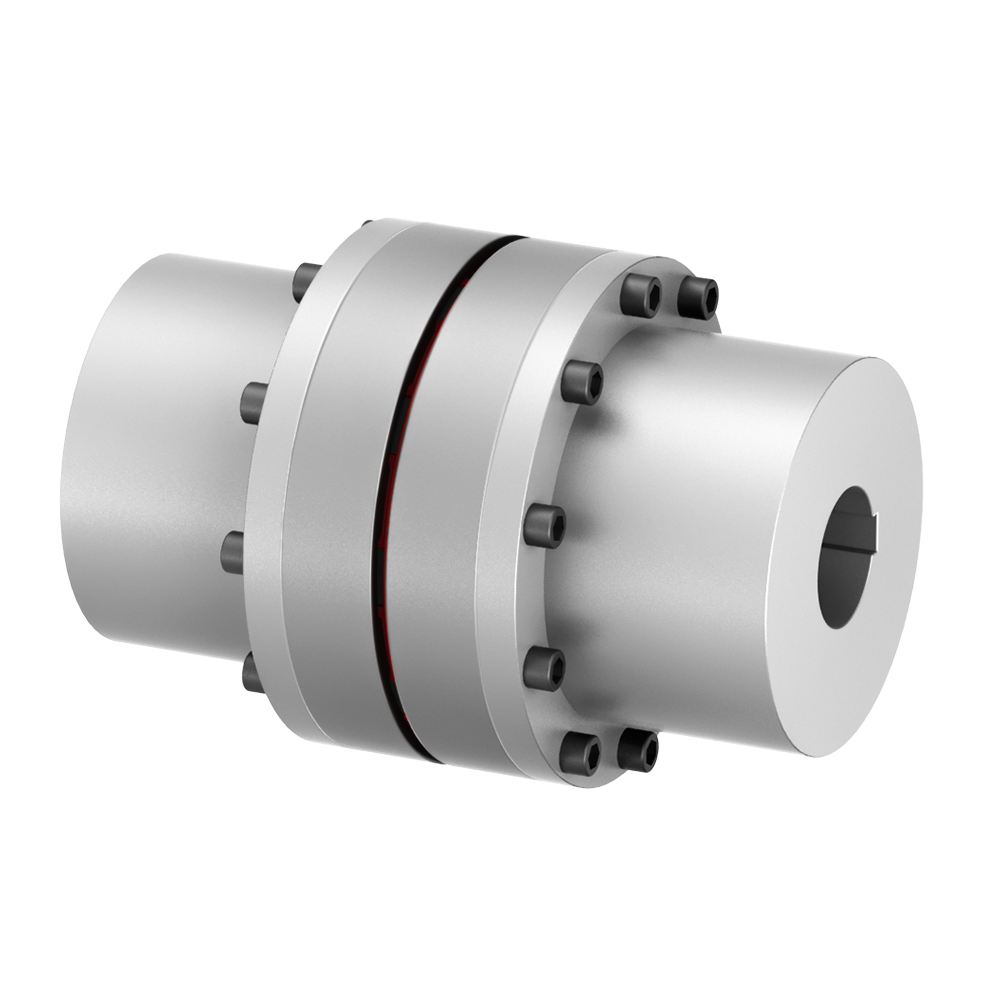

TNM H
Type with Multi-Part Coupling Hubs and Radially Removeable Intermediate Sleeve
- 44 Sizes
- Max. Bore Diameter
d1: 30-150 mm; d2: 30-150 mm - Outer Diameter: D1: 67-330 mm
- Overall Length L: 160-570 mm
- Rot. Speed nmax: 2,000-10,000 1/min
- Torque
TKN Pb72: 22-6,400 Nm;
TKN Pb82: 35-9,900 Nm

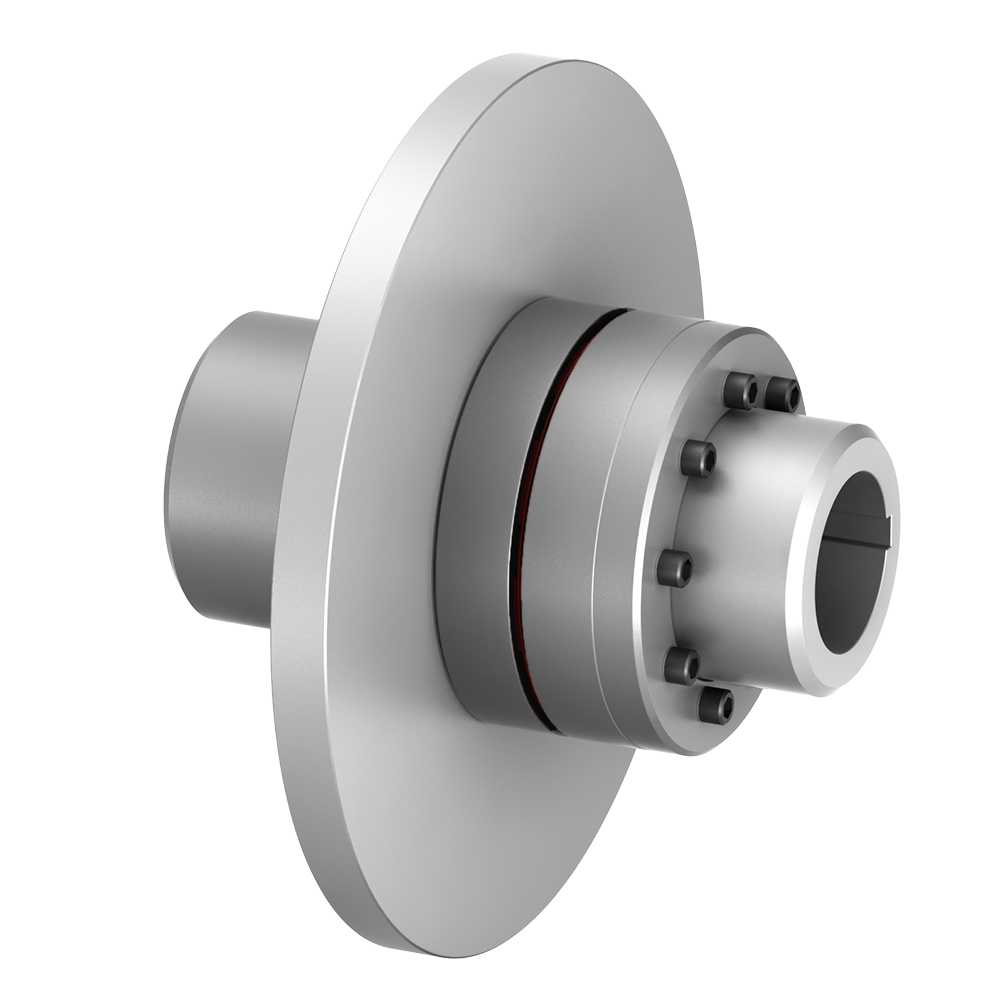

TNM GHBS
Type with One Single-Part and One Multi-Part Coupling Hub, incl. Brake Disc
- 14 Sizes
- Max. Bore Diameter
d1: 65-130 mm; d2: 65-135 mm - Outer Diameter: D1: 148-295 mm
- Overall Length L: 286.5-396.5 mm
- Rot. Speed nmax: 2,250-4,500 1/min
- Torque
TKN Pb72: 390-4,900 Nm;
TKN Pb82: 600-7,550 Nm

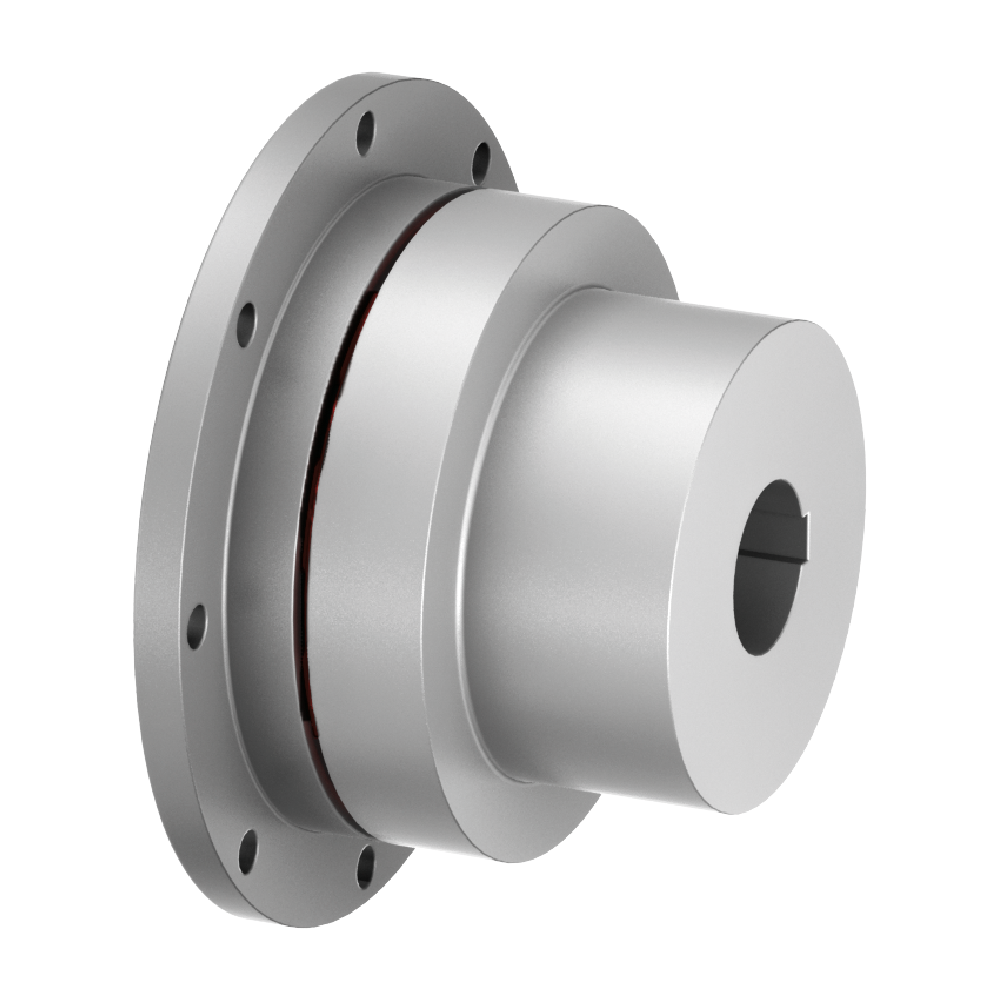

TNM LE
Type with One Single-Part Coupling Hub and Screw-On Flange
TNM LG
Type with One Multi-Part Coupling Hub and Screw-On Flange
