These shock absorbing units are repeatedly resilient and are supplied ready for assembly and incl. screw.

DEFORM plus® R

CAD
Typ
Wmax(20°C)/6h
Joule
Wmax(20°C)/1h
Joule
Fdyn(20°C) ~ 2xFstat(20°C)
kN
smax
mm
D'
mm
D1.
mm
DB
mm
L
mm
DG
mm

tE


mm
Gw
kg
R45 240 15 (bei 1,4 m/s) 27 68 45 54 8 17 0,085
R60 560 30 (bei 2,0 m/s) 36 91 60 72 12 17 0,240
R45MP 180 20 (bei 1,4 m/s) 19 65 45 57 63 12 25 0,160
R60MP 420 40 (bei 2,0 m/s) 25 90 60 71 85 16 22 0,360
CAD Typ
Wmax(20°C)/6h
ft-lbs
Wmax(20°C)/1h
ft-lbs
Fdyn(20°C) ~ 2xFstat(20°C)
lbs
smax
inch
D'
inch
D1.
inch
DB
inch
L
inch
DG
mm

tE


inch
Gw
lbs
  R45 177 3,371 1.063 2.677 1.772 2.126 8 0.669 0.187
  R60 413 6,742 1.417 3.583 2.362 2.835 12 0.669 0.529
  R45MP 133 4,495 0.748 2.559 1.772 2.244 2.480 12 0.984 0.353
  R60MP 310 8,989 0.984 3.543 2.362 2.795 3.346 16 0.866 0.794

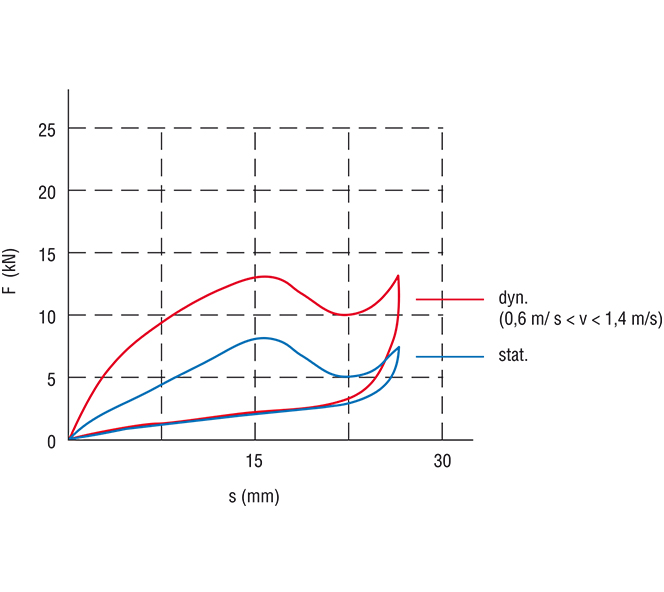

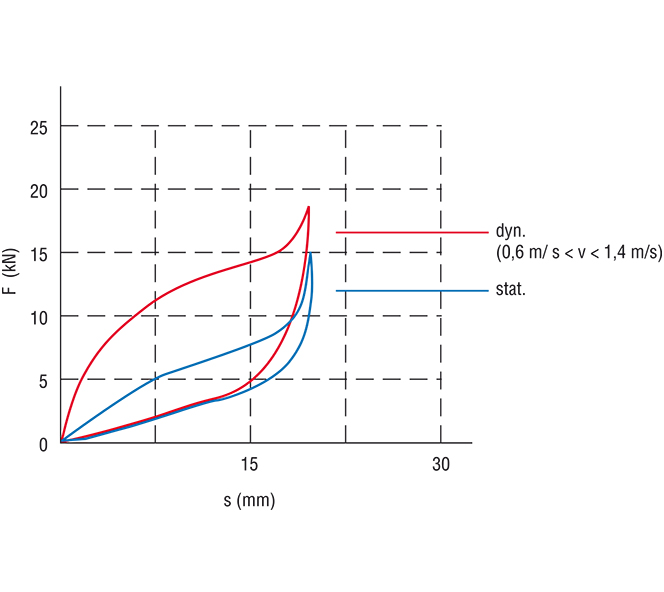

Characteristics

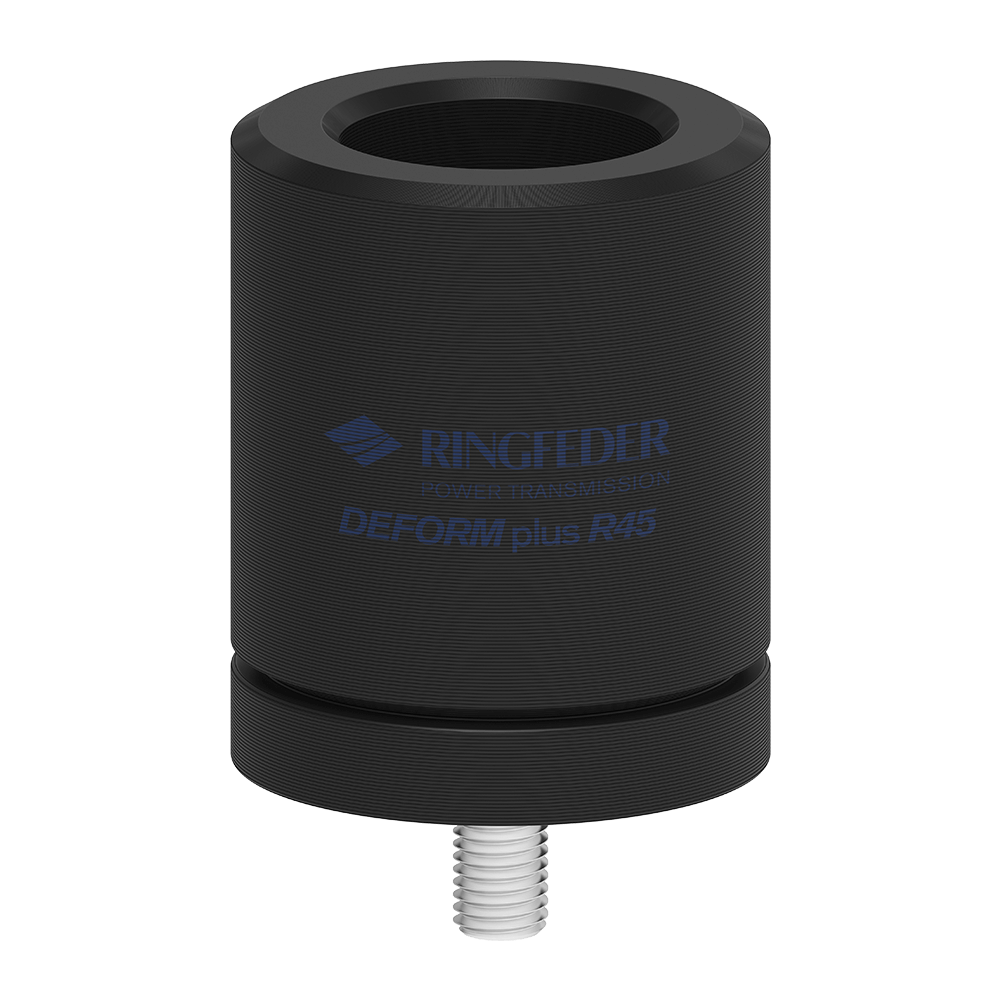

SHOCK ABSORBING Elements DEFORM plus® R/RMP

Reusable buffer for absorption of kinetic energies without additional spring.

The casing combines the function of a spring and a damper. It can be reused after a dynamic load. Dependent on the velocity, the maximum supporting load automatically adapts to the impact energy, which means that i.e. equal masses are retarded more softly at lower velocities.

Working temperature: -10°C up to +50°C.

Ambient conditions:

The material is resistant to

  • Bleach liquor 3%
  • Sugar solution 30%
  • Hydrogen peroxide 10%
  • Ammonia 5%
  • Acetic acid 2%
  • Formic acid 2%
  • Linseed fatty acid
  • Tannic acid solution 20%
  • Lubrication grease and oil

A continuous contact with water should be avoided. In accordance with DIN 4012, building material class 2, the material is classified as non-combustible, dripping (off).
